RVD Round Vacuum Dryer

Description:

RVD Round Vacuum Dryer heats the material in a round shape chamber for drying under vacuum condition. If a vacuum pump is used for air evacuation and moisture exhaustion, drying efficiency is highly increased.
If a condenser is used, the solvent in the material can be recycled by the condenser. If the water circulation vacuum pump is used, there is no need to use the condenser, so energy can be saved.

Working Principle:

Vacuum drying means to heat the material to be dried under vacuum condition.
If a vacuum pump is used for air evacuation and moisture exhaustion, drying speed will increase.
If a condenser is used, the solvent in the material can be recycled by the condenser. If SK series water ring vacuum pump is used, there is no need to use the condenser, so that energy can be saved.

Specifications:



Model	RVD-600	RVD-800	RVD-1000	RVD-1400
Interlayer Distance [mm]	81	82	102	102
Drying Frame layer Quantity	4	4	6	8
Drying Discs Quantity	4	8	12	32
Drying Discs Size [mm]	310x600x45	520x410x45	520x410x45	460x640x45
Drying Frame Pipe Pressure	≤0.784	≤0.784	≤0.784	≤0.784
Drying Frame Temperature [°C]	35-150	35-150	35-150	35-150
Vacuum Degree	- 0.1	- 0.1	- 0.1	- 0.1
Water Vaporization	7.2	7.2	7.2	7.2
Condenser Adopted Vacuum Pump Power [kW]	2	3	3	5.5
No Condenser Adopted Vacuum Pump Power [kW]	1.5	2.2	2.2	2.2
Machine Weight [kg]	250	600	800	1400
Inside Dimensions[mm]	Ø600x976	Ø800x1247	Ø1000x1527	Ø1400x2054
Outside Dimensions[mm]	1135x810x1020	1700x1045x1335	1693x1190x1500	2380x1675x1920





Product Picture:

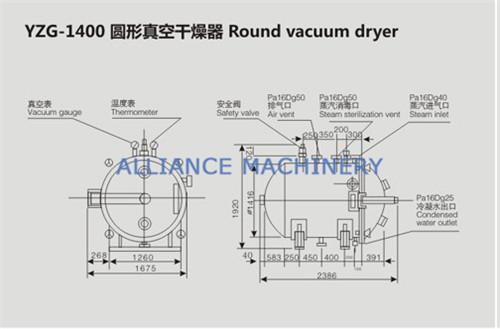

RVD Round Vacuum Dryer mechanical schematic drawing

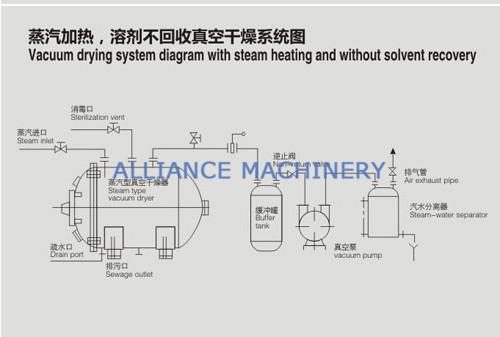

RVD Round Vacuum Dryer P&ID Diagram

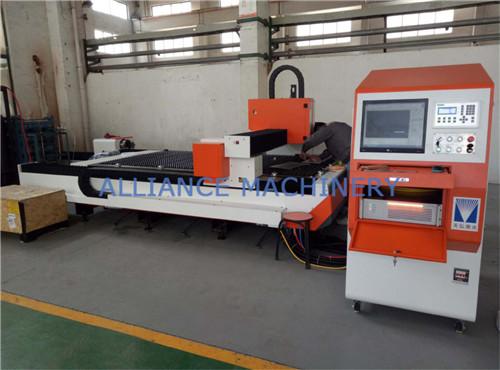

Production workshop
