CP Centrifugal Pelletizer


Description:

CP Centrifugal Pelletizer is mainly used in powder layering to manufacturing pellets. Material under the effect of centrifugal force, friction forces, and ring gap gas buoyancy mix and bounded with atomized liquid. Then it aggregates to finish core forming, pellets enlarging, spheronization and coating. It consists of the container, rotates the plate, liquid supply system, powder supply system, control system, pneumatic system, heat system and dedusting system. It is widely used in pharmaceutical, food and chemical industry.


Features:

PLC and HMI control with half automatic operation program and upgrade function.
Control and operation separating electrical control system with good explosion-proof function.
Clean guns, dust blowguns and dewater device which easy to wash.
The mechanical ascending device, less error, easy to clean and maintain.
Screw atomizing spray guns, high pelletization and coating efficient.
The air discharges after reaches the standard. air purify accuracy according to GMP2010 edition.
Primary cyclone dust catchier, secondary bag dust catchier or pulse back blow filter cartridge dust catchier.

Specifications:


Model	CP-300	CP-500	CP-700	CP-1000	CP-1400
Core Input [kg/batch]	0.2	1	2~3	5~10	10~15
Pelletizing Output [kg/batch]	2	5	10~25	40~100	100~200
Pelletizing Time [min/batch]	30~90
Spheronization Capacity [kg/batch]	0.2~0.8	1~3	6~8	-	-
Spheronization Time [min/batch]	3~8	3~8	3~6	-	-
Pellet Diameter	0.25~2.5
Max. Enlargement Factor [K=D/d]	≤ 2.7
Plate Diameter [mm]	300	500	700	1000	1400
Pelletization Plate Max Speed  [rpm]	600	350	250	190	120
Spheronization PlateMax Speed  [rpm]	1400	1100	900	-	-
Rotate Plate Power  [kW]	1.1	4	4	7.5	11
Feed Motor Power  [kW]	0.18	0.18	0.37	0.37	0.37
Liquid Supply Motor Power [kW]	0.04	0.25	0.25	0.25	0.25
Liquid Mixing Motor Power [kW]	-	-	0.04	0.06	0.1
Blower Motor Power  [kW]	0.55	1.5	4	4	7.5
Dusting Motor Power [kW]	0.4	1.3	1.1	2.2	3
Electricity Heating Power (Option) [kW]	1.5	3	4	4	6
Air Temperature Range [°C]	Room temperature~100
Air Pressure [MPa]	0.4~0.6
Compressed Air Consumption [m³/min]	> 0.20	> 0.25	> 0.32	> 0.65	> 0.84
Max Air Volume [m³/min]	100	150	330	330	550
Air Pressure [KPa]	12	20	33	33	43
Machine Weight [kg]	450	650	1000	1500	3000
Dimensions [mm]	1100x700 x1400	1100x800 x1540	3400x1510 x1780	3700x1890 x1830	4000x1600 x2300

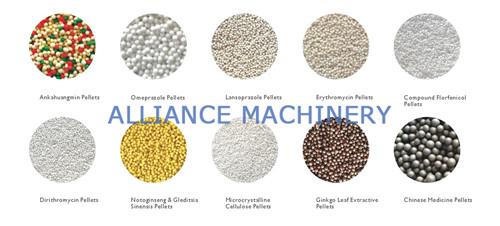

Product Photo:
