CHSM RMG Rapid Mixer and Granulator 75-800L Pharmaceutical Granulation Equipments Compact High Shear Mixer
CHSM RMG Rapid Mixer and Granulator 75-800L Pharmaceutical Granulation Equipments Compact High Shear Mixer

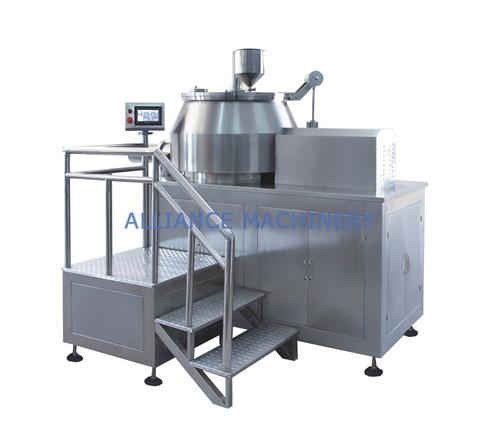

CHSM Compact High Shear Mixer
Description:
CHSM Compact High Shear Mixer is a compact design machine in solid dosage mass production for mixing granules/powders and wet granulation. It is also widely used in food, chemical industries for similar purposes.
Features:
End-point process control
Traceability and repeatability
GMP compliant for pharmaceutical production
Options:
Auto raw materials feeding
Auto solution feeding
Jacketed bowl
Explosion-proof
WIP wash-in-place setup
Specifications:
| Model | Machine Dimensions [mm] | Bowl Volume [L] | Load Coefficient | Capacity [kg] | Impeller Speed [rpm] | Cutter Speed [rpm] |
| CHSM75 | 2300x850x1800 | 75 | 0.4~0.8 | 15~30 | 5.5 | 3 |
| CHSM100 | 2550x970x2220 | 100 | 0.4~0.8 | 20~40 | 11 | 4 |
| CHSM150 | 2750x970x2400 | 150 | 0.4~0.8 | 30~60 | 15 | 5.5 |
| CHSM200 | 2750x970x2460 | 200 | 0.4~0.8 | 40~80 | 15 | 5.5 |
| CHSM300 | 2950x970x2650 | 300 | 0.4~0.8 | 60~120 | 18.5 | 7.5 |
| CHSM400 | 3000x1220x2700 | 400 | 0.4~0.8 | 80~160 | 22 | 7.5 |
| CHSM500 | 3000x1220x2950 | 500 | 0.4~0.8 | 100~200 | 30 | 11 |
| CHSM600 | 3000x1220x3100 | 600 | 0.4~0.8 | 120~240 | 37 | 11 |
| CHSM800 | 3200x1300x3250 | 800 | 0.4~0.8 | 160~320 | 45 | 15 |
