LFB Laboratory Fluid-bed
Description:
LFB Laboratory Fluid-bed is mainly used for drying granules in the pharmaceutical R&D and pilot scale production. The machine has top spray granulating, bottom spray coating functions. It is also widely used in food, chemical industries for similar purposes.
Features:
Plug & play
Mobility with four casters
Changeable bowl for smaller batch run
Filter leakage detect
End-point process control
Repeatability and traceability
GMP compliant for pharmaceutical production
Options:
Top spray
Bottom spray
Process air dehumidification
SCHLICK spray gun
Watson Marlow peristaltic pump
CFR 21 Part 11 compliant data collection system
Specifications:
| Model | LFB0.2 | LFB0.5 | LFB1 | LFB2 | LFB3 | LFB5 | |
|
Bowl Volume [L] |
Top Spray | 1.25 | 3 | 5.6 | 5.8 | 9 | 20 |
| Bottom Spray | 1.25 | 3 | 14 | 16 | 9 | 42.5 | |
| Tangential Spray | - | - | 5.9 | 7 | 8.5 | 15 | |
|
Max Capacity [Kg/batch] |
Top Spray | 0.2 | 0.5 | 1.5 | 2 | 3 | 6 |
| Bottom Spray | 0.2 | 0.3 | 1.2 | 2 | 2 | 2.6 | |
| Tangential Spray | - | - | 1 | 1 | 2 | 2.4 | |
| Compressed Air Pressure [MPa] | 0.4~0.7 | ||||||
|
Compressed Air Consumption [m³/min] |
0.15 | 0.15 | 0.15 | 0.15 | 0.8 | 1 | |
| Electric Heating Power [kW] | 2 | 3 | 4 | 4.5 | 9 | 18 | |
| Hot Air Regulating Range [°C] | Room temperature ~ 120 | ||||||
| Intake Air Filtering | Sub high efficiency filter or HEPA filter | ||||||
| Air Fan Power [kW] | 0.75 | 1.75 | 2.2 | 6 | 4 | 5.5 | |
| Dimensions [mm] |
1000x700 x900 |
1200x855 x1815 |
1600x855 x2220 |
1800x855 x2275 |
1800x855 x2520 |
2550x1100 x2710 |
|
| Machine Weight [kg] | 600 | 650 | 700 | 750 | 800 | 850 | |
Product Picture:

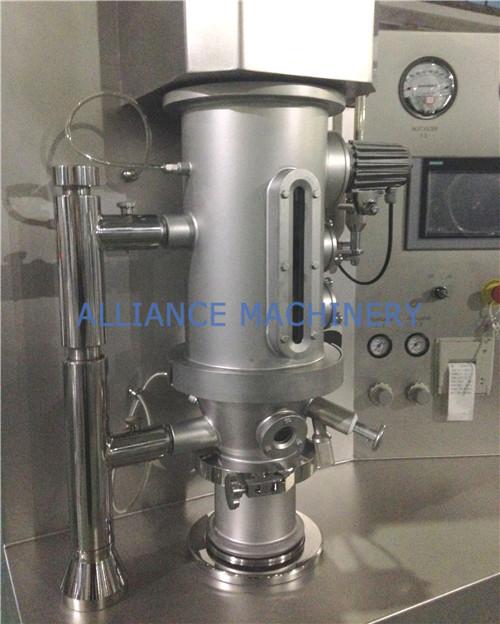

LFB Laboratory Fluid-bed close up look

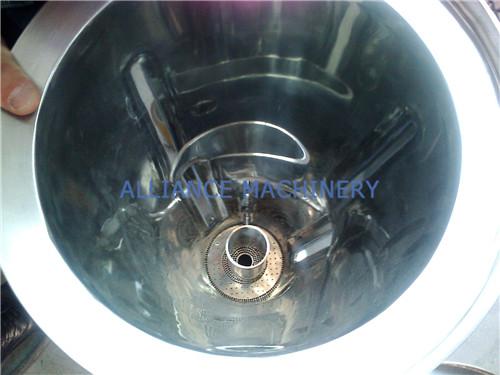

Bottom spray coating function material bowl
