LCM Lifting Cone Mill Fitz Pharmaceutical Milling Equipments Three-blade Mesh Screen Sieve,movable

LCM Lifting Cone Mill

Description:

LCM Lifting Cone Mill is conical mill machine with hydraulic lifting function.

Lifting cone mill is used in pharmaceutical, food, fine chemical processing industries. This machine reaches the world advanced level and conforms to the GMP specification. It is completely made of stainless steel material.

The material to be processed enters into the feed inlet of machine, drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules to the sieve mesh surface by centrifugal force, The granulates are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.

The lifting feature of processing cone offers a very flexible connection in materials receive and discharging. The four-caster easy transportation feature also avails its application in many areas of the plant.

LCM Lifitng Cone Mill is mainly used for milling of raw materials, granulating of wet materials, granulating of dry materials in pharmaceutical, food, fine chemical processing industries.

Features:

Allicable for both dry milling and wet milling
Patented shaft sealing.
Easy replacement of different size mesh sieve.
Easy adjustment of mill blade clearance between sieves.
Low heat emission.
High efficiency and stable running, low noise.
No dead corner, easy washing, GMP compliant design.

Continuous working with low energy consumption
Frequency converter for speed adjust
Product size adjustable

Easy to control granularity.

None dust

Options:

Ex-proof design
Additional size sieves

Vacuum charge unit

Vacuum discharge unit

Specifications:

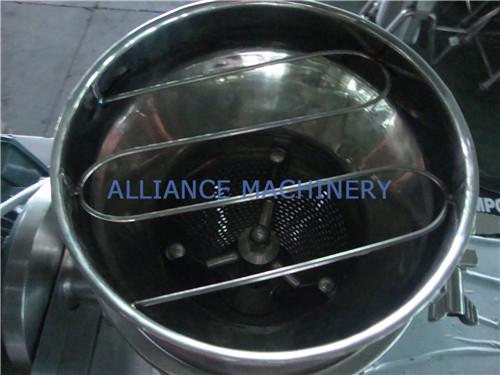

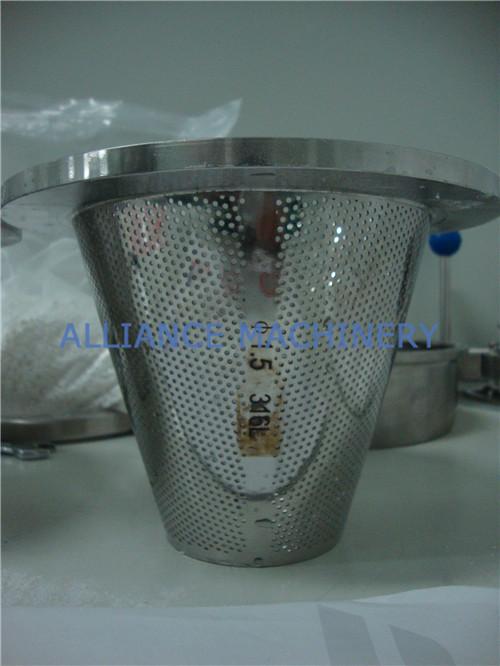

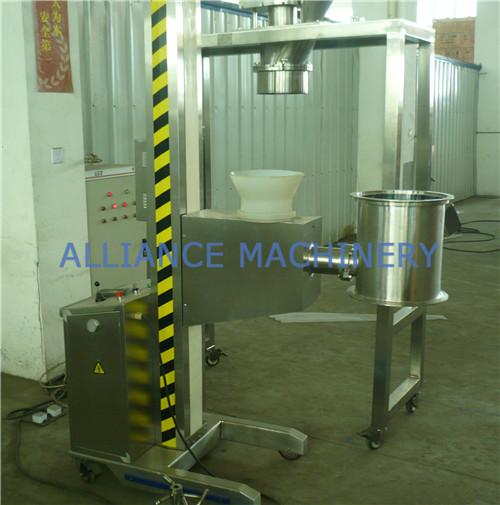

Product Photos:
