FB Blender
Description:
FB Blender is fixed bin blending system for mixing different components of dry powders and granules. The machine is specially designed for mass batch size total mixing, the maximum capacity reaches 10000 liters mixing. It is an ideal machine for total blending powders and granules in pharmaceutical plants, and also widely used in food, chemical industries etc.
Features:
Variable blending speed
Safe auto orientation
Infrared sensor safety isolation
Repeatability and traceability
GMP compliant
Options:
Vacuum/Lifter loading materials
Stainless steel fence isolation
Guarded platform with ladder
21 CFR part 11 compliant control system
Specifications:
| Model | Machine Dimensions [mm] |
Blending Speed [rpm] |
Total Volume [L] |
Load Coefficient |
Net Load [kg] |
Total Power [kW] |
Machine Weight [T] |
||
| Length | Working Width | Working Height | |||||||
| FB200 | 1700 | 1000 | 1810 | 3~20 | 200 | 0.5~0.8 | 100 | 1.1 | 0.5 |
| FB400 | 2000 | 1200 | 2170 | 3~20 | 400 | 0.5~0.8 | 200 | 1.5 | 0.7 |
| FB600 | 2280 | 1300 | 2200 | 3~20 | 600 | 0.5~0.8 | 300 | 2.2 | 0.9 |
| FB800 | 2380 | 1300 | 2380 | 3~20 | 800 | 0.5~0.8 | 400 | 2.2 | 1 |
| FB1000 | 2600 | 1400 | 2550 | 3~20 | 1000 | 0.5~0.8 | 500 | 3 | 1.2 |
| FB1200 | 2900 | 1400 | 2650 | 3~15 | 1200 | 0.5~0.8 | 600 | 4 | 1.4 |
| FB1500 | 3000 | 1400 | 2700 | 3~15 | 1500 | 0.5~0.8 | 750 | 4 | 1.6 |
| FB2000 | 3150 | 1500 | 2900 | 3~12 | 2000 | 0.5~0.8 | 1000 | 5.5 | 2 |
| FB2500 | 3300 | 1500 | 3050 | 3~12 | 2500 | 0.5~0.8 | 1250 | 5.5 | 2.5 |
| FB3000 | 3600 | 1700 | 3500 | 3~12 | 3000 | 0.5~0.8 | 1500 | 7.5 | 2.8 |
| FB4000 | 3800 | 1800 | 3720 | 3~12 | 4000 | 0.5~0.8 | 2000 | 7.5 | 3.2 |
| FB5000 | 4300 | 2000 | 4200 | 3~12 | 5000 | 0.5~0.8 | 2500 | 11 | 3.8 |
| FB6000 | 4400 | 2000 | 4260 | 3~8 | 6000 | 0.5~0.8 | 3000 | 11 | 4.5 |
| FB8000 | 4600 | 2200 | 4350 | 3~8 | 8000 | 0.5~0.8 | 4000 | 15 | 5.2 |
| FB10000 | 4860 | 2200 | 4600 | 3~8 | 10000 | 0.5~0.8 | 5000 | 15 | 6.5 |

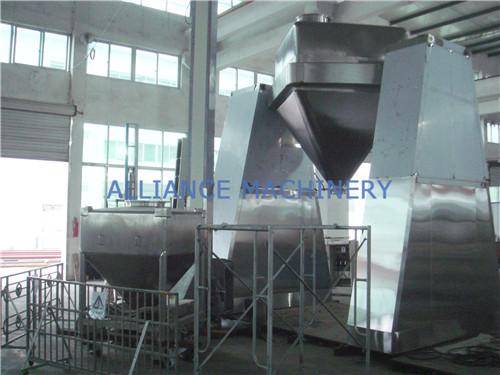

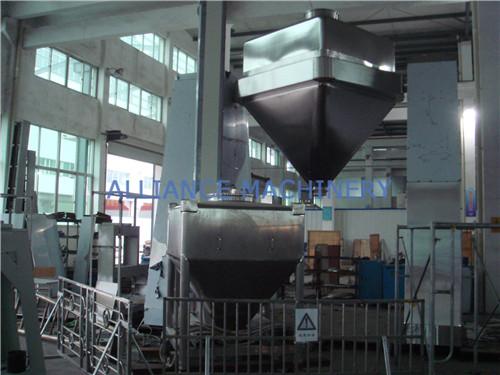

Product Picture:
Fixed Blender FAT
