PB Single Pedestal Column IBC Bin Blender For Food / Chemical Industries Detachable, Lifting Blending
Batch Detachable Mixer PB POST IBC Bin Blender Rectangular Single Pedestal Column
PB POST IBC Blender
Description:
PB Post Bin Blender can automatically execute the whole blending cycle including lifting, clamping, mixing, orienting and lowering.
The bin is detachable from the blender arms, this feature avails one blender to work with more bins of different volumes and meet the demand for diverse batch size blending.
It is an ideal machine for total blending powders and granules in pharmaceutical plants, and also widely used in food, chemical industries etc.
Features:
Small footprint
Closed processing
Variable speed control
Automatic orientation after process
Infrared sensor barrier protection
Traceability and repeatability
Pharmaceutical production GMP compliant
Options:
Customerized capacity blender bin
Stainless steel fence isolation
Elevated dispense level
21 CFR part 11 compliant control system
Specifications:
| Model | Machine Dimensions [mm] |
Blending Speed [rpm] |
Total Volume [L] |
Load Coefficient |
Net Load [kg] |
Total Power [kW] |
Machine Weight [T] |
||
| Length | Working Width | Working Height | |||||||
| PB100 | 2200 | 1300 | 2000 | 3~20 | 100 | 0.5~0.8 | 50 | 2.2 | 0.8 |
| PB200 | 2250 | 1550 | 2100 | 3~20 | 200 | 0.5~0.8 | 100 | 2.6 | 0.9 |
| PB300 | 2500 | 1650 | 2200 | 3~20 | 300 | 0.5~0.8 | 150 | 3 | 1 |
| PB400 | 2650 | 1850 | 2300 | 3~20 | 400 | 0.5~0.8 | 200 | 4.4 | 1.2 |
| PB500 | 2800 | 1950 | 2400 | 3~15 | 500 | 0.5~0.8 | 250 | 4.4 | 1.4 |
| PB600 | 2900 | 2080 | 2400 | 3~15 | 600 | 0.5~0.8 | 300 | 5.2 | 1.7 |
| PB800 | 3000 | 2300 | 2500 | 3~15 | 800 | 0.5~0.8 | 400 | 5.2 | 2 |
| PB1000 | 3150 | 2350 | 2700 | 3~15 | 1000 | 0.5~0.8 | 500 | 6.2 | 2.2 |

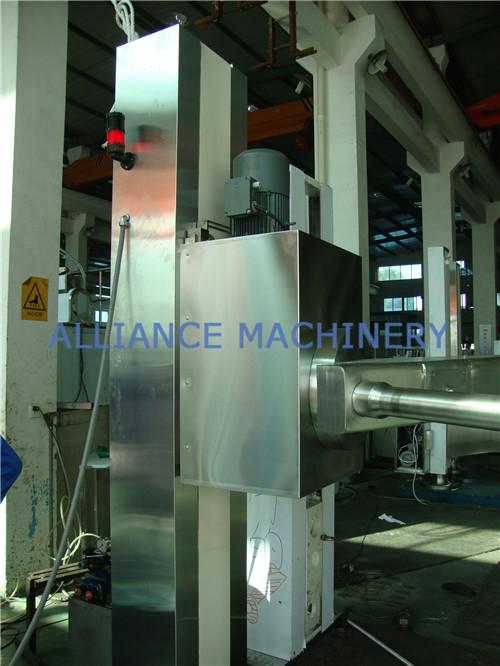

Product Photo:

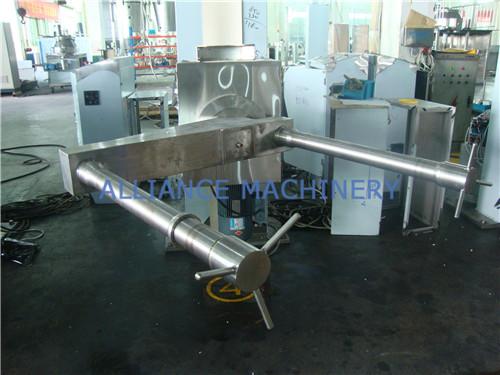

PB Post Bin Blender lifting fork

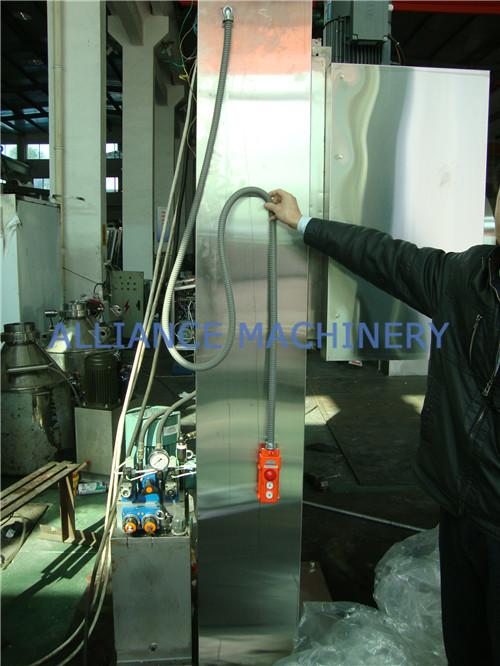

Ex-proof protection
