DPH-360F Rotary Type Heat Seal Packaging Tablets Capsules Blister Packing Machine Thermo-forming

DPH-360F Rotary Seal Blister

Description:

DPH-360Fis rotary heat-sealed ALU/PVC, ALU/ALU blister packaging machine. It automatically performs preheating, house forming, feeding, heat sealing, code embossing, perforating, mould cutting etc. This machine is suitable for packaging a variety specification of pharmaceutical products such as capsules, tablets, pills, soft gel, water injection, syringe, granule, vial, eyedrop etc., it is also widely used for packaging foodstuff, electronics, medical tools, metal products.

Features:

1. High speed, high stability and high accuracy when machine running.
2. Width of PVC and PTP both are 260mm, which designing is more humanized.
3. Flat plate is front pressure to form, roller plate type to seal, thus making the grid pattern more beautiful.
4. It can be equipped with universal feeding system or special pipeline feeding system according to the shape of medicines.
5. PLC human-machine interface control system to operate, stepless frequency inverter to main transmission. Each station adopts an independent worm gear reducer and link universal coupling device.
6. The cutting frequency is up to 40-160 blister plates /minute (the speed is adjustable according to the format length).

7. Printing batch numbers and expiry date, and plate impressing adopts plate drawing type handy replacement structure.

8. Lengthen filling platform which can improve yield and easy to be equipped with camera detection, automatic eliminate convey system, and conveyor link to automatic carton packing machine.
9. Cross cutting (borderless cutting) will not waste packing materials. This blister machine can save packing materials about 10%.
10. Adopting servo traction system, make stroke length be adjustable arbitrary, accurate and consistent. The cutting position is easy to adjust which make plate perfect.
11. This high speed roller-plate blister packing machine is easy to replace mould and guide rail. The mould for ALU-PVC adopts orientation chute, and the guide rail adopts integral aluminum alloy structure, which make installation be more convenient.
12. This packager is designed only for alu-pvc packing function, and it also can be embossig printing batch numbers and expiry dates.

Options:

Dedicated product feeder,
Eyemark calibration,
Camera visualization,
Vacuum rejecting and sorting,
Conveying belt, connecting to pillow packing, cartoning machine as complete automatic packaging line.

Specifications:

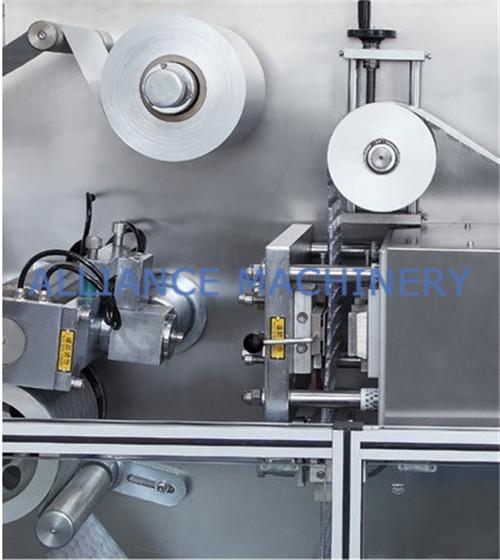

Picture Photo:
