TDL Telescopic Drum Lifter Rotary Column Tilting For Pharmaceutical Production Line
Movable Pharma Tipper TDL Telescopic Drum Lifter Pharmaceutical Industry Equipment Rotary Column Tilting
TDL Telescopic Drum Lifter
Description:
TDL Telescopic Drum Lifter is mainly used in the solid dosage production process for transferring and discharging materials in drums, consequently it is used for dispensing for equipments such as blender, mill machine, tablets press, capsules filling machine, etc. It is widely used in pharmaceutical, chemical, foodstuff industries.
Features:
Movable
Telescopic column, minimum initial height
Double-hand operation
Options:
Explosion-proof
Automatic discharge butterfly valve
Specifications:
| Model | TDL50 | TDL80 | TDL100 | TDL120 | TDL150 | TDL200 |
| Net Load [kg] | 30 | 50 | 65 | 80 | 100 | 130 |
| Total Power [kW] | 1.12 | 1.12 | 1.87 | 1.87 | 1.87 | 1.87 |
| Dimensions [mm] |
1700x650 x3500 |
1700x650 x3500 |
1980x750 x3500 |
1980x750 x3600 |
1980x750 x3700 |
1980x750 x3800 |
| Machine Weight [kg] | 370 | 370 | 470 | 470 | 470 | 470 |

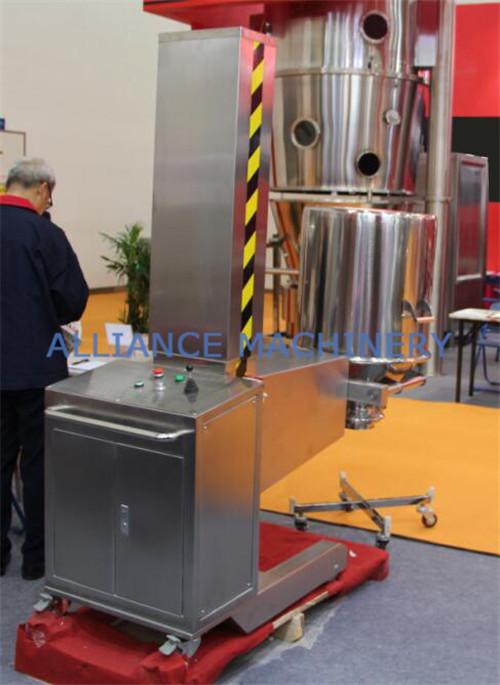

Product Photo:
