Multi Application Pharma Lifter Equipment Tipper Drum Lifting Device Discharge
Multi-application Tipper TDL Telescopic Drum Lifter Pharmaceutical Industry Equipment Movable Pharma Column Tilting
SDL Stationary Drum Lifter
Description:
SDL Stationary Drum Lifter is mainly used in the solid dosage production process for transferring and discharging materials in drums, consequently it is used for dispensing for equipments such as granulator, blender, tablets press, capsules filling machine, etc. It is widely used in pharmaceutical, chemical, foodstuff industries.
Features:
Stationary
Precise positioning of drum direction & height
Double-hand operation
Options:
Explosion-proof
Automatic discharge butterfly valve
Specifications:
| Model | SDL50 | SDL80 | SDL100 | SDL120 | SDL150 | SDL200 |
| Net Load [kg] | 30 | 50 | 65 | 80 | 100 | 130 |
| Total Power [kW] | 1.12 | 1.12 | 1.87 | 1.87 | 1.87 | 1.87 |
| Dimensions [mm] |
1800x600 x3200 |
1800x600 x3200 |
1920x700 x3200 |
1920x700 x3200 |
1920x700 x3400 |
1920x700 x3500 |
| Machine Weight [kg] | 270 | 270 | 340 | 340 | 340 | 340 |

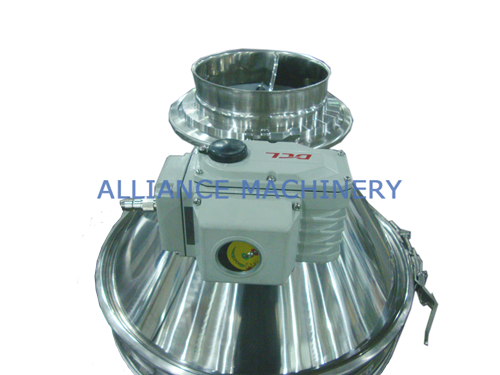

Product Photo:
