ZPT Single Layer Rotary Automatic Tablet Press Machine With Mass Production Capacity Normal Speed
ZPT Rotary Tablet Press Single Layer Compression Tablet Press Machine
ZPT Rotary Tablet Press
Description:
ZPT Rotary Single Layer Tablet Press is one kind of double side rotary tablet press machine,which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
Features:
Double press type with mass production capacity.
Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP
requirements.
Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
Hydraulic overload protection device is equipped, the machine can stop automatically in case of overpressure to protect the punch pins from being damaged.
Separate the control cabinet from main machine, ensure the sanitation for production.
Force feeder is optional on the machine.
Specifications:
| Model | ZP41A | ZP45A | |
| Number of stations | 41 | 45 | |
| Tooling standard | 30 | 26 | |
| Max main pressure [KN] | 80 | ||
|
Max tablet diameter [mm] |
Round tablet | 20 | 13 |
| Irregular tablet | 22 | 16 | |
| Max filling depth [mm] | 15 | ||
| Tablet thickness [mm] | 6 | ||
| Max turret speed [rpm] | 45 | ||
| Max capacity [pcs/h] | 221400 | 243000 | |
| Motor power [Kw] | 4 | ||
| Overall size [mm] | 1120*980*1720 | ||
| Machine weight [kg] | 2000 | ||

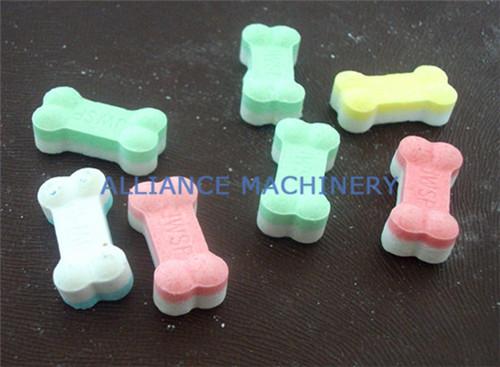

Picture Photo:
