LTP Tablet Press Pharmaceutical Single Tablet Press Machine For R&D Laboratories PLC Control, Small Scale production
LTP Lab Tablet Press Compression Tablet Press Machine Single-Press
LTP Tablet Press
Description:
It is a type of small output tablet press machine mainly suitable for use in R&D laboratories.
Features:
Single roller, fully enclosed in compliance with GMP requirement.
Speed adjustable by frequency inverter.
PLC and touch screen. friendly and easy to operate.
Digital display main pressure, tablet ejection force, tablet thickness, filling depth, rotation speed and output.
With main pressure and pre-pressure
Overload protection for motor with emergency stop device.
Force feeder is optional.
Specifications:
| Model | LTP8 | LTP10 | LTP14 | LTP27 | LTP21 | LTP23 | |
| Number stations | 8 | 10 | 14 | 27 | 21 | 23 | |
| Tooling standard | D | D | B | B | BB | BBS | |
| Max main pressure [KN] | 60 | ||||||
| Max pre-pressure [KN] | 10 | ||||||
|
Max tablet diameter [mm] |
Round tablet | 25 | 25 | 18 | 18 | 13 | 11 |
| Irregular tablet | 25 | 25 | 19 | 19 | 16 | 13 | |
| Max filling depth [mm] | 16 | ||||||
| Tablet thickness [mm] | 6 | ||||||
| Max turret speed [rpm] | 30 | ||||||
| Max capacity [pcs/h] | 14400 | 18000 | 25200 | 30600 | 37800 | 41400 | |
| Motor power [Kw] | 1.5 | ||||||
| Overall size [mm] | 700*580*1630 | ||||||
| Machine weight [kg] | 650 | ||||||

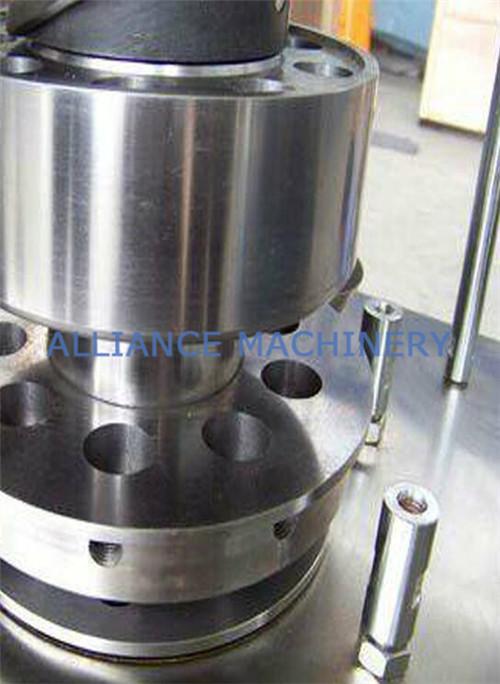

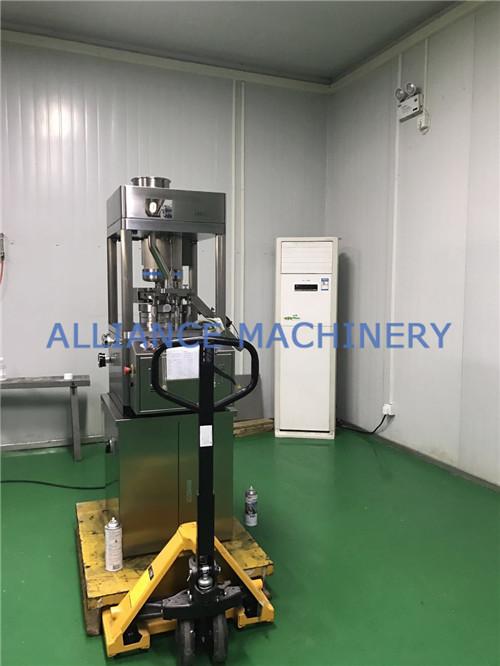

Picture Photo:
