Fully Automatic Tube Filling And Sealing Machine Compact Design 80rpm Speed
RGF-100YZ High Speed Automatic Tube Filling And Sealing Machine
RGF-100YZ Tube Filling And Sealing Machine
Description:

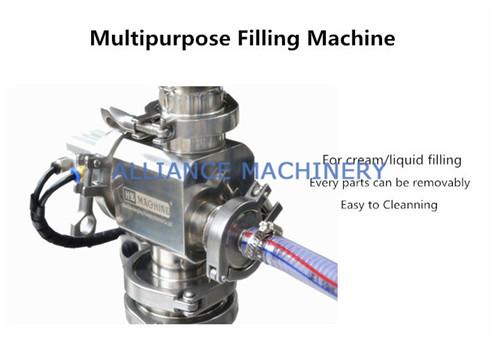

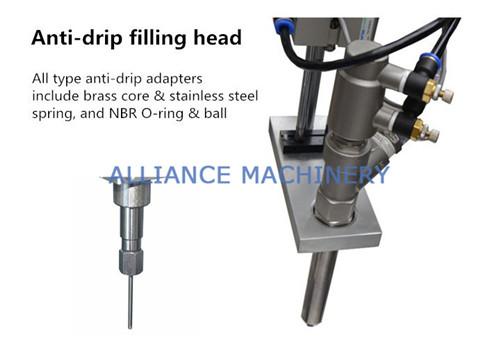

The Automatic tube filling machine RGF-100YZ is mainly used to filling ointment materials into cylindrical,capped tubes of Aluminum or Composite and seal the tubes ends.In compliance with the standard of GMP dosing pump is a new type stainless steel butterfly valve for ointment filling a screw fine adjustment device is privided,so the ointment weighing is accurate.Thanks to the adption of the sophisticated accurately and reliably,change frequency to control the machine speed,Used Fukaishen indx drives and international advanced tube sealing systems.

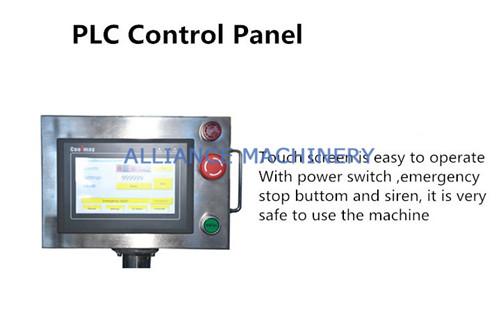

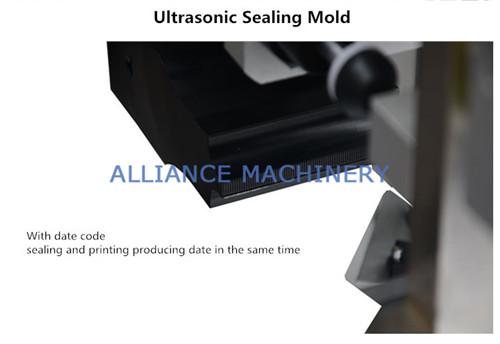

It is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plumbum tube, Al tube, plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Features:
1. Compact Design
2. Driving Parts Fully-closed

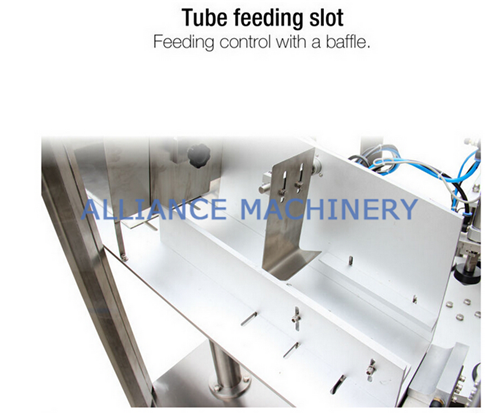

3. Pneumatic Tube Washing & Feeding
4. Intelligent Temperature Control and Cooling System
5. Easy to Operate and Adjust
6. 316L Stainless Steel Contact Parts to meet GMP Standard
7. Safety Interlock Shutdown when Door is Open
8. Overload Protection Provided

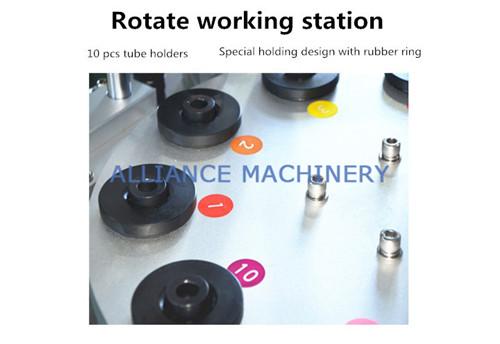

9. Automated Working process from Tube Loading to Finished Products Output

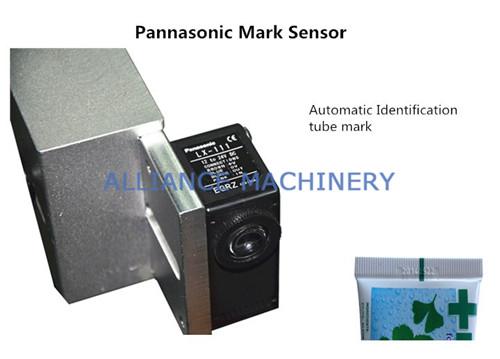

10. Automatic Orientation Effected by Photoelectric Induction
11. Applicable to:Plastic Composite tubes&Aluminum Plastic composite tubes&Aluminum tubes.
Optional:
Jacket and barrel heat preservation device
Blending device inside the barrel
Automatically controlled material feeding device(pump)
Finished tube conveyor
Specifications:
| Model | RGF-100YZ |
| Operation speed [rpm] | 80 |
| Filling volume [ml] | 1-300 |
| Filling precision | ≤±0.5% |
| Suitable tube length [mm] | 60-200 |
| Suitable tube diameter [mm] | Composite tube 11-50, aluminum tube 11-40 |
Picture Photo:
Video Link :
https://vimeo.com/274200045
