Portable Compact Pharmaceutical Accessories Stainless Steel Butterfly Valve
BV Butterfly Valve Pharmaceutical Accessories For Pharma Bin
BV Butterfly Valve
BV Butterfly Valve is an automatic or manually operated butterfly type valve, it is widely used in pharma food, beverage, wine making, as well as chemical and other fields.Which can use with AM Pharma bins for controlled dispense.
The valve opening is by an easy operating extension handle. There is a pin device on the handle to lock handle position and avoid misoperation. It can also connect with automatic actuators by pneumatic or electric drive.
The butterfly valve is sanitary design, parts exchangeable as are high precision made.
Features:
Maintenance free
Portable and compact
Valve body can be replaced in any connections, and the length will not change
Handle can be installed on the side of the valve body, no matter of the flow direction
Material for the part contacted with media is 304/316L, other part is 304, Sealing material: EPDM, VMQ, FPM.
Option:
With pneumatic and electric actuators
Specifications:
| Model | BV150 | BV200 | BV250 | BV300 |
| Inner DN [mm] | 150 | 200 | 250 | 300 |
| Flange DN [mm] | 230 | 280 | 330 | 380 |
| Height [mm] | 55 | 55 | 60 | 60 |

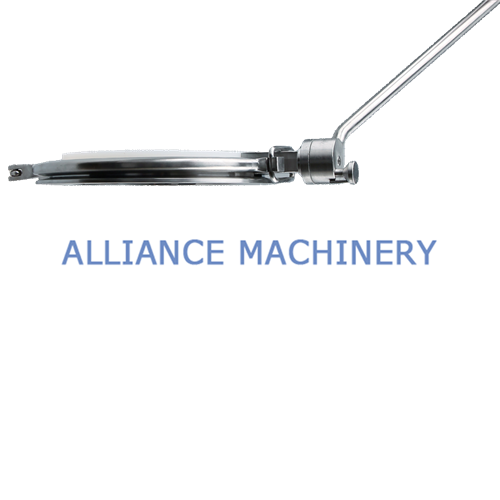

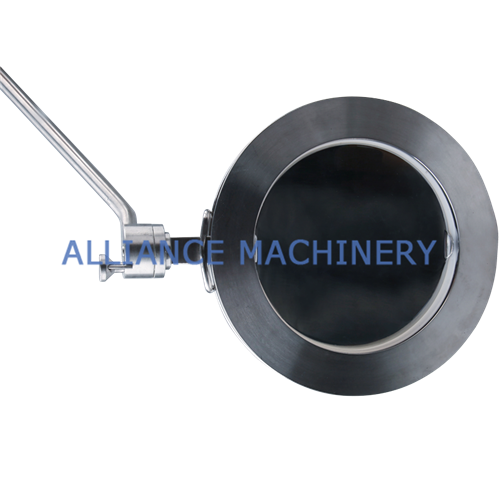

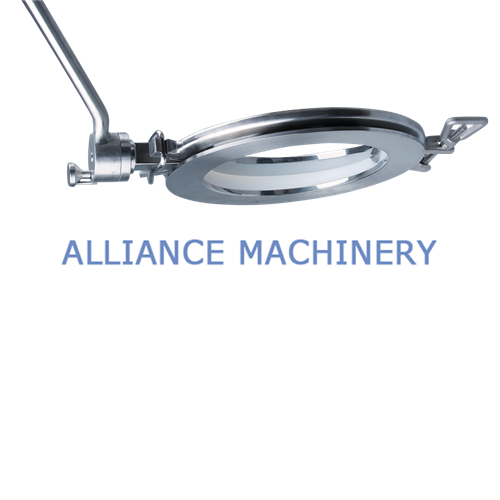

Product Photo:
