High Performance Stainless Steel Butterfly Valve Tablet Machine Parts Maintenance Free

DBV Distribution Stainless Steel Butterfly Valve Bin Drum Cover Butterfly Valve Pharmaceutical Accessories

DBV Distribution Butterfly Valve

DBV Butterfly Valve is an automatic or manually operated butterfly type valve, it is widely used in pharma food, beverage, wine making, as well as chemical and other fields.Which can use with AM Pharma bin.

Which can use with AM Pharma bins for controlled dispense. The valve has many symmetry plates, so can control dispense in very small quantity. It is usually used together with weighing system and automatic actuating for controlled volume dispense.

The valve opening is by an easy operating extension handle. There is a pin device on the handle to lock handle position and avoid misoperation. It can also connect with automatic actuators by pneumatic or electric drive.

The distribution butterfly valve is sanitary design, parts exchangeable as are high precision made.

Features:

Maintenance ease

Portable and compact

Valve body can be replaced in any connections, and the length will not change

Handle can be installed on the side of the valve body, no matter of the flow direction

Material for the part contacted with media is 304/316L, other part is 304, Sealing material: EPDM, VMQ, FPM

Applicable to tablets production distribution

Option:

With pneumatic and electric actuators

Specifications:

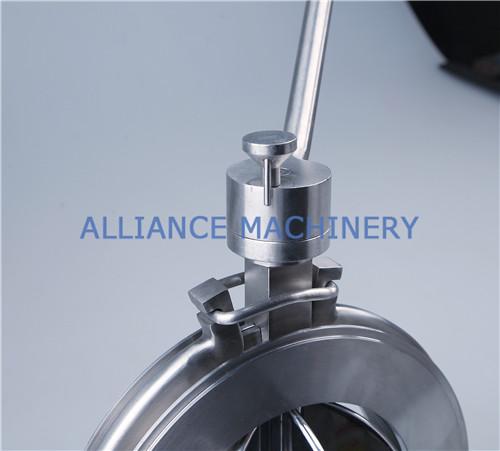

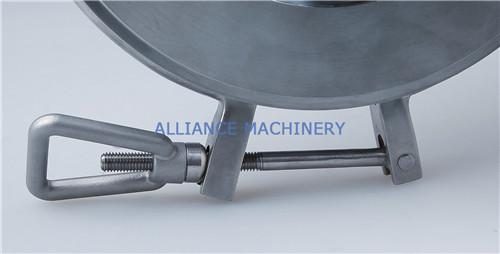

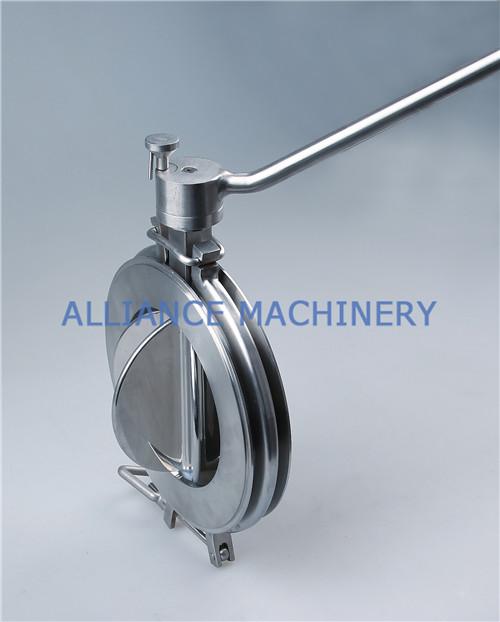

Product Photo:
