Stainess Steel Material Automatic Cartoning Machine AC220V/380V 3P Power Supply
ZH-100D Auto Vertical Cartoning Machine Automatic Cartoning Machine Box Making Machine
ZH-100D Auto Vertical Cartoning Machine
Description:
ZH-100D Automatic Vertical Cartoning Cartoning Machine This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for sachet,pouch,soft al/al strips, wound plaster ,ointment plaster, facial mask plaster,coffee bag into carton.On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
Features:
The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum
No suction carton by missing blister
No suction carton by missing leaflet
Automatically displaying device for trouble, speed and finished products counting
Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
Adopt human-machine operation system.
International famous brand of electric components such for PLC touch screen, frequency inverters, etc
Stable performance, operation is easy Controls
Sensors
Blister presence detection sensor
Leaflet presence detection sensor
Carton present derection sensor
Specifications:
Weight & Dimensions
| Type | ZH-100D |
| Dimensions in mm | 2880mm×1140mm×1800mm (L×W×H) |
| Weight in kg | 1500 |
Output & Speed
| Steady speed | 30-60 cartons/min |
Unfold Leaflets(optional )
| Grammage | Between (60-70)g/m2 |
| Size range | (80-250) ×(90-170)mm (L×W) |
| Fold range | (1-4 )fold |
| Notice: The leaflet can be folded by the machine | |
Carton and sachet
| Grammage | Between( 250-350)g/m2 |
| Carton Size mm | (65-125)×(30-85)×(12-50)mm |
| Sachets/box | 1-12 |
| Sachet size mm |
Utilities
| Standard power supply | 220V – 50Hz |
| Power consumption in KW | 1.1 |
| Air consumption | 120-160L/min |
| Compressed Air Pressure | 0.6MPa |
| Noise | <70 dB |

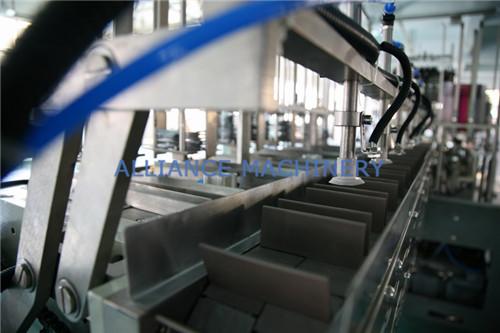

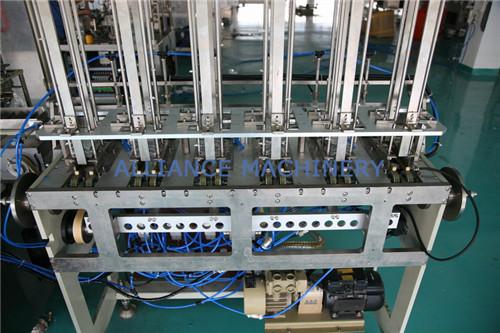

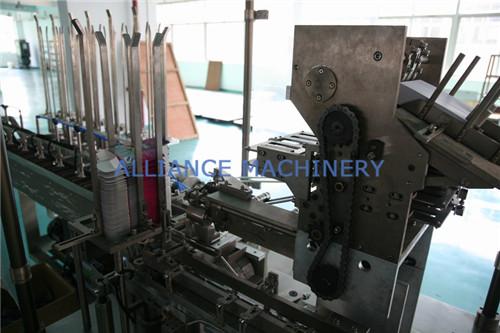

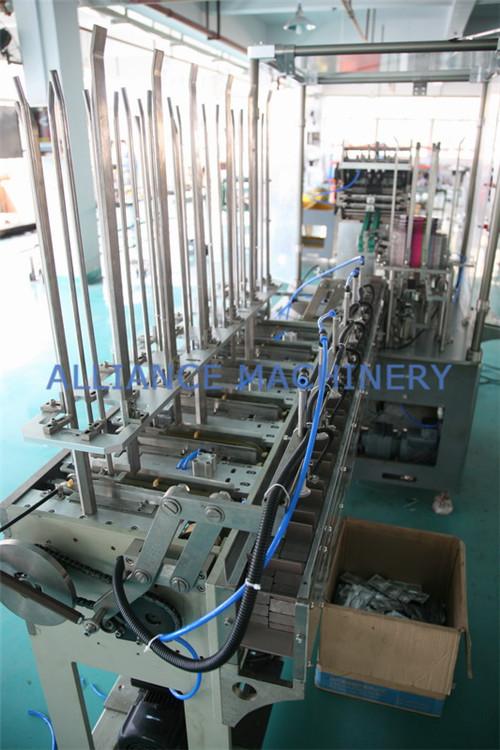

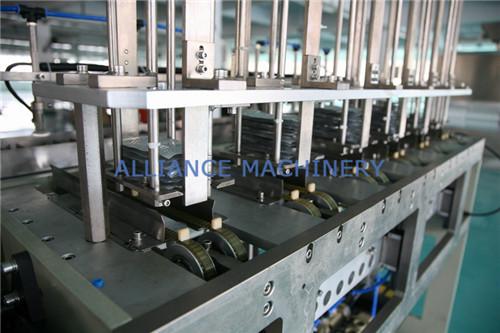

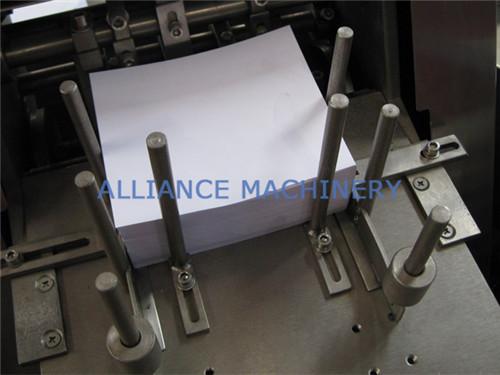

Picture Photo:
