GGS-118P5 Automatic Filling & Sealing Machine

Description:

GGS-118P5 Automatic Filling & Sealing Machine is suitable for all kinds of liquid and pasty filling in PVC packing materials including oral liquid, pesticide, perfume, cosmetics, jam and food, etc.
First, the machine heats and forms PVC bottles from two PVC films, and then bottles are top open, ready for filling. The machine fills liquid in ampoules and seals the top. Finally, excessive PVC packing materials are cut and PVC ampoules are output.

The bottles output are 5 bottles each cut, production capacity of the machine can reach 125 bottles per minute.
According to requirements, this machine can work in-line with downstream packing machine.

Features:

PLC control, frequency stepless speed control.
Fully automatic process, including 7 steps in total as packing material feeding, forming, filling, printing lot number, punching, creasing and cutting.
Human-machine-interface, easy and friendly operation.
No leaking, bubbles or overflowing in filling process.

3 color alarm light.
All related parts connecting with liquid adopt high quality stainless steel, in accordance with GMP standard.
Main pneumatic components and electric appliances are international brands or imported.
Two kinds of filling system: automatic filling or electric peristaltic pump and mechanical filling, precise calculation with slight error.

Specifications:

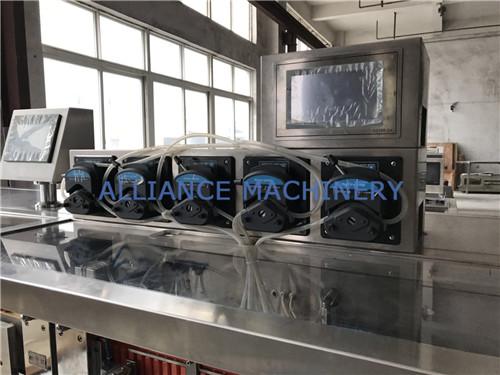

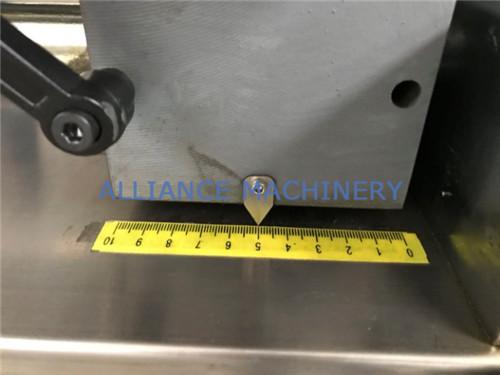

Product Pictures:
