380V 50Hz 3P Capsule Filling Machine Electricity / Pneumatic Combined Control
CGN208-D Semi-Auto Capsule Filling Machine
Description:
CGN208-D Semi-auto Capsule Filling Machine is our latest high efficiency model.
It is more easy operation, intuitive and higher efficiency in capsule dropping, orientation and vacuum separation in comparison with the old type. The new type of capsule orientation assembly adopts columns pin positioning, which shortens the mould replacement time from original 30 minutes to 5-8 minutes.
CGN208-D Semi-auto Capsule Filling Machine is the ideal equipment for capsule filling in small and medium-sized pharmaceutical companies, pharmaceutical research and development laboratories and hospital preparation rooms.
Features
- Automatic counting
- Button control
- Inverter control speed regulating
- Parts replacement in 5-8 minutes
Specifications:
| Model | CGN208-D |
| Capacity [pcs/hour] | 25,000-30,000 |
| Capsule Size | 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#,4# |
| Power Supply | 380V 50Hz 3P |
| Power [kw] | 4 |
| Compressed Air | 0.03m3/min 0.7MPa |
| Vacuum pump [m3/h] | 40 |
| Mould Change Time[min] | 5-8 |
| Dimensions [mm] | 1140*700*1630 |
| Weight [kg] | 380 |
Photo for references:

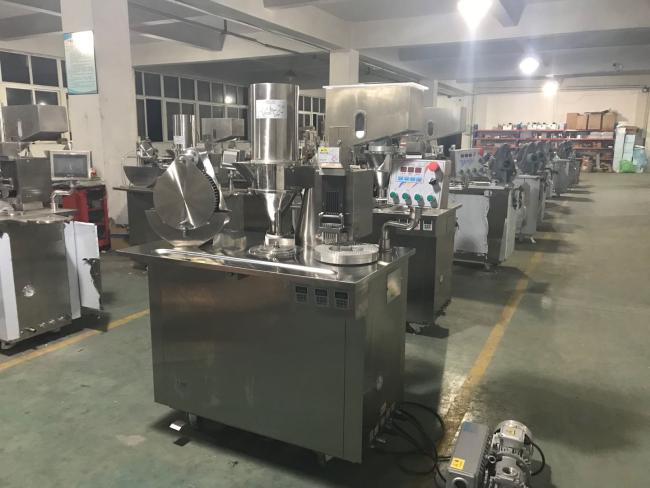

Assembly workshop

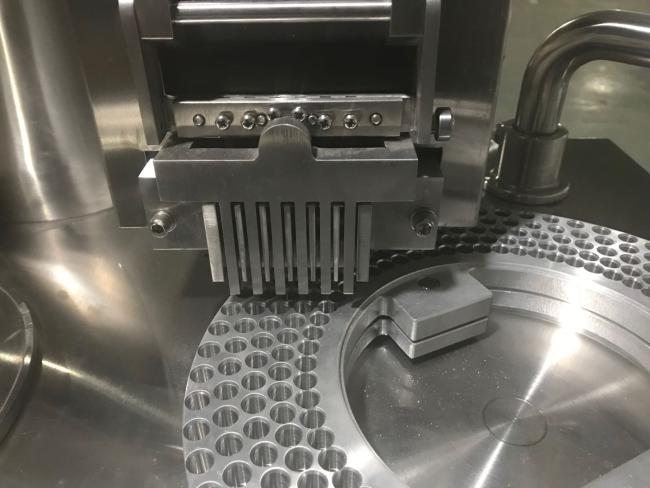

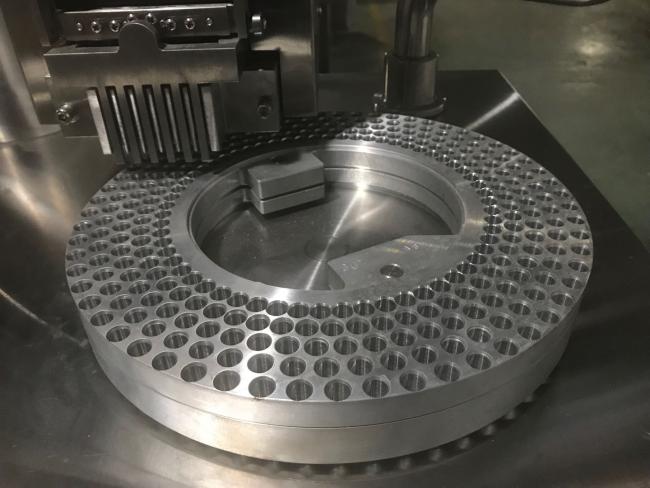

Capsules disc

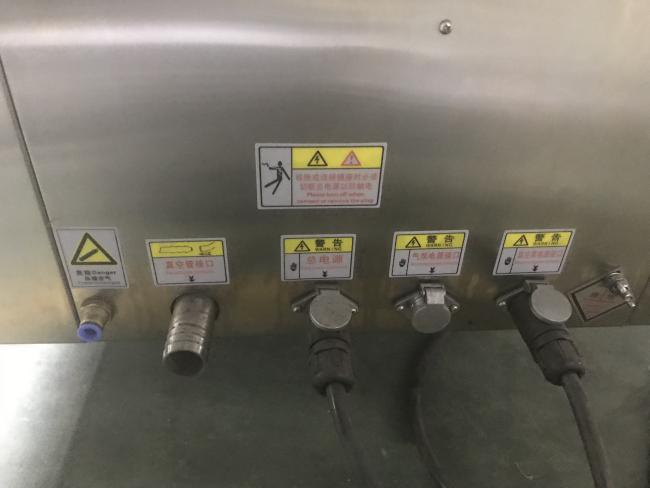

Eject disc and friendly utility supply connection

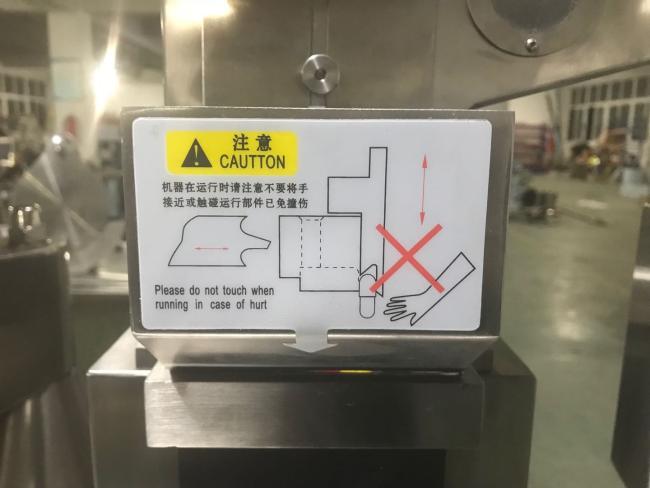

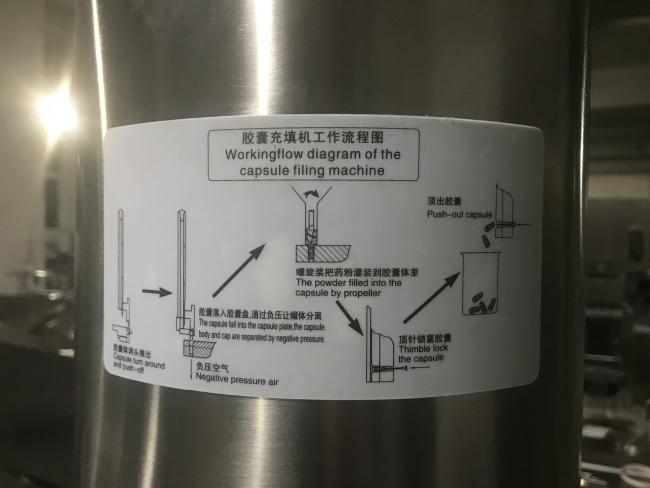

Machine working principle label and warning label

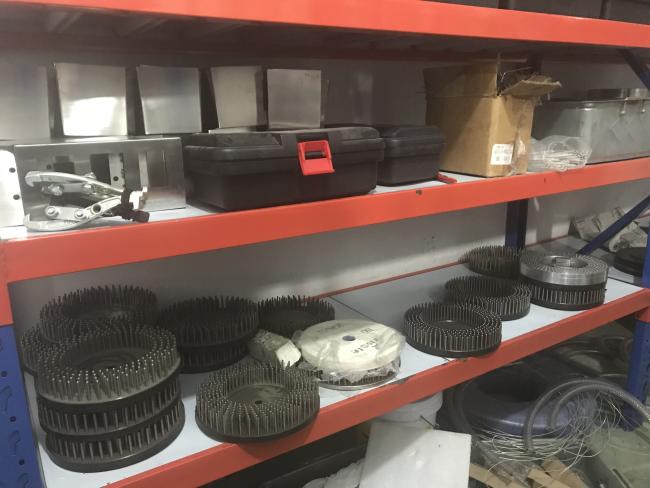

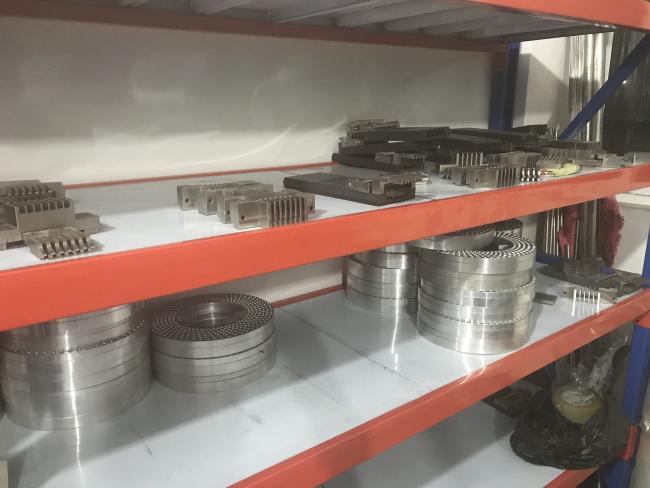

Parts storage to ensure delivery time
