Energy Efficient Horizontal Bottle Packaging Line Small Bottle Labeling Machine E-200
E-200 Horizontal Labeling Machine
Description:
Specialized for all kinds of square shape boxes, flat bottles top surface labeling.
Use imported well-known brand servo motor, ensuring high speed, precision, and stability.
No need change specification parts when change products.
High speed, linear speed can reach 35 m/min.
Can use in the production line and also as stand-alone.
With synchronous belt bottle clamp mechanism, for products spacing and direction correction to face the same angle, thus guarantees label precision to be within ± 1 mm.
Machine equipment is simple, easy adjustment, especially suitable for customers with a big variety of products who frequently changes products.
Specifications:
| Model | E-200 |
| Be stick size [mm] | L: 35-350 H: 15-320 W: 30-130 |
| Labeling speed [bottle/min] | 0-200 |
| Labeling accuracy [mm] | ±1 |
| Label size [mm] | L: 10-300 W: 20-90 |
| Total power [kW] | 1.2 |
| Electrical source | 220V |
| Air source [MPa] | 0.5 |
| Machine dimension [mm] | 2100*685*1680 |
| Machine weight [kg] | 180 |

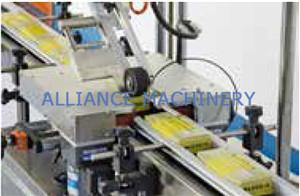

Photo:
