S-510 Pallets Separating, Bottle Labeling, Positioning into Pallets

Description:

Pellets separating system is specialized for separating whole fold plastic pallets, the separating speed is quick, pallets do not overlap, no damage to the pallets.
Dedicated to all specifications of small round bottles horizontal labeling and put into pallets.
Horizontal feeding, easy operation. Bottles damage rate is low (less than one over two hundred thousand for oral liquid bottles).
Use imported well-known brand servo motor, ensuring high speed, precision, and stability.
High labeling speed and precision, within plus or minus 0.5 mm.
Adopts the unique design of s-shaped conveying buffer, simple and reasonable structure with good buffer performance.
1) The bottle by the S free fall, no extrusion, no broken bottles.
2) Minimum mutual friction between bottles, no scratch on labels or damage contents on the label.
Modular specification parts, quick and easy replacement of products.
Pallets position are corrected by multichannel guardrail into clamp mechanism, guarantee the smooth pallet transportation and the stability of bottles positioning.
Bottles positioning rate is high to reach 99.99%, ahead of similar products in the same industry.
Wide application range of the equipment, suit for 1 ml - 20 ml ampoules on one machine.

Feature:

1. Horizontal feed
2. Screw bottle spacing
3. High speed label feed

Specifications:

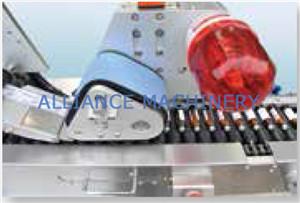

Photo:
