Circulating Vacuum Emulsifying Machine 150L Highly Efficient Product Mixing and Homogenizing

VE Vacuum Emulsifier

Description:

Model VE-200L Vacuum Emulsifier is a coaxial mixer, suitable to stable homogenizing and emulsifying, the finished granular is very small. The quality of emulsifying depends on the disperse of the granular on the preparation stage. The smaller the granular is, the weaker the trend of accumulation to the surface becomes, thus the smaller the opportunity for the emulsifying to be broken becomes. Relying on mixing of reversed impeller, under the condition of homogenizing turbine and vacuum status, you can get the high-quality effect of emulsifying and mixing.

Model TFZRJ-200L Vacuum Emulsifier has very good performance in the aspect of insuring high quality of the finished material.

Advantage:

This unit applies upper coaxial mixer and hydraulic lifting mode to open the cover, rapid homogenizing from bottom. The speed of rapid homogenizing mixer is 1150-3500 rpm (frequency control); the speed of slow-speed scraping mixer is 10-40 rpm (frequency control); the homogenizing head applies high cutting eddy current type emulsifying mixer. The slow-speed scraping mixer automatically abuts closely to the bottom and wall of main tank. By applying vacuum sucking, this unit can suck in powder material by using vacuum to avoid powder flying upward. The whole process is performed under the vacuum condition in order to keep from the production of air bubble after the material is mixed at high speed and up to hygienic asepsis requirements. This system is equipped with CIP cleaning equipment. The parts of container, which contact the material, are made of SUS316L and inner surface mirror polish is up to 300 MESH (sanitary level). In order to ensure stability of control part, the electric control parts apply the products from German Siemens, the press key from Schneider, frequency converter from Germany Siemens, and vacuum pump from NASH. The unit is made completely in conformity with GMP and is the most advanced, ideal ointment and cream production equipment currently in China.

Specifications:

Product Photo:

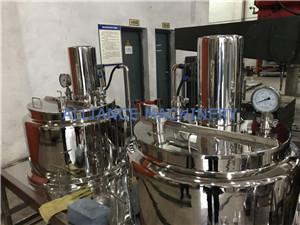

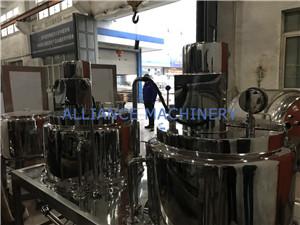

Preparation tanks 1                                                 Preparation tanks 2

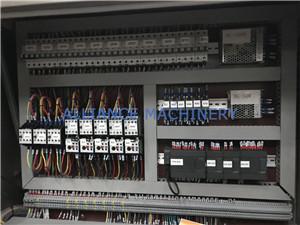

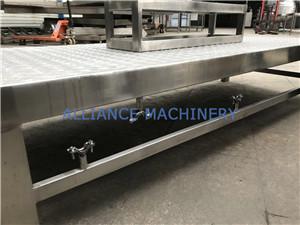

Electric cabinet                                                             Utility supply

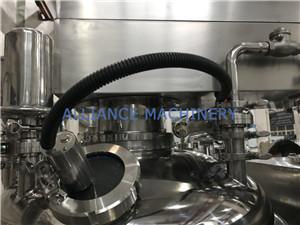

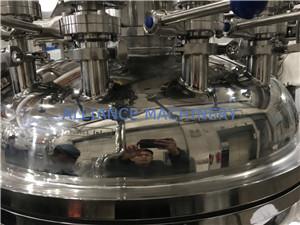

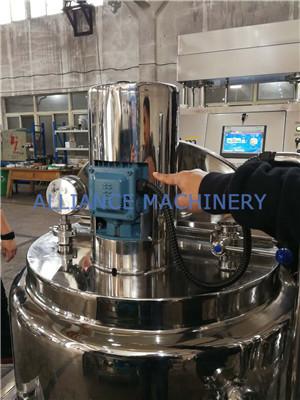

Cover top

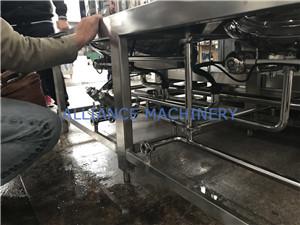

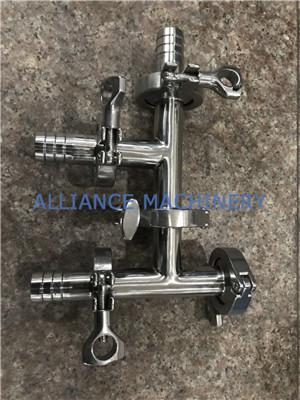

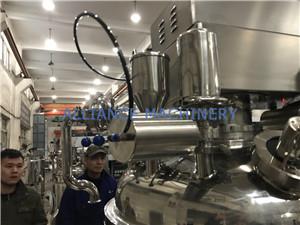

Piping direction                                        Piping fixture                            Piping

ABB motor                                     Vacuum in&out
