BDS Bag Dump Station Equipment Powder Feeding Dust Collect Vibro - Sifter Filter Closed Transfer 20Mesh
BDS Bag Dump Station Equipment Powder Feeding Dust Collect Vibro - Sifter
Description:
The machine is mainly used for feeding small bag materials (powder) to prevent dust from rising when the material is being fed, and to pollute the operator and working environment. The machine is particularly suitable for the food, daily necessities, pharmaceutical and chemical industries.
Features:
The filter is easy removing and cleaning.
Air and material separation technologies effectively prevent flying dust and materials waste.
Filter blowback cleaning removes dust from the filter in an effective way.
Integrally enclosed processing, free of leakage, bag-dumping station can be directly used in the cleanroom.
Ease of operation.
Specifications:
| Machine Model | BDS-800 |
| Dedusting Power [kw] | 1.25 |
| Power supply | 380V 50Hz |
| Air volume [m3/h] | 1200 |
| Pressure [Pa] | 1500 |
| Filtering accuracy [um] | 5 |
| Product contact part material | Stainless steel 316L/304 |
| Convey pipe diameter [mm] | Ø50.8 |
| Vacuum flow [m3/min] | 2.0-3.0 |
| Vacuum degree [KPa] | -40 ~ -50 |
| Sieve mesh number | 8, 10, 20 according to customer requirements |
Picture Photo:

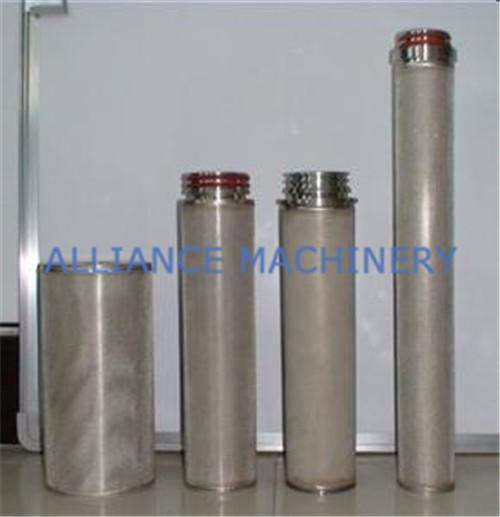

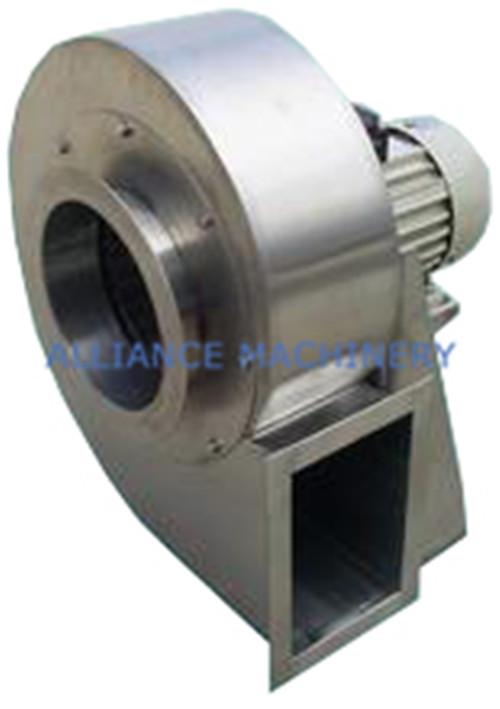

Fan Filter
