Vertical Three / Four Side Sachet Filling And Sealing Machine Powder Pouch Strip Back Seal
Vertical Three Side Four Side Sachet Filling And Sealing Machine Powder Pouch Strip Back Seal
Description:

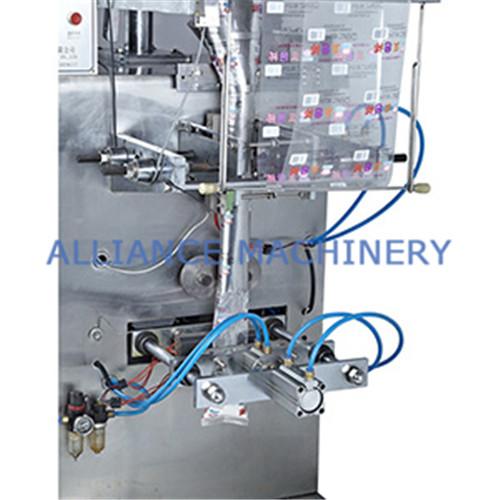

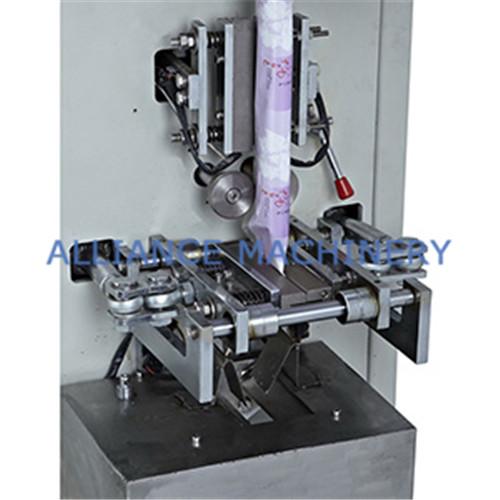

FJJ100 Sachet Filling Machine is suitable for powder filling and packing in many forms. It is three-sided sachet forming, powder filling, sealing and automatic chopping machine. The machine is PLC control for precision filling and sealing actions. The performance is a stable and easy adjustment.
FJJ100 Sachet Filling Machine is widely used in pharmaceutical, food and consumable industries, such as instant coffee, instant milk powder, instant pharmaceutical powders, juice powder, MSG powder etc sachet filling, and packing.
FJJ100 Sachet Filling Machine is designed with three-side sealing or four-side sealing function. Customer shall inform us the type of sealing before production.
Features:
1. Vertical, fully automatic sachet forming
2. Precision powder filling by adjustable screw and PLC
3. Photosensor for accurate sealing and cutting position control
4. Automatic counting
5. Optional product batch number and production date printing
6. Automatic filling
7. Automatic three sided heat sealing
8. Small footprint and compact structure
Specifications:
| Machine Model | FJJ100 |
| Output [sachets/min] | 40-50 |
| Filling Volume [mg] | 3000 |
| Film Width [mm] | 70-320 |
| Sachet Length [mm] | 30-180 |
| Sachet Width [mm] | 30-140 |
| Motor Power [KW] | 0.55 |
| Heat Seal Power [KW] | 0.5 |
| Power Supply | 380/220V 50Hz |
| Machine Dimensions [mm] | 750 *800 *1700 |
| Machine Weight [kg] | 350 |
| Material | Product contact parts SS316L |
