Automatic Capsule Filling Machine NJP800 Pellet Granules Vacuum Loader 48,000

NJP800

Description:

After the machine is started, the capsules in the capsule hopper will enter the selection fork of the dispensing device one by one. By the action of the directional push-out and the selection fork, each capsule is loaded into the hole of the first station module in the downward direction of the upper body, and the vacuum separation system separates the body and the cap of the capsule. The second station reserves a buffering station for the sheave. In the third station, the upper module rises and is separated from the lower module. A filling device at the fourth station pushes the compacted pellet into the capsule. The fifth station also reserves a buffer station for the sheave. At the sixth station, the capsules in the module and the caps that are not separated will be cleaned up. The seventh station still reserves a buffering station for the sheave. In the eighth station, the module is retracted and merged with the upper module, and the capsule of the filling material is locked and locked by the push rod to achieve the finished product requirement. At the ninth station, the finished capsules will be pushed out by the putter. At the tenth station, the cleaning unit cleans the module for the next cycle.

Features:

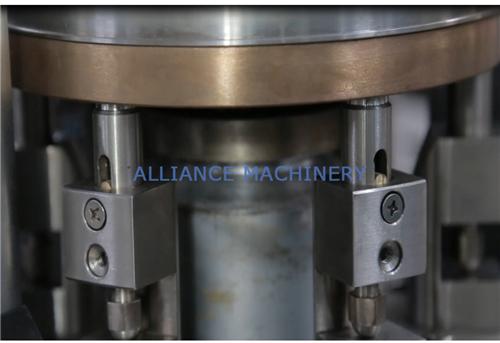

1. The upper mold adopts double shaft for circular up and down movement, imported silicone seal to reduce the turntable powder; the lower mold adopts double shaft for circular in and out movement and is equipped with imported rubber sealing ring to reduce the back and forth tension of the moving shaft, and it is stable. The precision is high; the double shaft is made by the gland, convenient for disassembly and assembly, easy to clean, and the replacement of the sealing ring does not need to open the turntable.

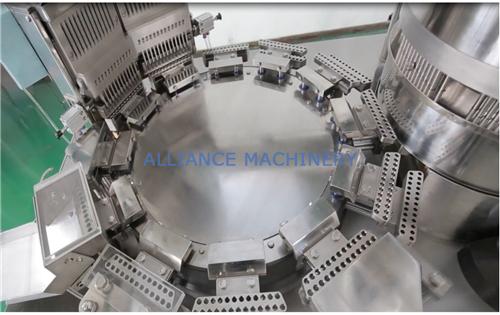

2. The second generation fully enclosed turntable design is adopted. Changed the old model due to prolonged use, so that the powder enters the turntable and sticks to the oil
The knot leads to frequent cleaning, further solving the cumbersome problem of assembling the mold. It reduces the labor intensity of employees and increases the service life of the station turntable.

3. Based on the lower plane of the metering disc, the three-dimensional adjustment mechanism eliminates the natural deformation of the metering disc and the copper pad. The gap is even, which reduces the phenomenon of powder leakage. It is easy to clean and guarantees the difference in the volume.

4. Capsule switch

5. Jog system

Options:

Pellet/granules filling device

Auto empty capsule vacuum loader

Auto power transporter

Specifications:

Video Link:

https://vimeo.com/274195881
