Double Track Liquid Filling Capping Machine Fully Automatic Bottle Feeding
ZCGG-10 Double Track Filling And Capping Machine Liquid filling and Capping Automatic Bottle feeding
Application:
The ZCGG-10 double track filling and capping machine is mainly suitable for liquid filling and capping operations in pharmaceutical factories. The machine adopts mechanical mold clamping and positioning, and the replacement specifications are simple and convenient. The transmission of the machine adopts mechanical transmission, the transmission is accurate and stable, and the loss is low; the touchscreen, PLC intelligent control, simple operation; It has the functions of bottle-unfilling and bottle-free shutdown, and can complete the processes of bottle feeding, filling, capping and capping, especially suitable for mass production. The work surface is protected by stainless steel.
Feature:
The filling machine adopts 316L stainless steel piston pump, and the interface is fast-card structure, which is easy to disassemble, clean and disinfect.
Driven by Japan's Sanyo Electric, the original pipeline is filled with high precision and convenient adjustment.
The use of a siphon needle can solve the dripping liquid of the needle, and the filling can be carried out without dripping.
The capping head adopts constant torque and automatic slipping device, which will not damage the cap and bottle appearance.
The universal performance is strong, and the molds with the replacement specifications are few and convenient;
Process flow:
Turn on the power, the prepared bottle is arranged by the rotary table from the conveyor belt convey to the filling station.

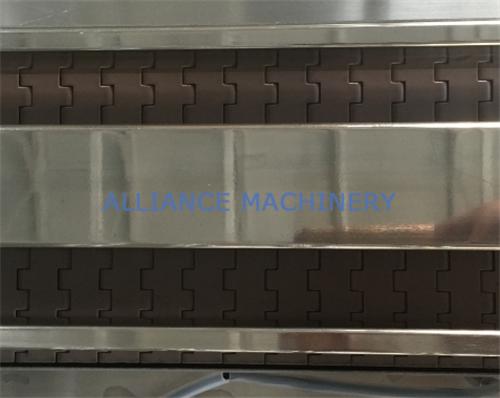

Double track bottle convey

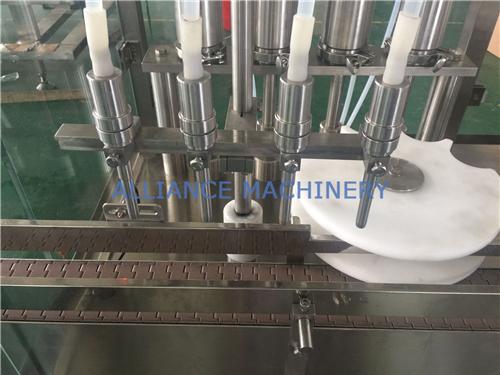

Anti-drip filling head

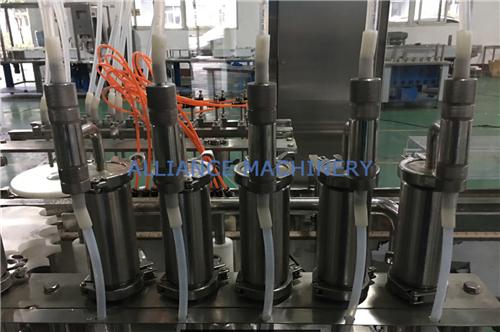

Stainless steel one-way valve control
After filling, the bottle is convey to the capping station by the positioning disc. The cap is arranged by the vibrating hopper and transported along the capping track to the capping station. At the same time, the capping work starts, and the capping head continuously rotates above the bottle mouth. When the bottle stops directly below, the falling capping head covers the cap to complete the capping action.

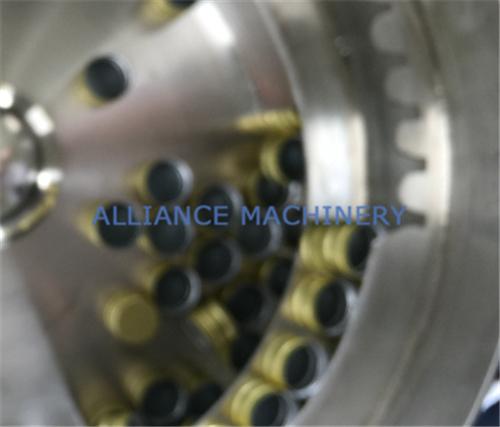

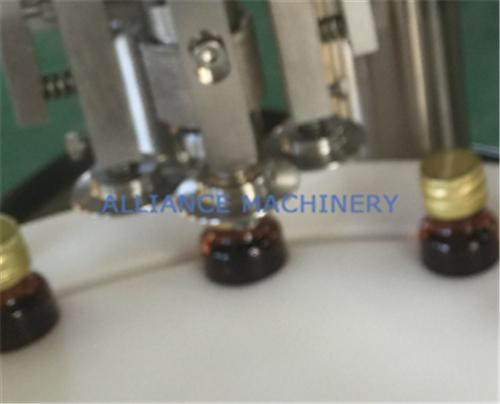

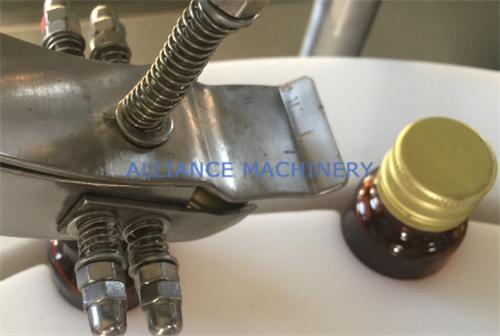

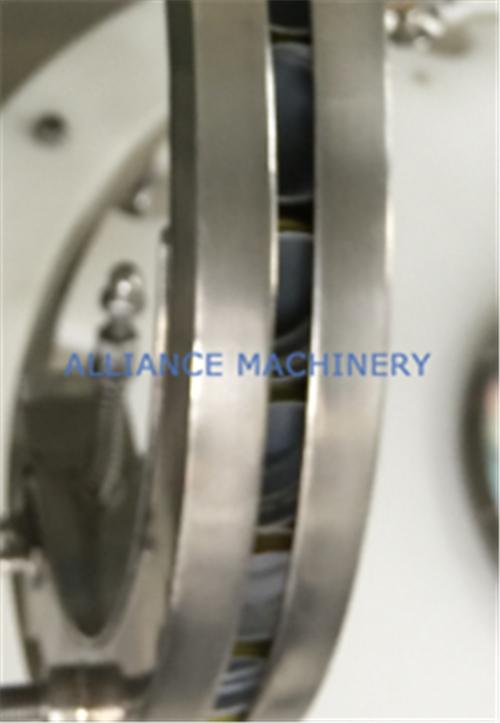

Vibrating hopper Cap feeding track Capping station
Finish capping bottle convey by the rotary disc to the conveyor belt and send out of the machine.

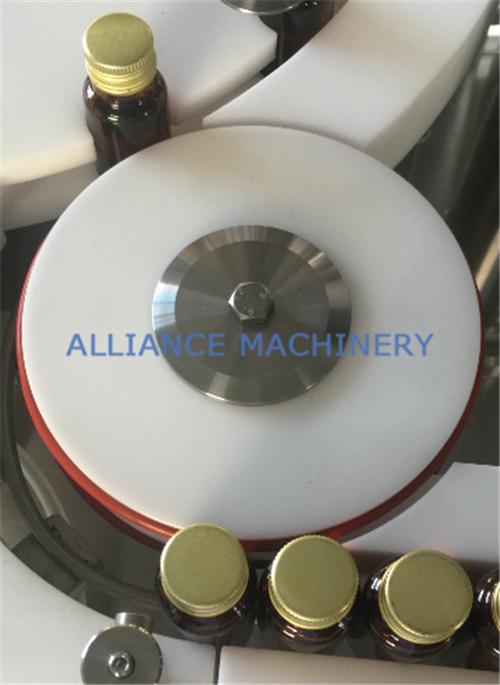

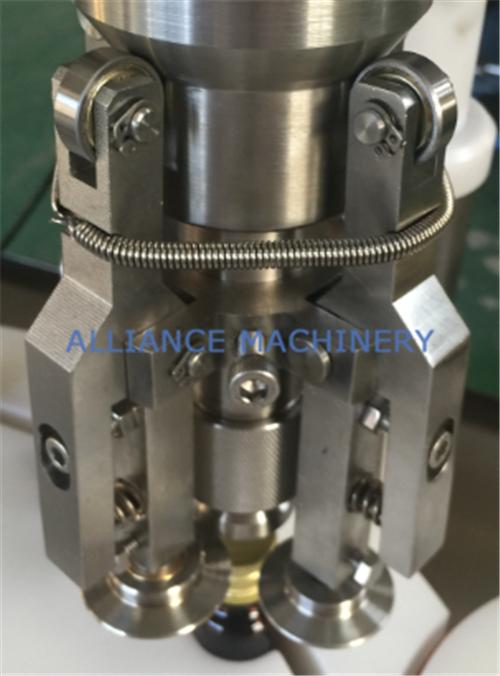

Rotary disc position Four cutter capping head Bottle out
Specifications:
| Machine Model | ZCGG-10 |
| Capacity [bottles/min] | 80-100 |
| Filling range [ml] | 50-300(Mould change) |
| Filling head | 10 |
| Capping head | 2 |
| Metering precision | ±1% |
| Filling precision | ≤ ±0.5% |
| Production rate | ≥99.5% |
| Power supply | 220V 5Hz |
| Power [kw] | 2.5 |
| Weight [kg] | 900 |
| Dimension [mm] | 3200*1100*1700 |
