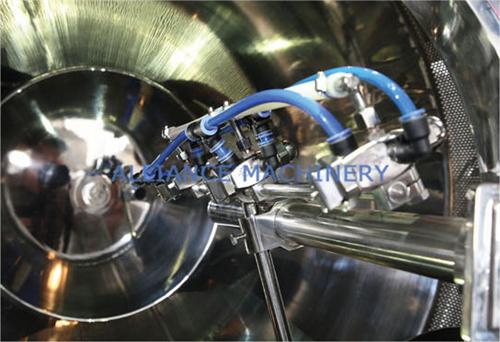

BG -100 Film Coating Equipment With Four Spray Gun Electric Heating , Discharge Device
BG-100 Film Coating Machine With Four Spray Gun Electric Heating, Discharge device
Description:
BG100 Series Coating Machine is mainly used in pharmaceutical solid dosage production for organic film coating, water soluble film coating, slow release and control release coating. It is also suitable for sugar, xylitol, chocolate coating in food industry. BG100 Coating Machine is highly efficient, cGMP-compliant solution dedicated to meet user’s requirements.
Features:
Coating process is performed in negative pressure environment, which prevents cross pollution and improve production environment, comply with GMP requirements. Improved coating process reduced process time, improved production efficiency, is widely used in pharmaceutical, bio-pharmaceutical application for tablets, pills organic film coating, aqueous film coating and sugar coating (for slow release, control-release purpose), is a high-efficiency, automatic coating control, low-power, small footprint machine.
Specifications:
| Model | BG-100 |
| Max. Finished product outlet | 100L/batch |
| Coating pan dia. | Φ1200mm |
| Feed inlet dia. | Φ475mm |
| Rotation speed of coating pan | 1-16rpm |
| Main machine motor power | 2.2 kw |
| Exhaust cabinet motor power | 5.5 kw |
| Exhaust blower air flow | 7419 m3/h |
| Hot air cabinet motor power | 1.5kw |
| Hot air flow | 2356m3/h |
| Air heater temp. adjusting range | ~80 oC |
| Hot air cleanness level | 100,000 level |
| Thickness of silicone tube | 1.6-2.2mm |
| External dimensions of main machine | 1730×1320×2030mm |
| main machine weight | 850kg |

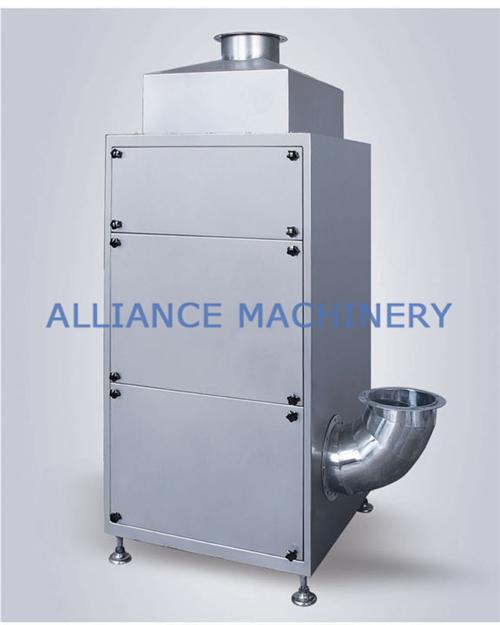

| External dimensions of hot air cabinet | 900×800×2130mm |
| Hot air cabinet weight | 450kg |

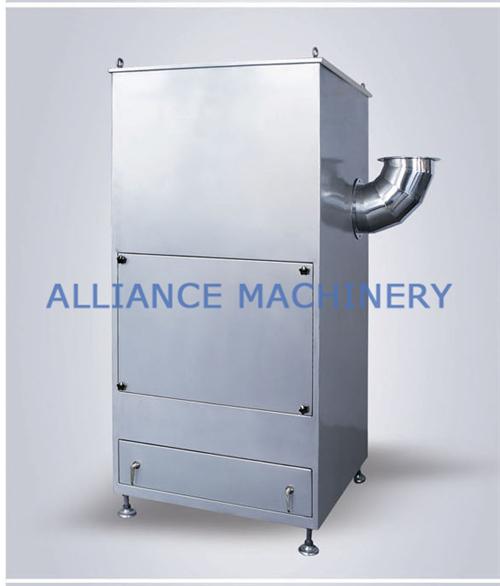

| External dimensions of exhaust cabinet | 950×950×2000mm |
