Spheronization Core Forming Centrifugal Granulator
Centrifugal Pelletizer Powder Layering Spheronization Core Forming Pellets Enlarging and Coating
Description:
This machine is mainly used in powder layering to manufacturing pellets. Material under the effect of centrifugal force, friction force, and ring gap gas buoyancy mixes and bounded with atomized liquid. Then it aggregates to finish core forming, pellets enlarging, spheronization and coating. It consists of container, rotate plate, liquid supply system, powder supply system, control system, pneumatic system, heat system and dedusting system. It is widely used in pharmaceutical, food and chemical industry.
Features:
1. Touch screen + PLC control system with semi-automatic operation program and upgrade function.
2. Easy cleaning with cleaning water jet and dust blowing nozzle, drainage.
3. Control part and processing part are separated area designs.
4. With a mechanical lifting device, low malfunction rate and easy maintenance.
5. Spiral liquid atomization and spray greatly improves pelletization and coating efficiency.
6. Optional horizontal or vertical powder feeding system for varied powder requirements.
7. The air filtering meets GMP 2010 requirements for pharmaceutical processing cleanliness.
8. The machine has primary cyclone dust catchier and secondary bag dust catchier or pulse back blow filter cartridge dust catchier.
Specifications:
|
Model Item |
WL-300 |
|
|---|---|---|
|
Core input (Kg/batch) (bulk density 0.7 Kg/m3) |
0.2 | |
|
Pelletizing capacity(Kg/batch) (bulk density 0.7 Kg/m3) |
2 | |
| Pelletizing time (min/batch) | 30-90 | |
| Spheronization capacity (Kg/batch) | 0.2-0.8 | |
| Spheronization time (min/batch) | 3-8 | |
| Pellet diameter (mm) | 0.25-2.5 | |
| Max enlargement factor (K=D/d) | ≤2.7 | |
| Max speed of pelletization plate (rpm) (frequency control) | 600 | |
| Max speed of speronization plate (rpm) (frequency control) | 1400 | |
| Power of rotate plate (Kw) | 1.1 | |
| Blower motor | Power (Kw) | 0.55 |
| Air flow (m3/h) | 100 | |
| Air pressure (kpa) | 12 | |
| Deduster motor | Power (Kw) | 0.4 |
| Air flow (m3/h) | 83 | |
| Air pressure (kpa) | 130 | |
| Powder feed method | Vertical screw feed | |
| Power of powder feed motor (Kw) | 0.18 | |
| Power of liquid feed motor (Kw) (frequency control) | 0.04 | |
| Power of electric heating (Kw) | 1.5 | |
| Inlet air temperature (°C) | Room temperature~100 | |
| Compressed air pressure (MPa) | 0.4~0.6 | |
| Compressed air consumption (m3/min) | ＞0.2 | |
| Dimensions (L×W×H) | 1100×700×1400 | |
| Machine weight (Kg) | 450 | |

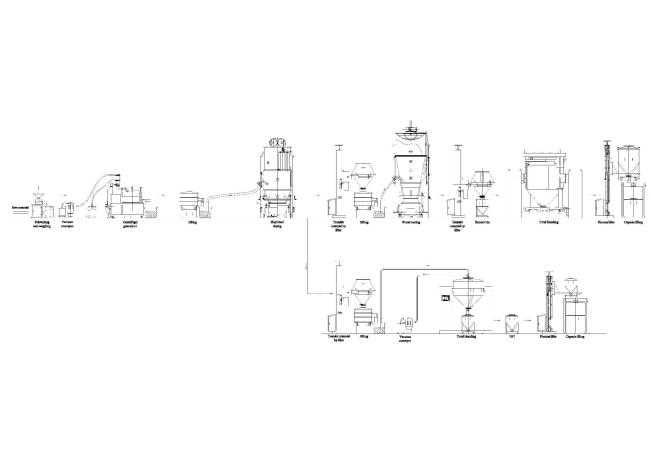

Complete process flow chart:
