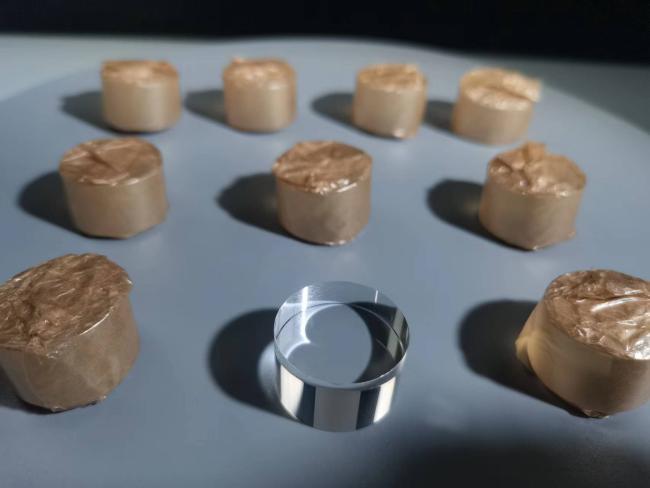

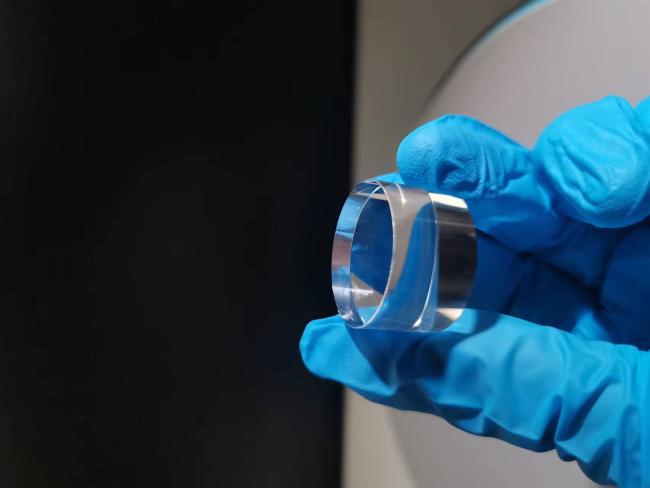

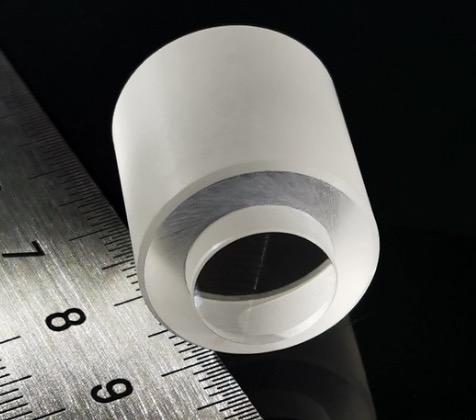

Customized Dia25.40* 15.00mm Cylindrical All Sides Polished Sapphire Lens Optical Windows

Product features:

Sapphire Windows are highly resistant to extreme temperature and pressure changes. These Windows are commonly used as viewing Windows to see inside vacuum chambers or chambers containing high-temperature plasma. Sapphire is a single crystal aluminum oxide (Al2O3), with good chemical, mechanical and optical properties: strong acid corrosion resistance, can be used in corrosive environments; Surface resistance to scratch and wear. Uncoated sapphires are transparent over a wide wavelength range from 150 nm to 4.5 μm and are suitable for use in the ultraviolet to mid-infrared bands. Sapphire is slightly birefringent, which may cause a slight change in the polarization state of the transmitted light. However, the sapphire window provided by Jingjing Technology is the Z-axis section, and the C-axis of the crystal is parallel to the optical axis of the system, and the birefringence effect of the transmitted light is effectively eliminated. Jingjing Technology provides high precision window pieces prepared by various substrate materials, and also provides customized services for special size and film system materials.

Specifications:

Factory Introduction:

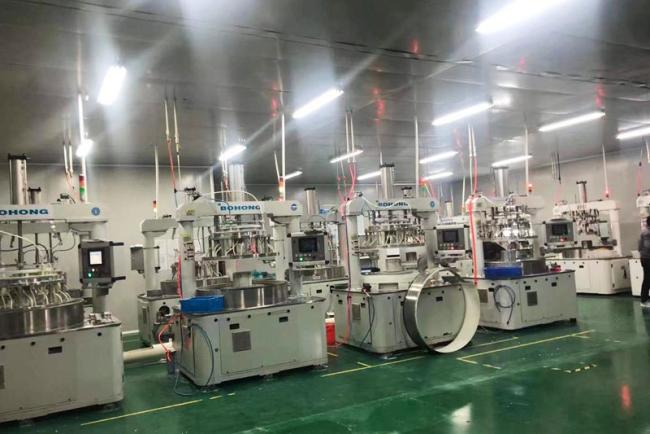

Jingjing Technology (Hubei) Co., Ltd. is a company engaged in optoelectronic new materials, semiconductor materials and new crystal materials; Superhard materials research and development, production, sales of high-tech enterprises. Products are widely used in consumer electronics, precision equipment, laser communication, medical, environmental protection, high-end instruments, instruments, aerospace, naval ships, weapons and other fields. The company covers an area of 30 mu, building a factory area of 15,000 square meters, office building of 3,000 square meters, with a full set of equipment from raw material orientation, cutting, shaping, grinding, chamfering, fine carving, fine grinding, polishing, cleaning and inspection, as well as related supporting testing equipment, end-to-end technology and production capacity and related supporting, and has experienced engineering and technical team. With its strong production capacity of non-calibration products, we can research and develop design solutions according to customer needs. The company's products involve a wide range, a wide variety of products sold all over the world. Adhering to the concept of "customer-centric, employee-based, R&D as the core", the company has grown into a high-tech enterprise in the field of new materials in China through continuous integration.

Customization:

All kinds of lens.

Other Product:

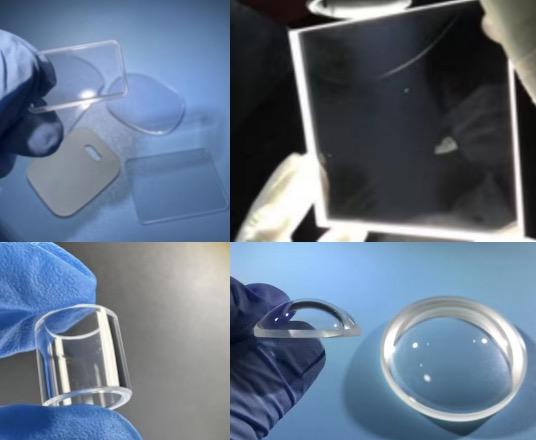

Sappjire windows:

FAQ:

Q: What's your MOQ?

A: (1) For inventory, the MOQ is 1pcs.

(2) For customized products, the MOQ is 5pcs up.

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.If not,we could help you ship them.

Freight is in accordance with the actual settlement.

Q: What's the delivery time?

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.

Q: Do you have standard products?

A: Our standard products in stock.as like 4inch 0.65mm,0.5mm polished wafer.

Q: How to pay?

A:50％deposit, left before delivery T/T.

Q: Can I customize the products based on my need?

A: Yes, we can customize the material, specifications and optical coating for your optical

components based on your needs.
