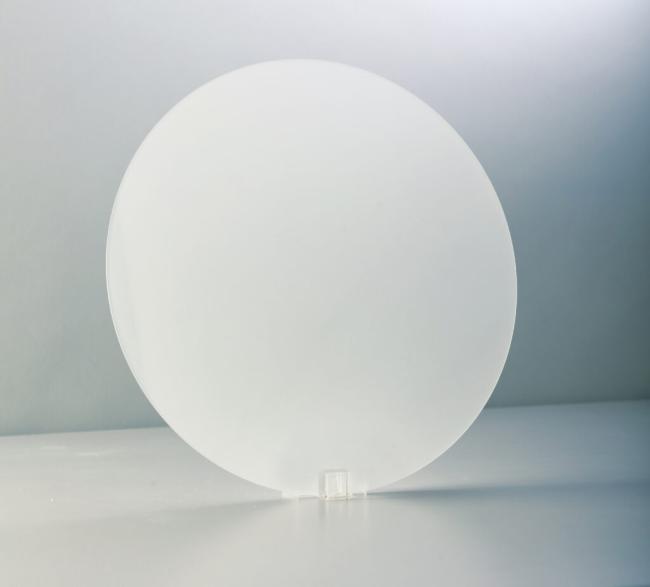

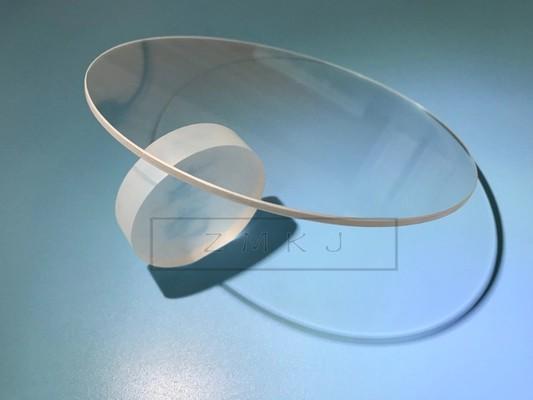

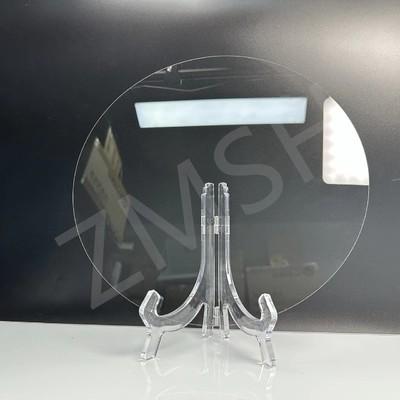

12" Sapphire Wafer 250mm Diameter (±0.5mm) 1000µm Thickness C-Plane

This 12-inch (250mm) sapphire wafer delivers industry-leading precision (±0.5mm diameter, 1,000µm thickness) and ultra-high purity (99.99%), optimized for advanced semiconductor and optoelectronic applications. The C-plane (0001) orientation ensures exceptional epitaxial growth quality for GaN-based devices, while its large diameter maximizes production efficiency for high-volume manufacturing. With superior thermal stability (>2,000°C melting point), optical transparency (85%+ from UV to mid-IR), and mechanical robustness (9 Mohs hardness), this wafer is ideal for power electronics, LEDs, laser systems, and cutting-edge quantum technologies.

Key Features of Sapphire Wafer

Sapphire Wafer's Large-Format Precision:

Diameter: 250mm ±0.5mm, compatible with 12" semiconductor fabrication lines.

Thickness: 1,000µm ±15µm, engineered for mechanical strength and process uniformity.

Sapphire Wafer's Ultra-High Purity (4N):

99.99% pure Al₂O₃, eliminating impurities that degrade optical/electrical performance.

Sapphire Wafer's Exceptional Material Properties:

Thermal Stability: Melting point ~2,050°C, suitable for extreme environments.

Optical Clarity: >85% transmission from 350nm to 4,500nm (UV to mid-IR).

Hardness: 9 Mohs, resistant to scratches and chemical corrosion.

Sapphire Wafer's Surface Quality Options:

Epi-ready polish: Ra <0.3nm (AFM-measured), ideal for thin-film deposition.

Double-side polishing available for precision optical applications.

Applications of Sapphire Wafer

Sapphire Wafer in Advanced Optoelectronics:

GaN-based LEDs/Laser Diodes: Blue/UV LEDs, VCSELs for LiDAR and 3D sensing.

Micro-LED Displays: Uniform substrates for next-gen AR/VR screens.

Sapphire Wafer in Power & RF Devices:

5G/6G Power Amplifiers: Low dielectric loss at high frequencies.

HEMTs and MOSFETs: High-voltage transistors for electric vehicles.

Sapphire Wafer in Industrial & Defense:

IR Windows/Missile Domes: Transparency in harsh environments (e.g., aerospace).

Sapphire Sensors: Corrosion-resistant covers for industrial monitoring.

Sapphire Wafer in Emerging Technologies:

Wearable Tech: Ultra-durable cover glass for smartwatches.
