Custom-Shaped Quartz Glass Plates For High-Temperature And Corrosive Environments JGS1/JGS2
Custom-Shaped Quartz Glass Plates for High-Temperature and Corrosive Environments
Introduction of quartz glass plates
Our custom-shaped quartz glass plates are engineered for extreme-performance environments where traditional materials fail. Made from ultra-pure fused silica (SiO₂ ≥ 99.99%), these plates offer exceptional resistance to high temperatures, rapid thermal cycling, chemical corrosion, and optical degradation.
From protective windows in plasma chambers to UV-transparent covers in photonics and chemical-resistant viewports in analytical systems, we provide precision-fabricated quartz plates tailored to your exact specifications—shape, size, thickness, finish, and performance.
Applications of quartz glass plates
Our quartz glass plates are used across diverse industries where clarity, strength, and resistance to heat and corrosion are mission-critical.
1. Vacuum and Thermal Furnaces
Quartz plates are used as viewports or insulation barriers in vacuum chambers and high-temperature tube or muffle furnaces.
2. Semiconductor Fabrication
Quartz components serve as cover windows, carrier substrates, or chamber liners in CVD, PECVD, and dry etch processes.
3. UV and IR Optical Systems
Because quartz transmits from deep UV (200 nm) to infrared (3.5 μm), it’s ideal for UV curing, laser optics, and thermal imaging.
4. Chemical Processing and Fluid Analysis
Used as reaction windows, flow cell covers, or sensor shields in highly corrosive or acidic conditions.
5. Solar & Green Energy Systems

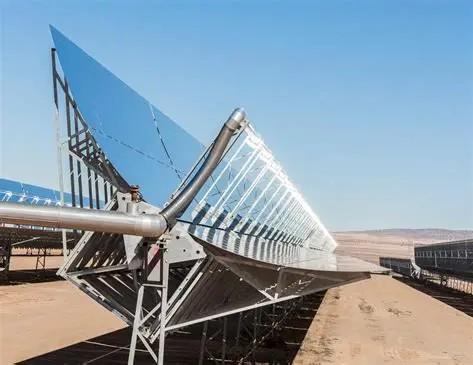

Quartz serves as light-transmitting covers for CSP tubes, PV concentrators, or high-performance solar receivers.
6. Aerospace and Defense
In harsh or high-altitude conditions, quartz shields thermal sensors, targeting optics, or onboard analytical equipment.
7. Analytical and Medical Instruments

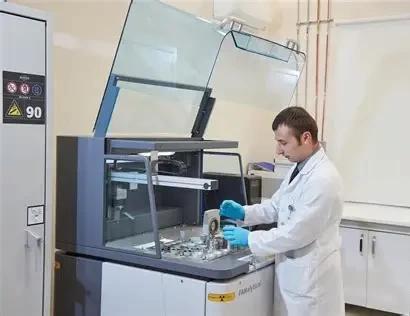

Used as transparent, inert windows or sample holders in XRF, spectroscopy, TGA, or bioassay setups.
Key Features of quartz glass plates
Ultra-High Purity Material
- ≥99.99% SiO₂ fused quartz
- No metallic impurities, ideal for cleanroom and semiconductor use
Thermal Resistance
- Continuous working temperature: up to 1100°C
- Shock-resistant for rapid heating and cooling cycles
Chemical Inertness
- Resistant to acids, alkalis, solvents, halogens, and plasma
- Ideal for aggressive or reactive gas/vapor environments
Broad Optical Transmission
- Transmission from 200–3500 nm
- Custom coatings available (AR, UV, IR)
Custom Shape Options

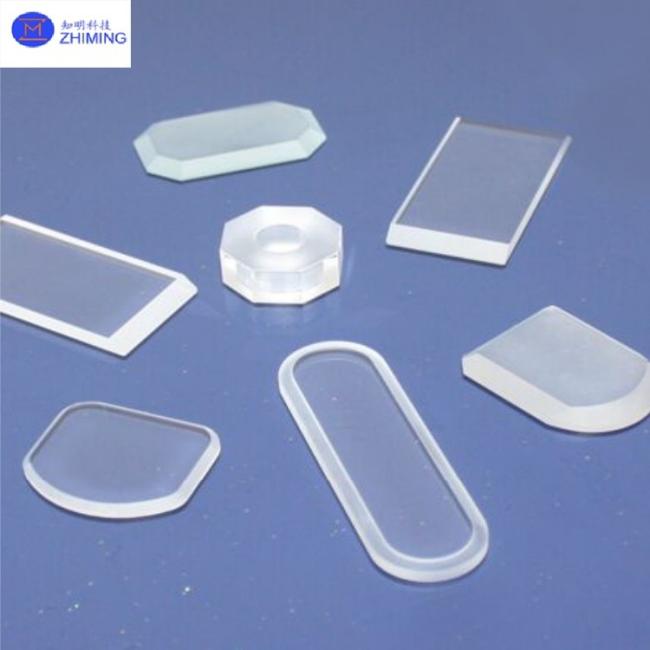

- Round, square, oval, slotted, hexagonal, multi-aperture
- Edge options: beveled, chamfered, ground, or polished
Precision Surface Finish
- Optical polishing: λ/10 flatness, <5Å surface roughness
- Machining tolerances up to ±0.01 mm
Specifications of quartz glass plates
| Parameter | Typical Range |
|---|---|
| Material | High-purity fused quartz (≥99.99% SiO₂) |
| Shape Options | Circular, square, rectangular, elliptical, custom |
| Thickness | 0.5 mm – 20 mm (others on request) |
| Dimensions | ≤600 mm per side (larger sizes customizable) |
| Optical Transmission | 200 nm–3500 nm; >92% in visible range |
| Flatness | λ/4 to λ/10 (custom optics) |
| Surface Quality (Scratch/Dig) | Up to 10/5 per MIL-PRF-13830 (optional) |
| Tolerance | ±0.1 mm standard; ±0.01 mm on request |
| Refractive Index (at 589 nm) | ~1.458 |
| Coefficient of Thermal Expansion | ~0.55 × 10⁻⁶ /°C |
| Continuous Use Temperature | 1100°C |
| Softening Point | ~1730°C |
| Certification | RoHS, REACH, ISO9001, material traceability |
Q&A
Q1: Can I get a custom hole, notch, or slot in the quartz plate?
Yes! We support precision CNC cutting, laser drilling, and shaped edges according to your CAD drawing or specifications.
Q2: Are coatings available for better optical performance?
Yes. We offer anti-reflective (AR), UV-enhancing, IR-pass, and protective coatings. Dual- or multi-band coatings are also available.
Q3: Do you support large batch production?
Yes! We provide volume manufacturing, including tooling and private labeling for OEM customers.
Our Services
Beyond materials, we offer a complete suite of engineering and fabrication services to help you bring your design to life.
Custom Fabrication
- CNC machining, edge processing, hole drilling, complex shaping
- Shape options: round, square, oval, trapezoidal, flanged
Surface & Coating Services
- Optical polishing (λ/10), scratch/dig 10/5
- AR, UV-enhanced, IR-pass, or custom multi-layer coatings
- Etching, surface patterning, or branding available
OEM Manufacturing & Large-Scale Production
- Small to high-volume runs
- Private label and part serialization
- Mold/tooling development for high consistency
Inspection & Clean Packaging
- Cleanroom-ready packaging
- Inspection reports (optical, dimensional, flatness)
- Vacuum or nitrogen-purged packaging available
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
