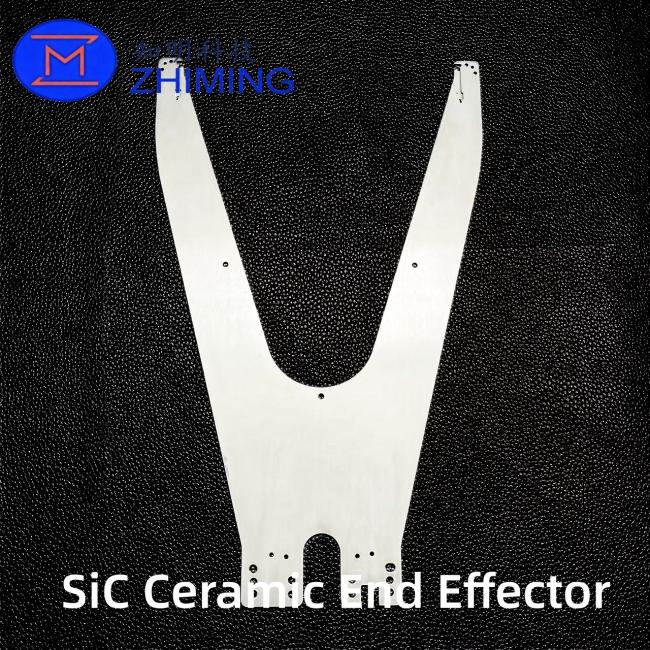

SiC Ceramic End Effector for Wafer Handling - Corrosion & Heat Resistant for Semiconductor Processing
SiC Ceramic End Effector for Wafer Handling - Corrosion & Heat Resistant for Semiconductor Processing
Product Overview:
Our High Purity SiC Ceramic End Effector is engineered for precise and reliable wafer handling in semiconductor manufacturing processes. Made from high-purity Silicon Carbide (SiC), this end effector is designed to withstand the extreme conditions commonly found in semiconductor processing, such as high temperatures, corrosive chemicals, and plasma environments. With its exceptional thermal and chemical resistance, the SiC end effector ensures superior performance, safety, and longevity in handling delicate semiconductor wafers.
This end effector is essential for various critical operations, including wafer transport, etching, deposition, and testing. It provides dimensional accuracy, mechanical strength, and low particle generation, which are crucial for maintaining the integrity of the semiconductor devices during production.
Key Features:
-
Material: High-purity Silicon Carbide (SiC) ≥99% purity
-
Thermal Resistance: Withstands temperatures up to 1600°C (2900°F)
-
Chemical Resistance: Excellent resistance to acids, bases, and plasma environments
-
Mechanical Strength: Flexural strength > 400 MPa, providing high rigidity and durability
-
Low Particle Generation: Ensures cleanroom compatibility, reducing risk of contamination
-
Customizable Sizes: Available for 4", 6", 8", 12" wafer handling, with options for custom designs and slots for robotic arm compatibility
-
Surface Finish: Available in polished or matte finish based on user requirements
-
Cleanroom Grade: Suitable for use in Class 1–100 cleanrooms, ensuring optimal cleanliness in semiconductor processing environments
Applications:
-
Wafer Handling: Safe and precise handling of semiconductor wafers during various manufacturing stages
-
Semiconductor Processing: Ideal for high-temperature and chemical-intensive environments such as etching, deposition, and testing
-
Robotic Arm Compatibility: Designed for easy integration with robotic arms used in wafer transportation and manipulation
-
Package Testing and Chip Sorting: Provides reliable performance in wafer sorting and testing processes
Product Specifications:
| Parameter | Specification |
|---|---|
| Material | High-purity SiC (≥99%) |
| Size | Customizable (for 4–12 inch wafers) |
| Surface Finish | Polished or matte finish as required |
| Thermal Resistance | Up to 1600°C |
| Chemical Resistance | Resistant to acids, bases, and plasma |
| Mechanical Strength | Flexural strength > 400 MPa |
| Density | D=3.21 g/cm³ |
| Resistivity | 0.1–60 ohm·cm |
| Cleanroom Grade | Suitable for Class 1–100 |
FAQ - SiC Ceramic End Effector for Wafer Handling
1. What is the material used for the SiC Ceramic End Effector?
-
The SiC Ceramic End Effector is made from high-purity Silicon Carbide (SiC), with a purity of ≥99%. This material provides excellent thermal resistance, mechanical strength, and chemical stability, making it ideal for harsh semiconductor processing environments.
2. What applications are the SiC Ceramic End Effector suitable for?
-
The SiC Ceramic End Effector is ideal for wafer handling, semiconductor processing (etching, deposition, testing), and robotic arm integration. It is also used in package testing and chip sorting.
3. Is the SiC Ceramic End Effector compatible with cleanroom environments?
-
Yes, the SiC Ceramic End Effector is suitable for use in Class 1–100 cleanrooms, ensuring its compatibility with ultra-clean semiconductor manufacturing environments.
