Round Optical Synthetic Sapphire Rod 1 - 200 Mm Length With White Color
2inch C-plane sapphire ingot for led, dia 3inch 5inch 6inch Al2O3 single crystal block, 2inch 4inch 6inch sapphire plate for watch ＆optical lens,sapphire led ingot , sapphire round optical rod
1. Description For Sapphire
Sapphire is made from 99.999％ Al2O3 and is one of the hardest materials, it possesses
very good transmission during the range ofvisible and near IR spectrum. so it is widely used
as optical window in infrared and far infrared military equipments, apparatus and instruments
of satellite and space technology, and navigation and spaceflight, such as night infrared scope
sight and night vision camera, etc.

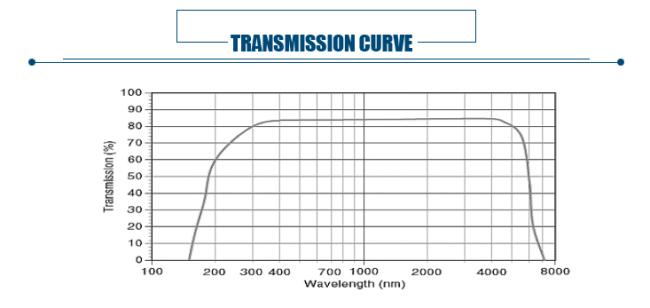

The wavelength of worldhawk general windows substrate(without coating)
-------------------------------------------------------------------------------------------------------------------------------------
About sapphire,so we can supply professional customized service in time and provide cooperation
and support of newproduct development and technology appliance.

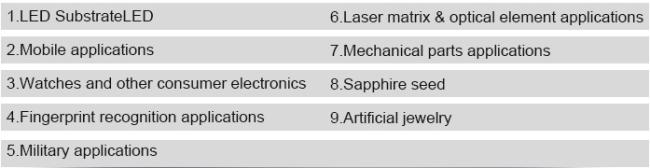

2. Typical Applications
3. Specifications of Sapphire Ingot
diameter: dia1inch (25.4),2inch(50.8), 3inch (76.2) dia4inch(100mm),dia5inch (125mm),
6inch (dia150mm),8inch (dia200mm) each ok!
| Material | Mono-crystalline Sapphire (Al2O3) | |
| Growth Method | Kyropulos or other growth methods on agreement | |
| Purity | >= 99.996% (Ti content <=4 ppm) | |
| 2inch diameter | 4inch and 5 inch 6inch diameter | |
| Orientation | C-plane(0001) ±0.1° | C-plane(0001) ±0.1° |
| Primary Flat Orientation | A-plane ±0.1° | A-plane ±1° |
| Primary Flat Length (mm) | 16±1mm | 31mm,42.5±1mm,47.5±1mm |
| Secondary Flat | On request | On request |
| Diameter (mm) | 50.8 ±0.1mm | Dia100mm or 125mm or 150±0.1mm, |
| Thickness (μm) | >=50 | >=60 |
| Surface Roughness Ra (μm) | W20 carborundum grind | W20 carborundum grind |
| Chips (flaws) | none | none |
|
Crystal Defects (inclusions, twins, cracks, bubbles, scattering centers) |
None | NONE |
| Treatments | High temperature annealed | no crystal coloration |

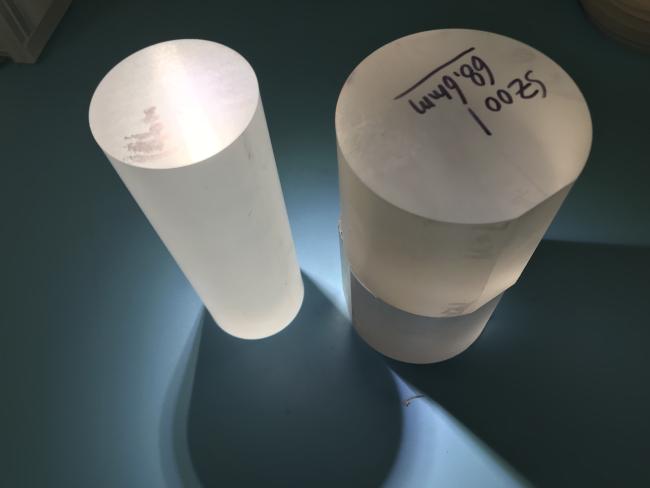

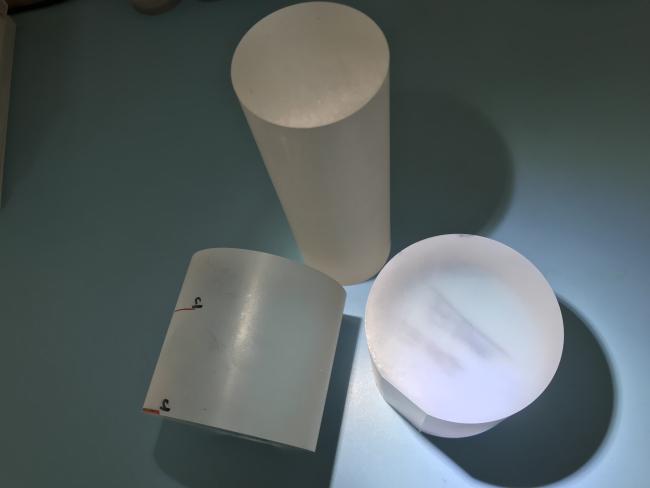

4. sample In Details

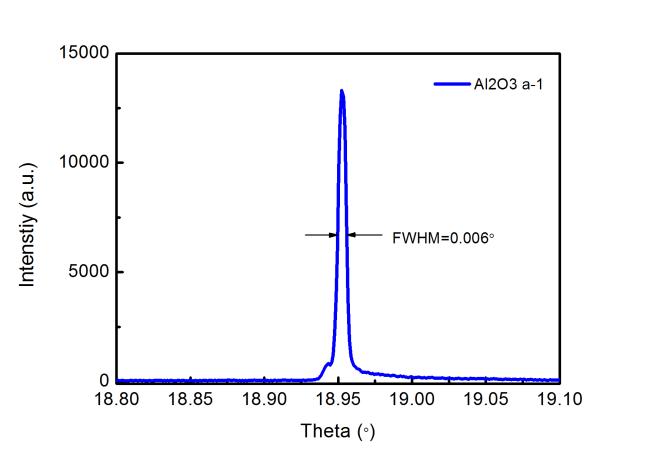

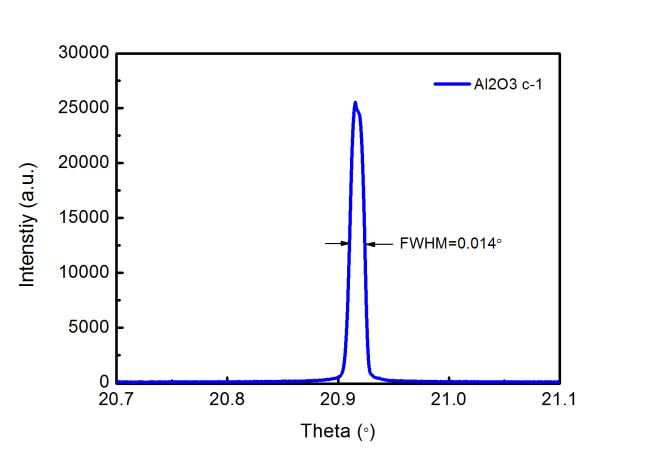

The XRD Test Date for Our Sapphire Wafer
5.Shipment ＆ package by plastic case box

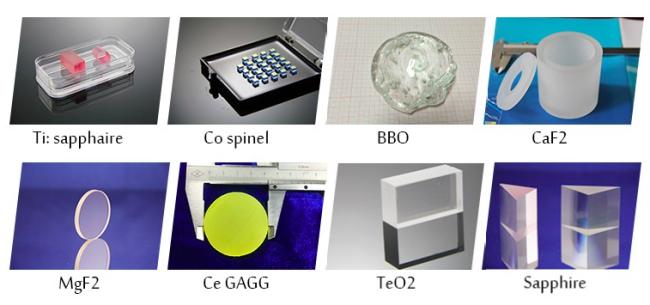

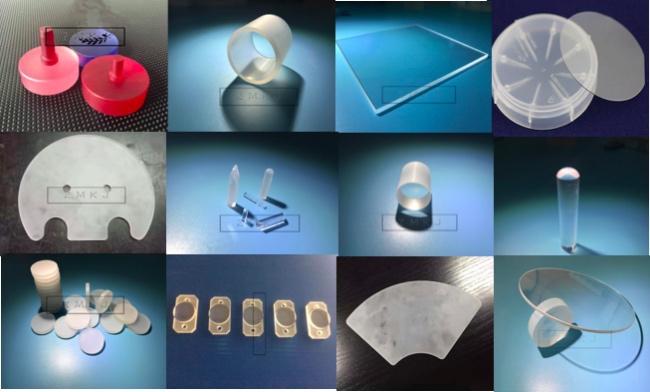

6. Some Other materials optical which we also can provide
