Custom Size Ceramic Substrate / Silicon Carbide Ceramic Excellent Corrosion
Silicon Carbide Ceramic SIC Cylinder,SIC ceramic parts, customized polishing silicon carbide ceramic bearing ring
1. Introduction:
Silicon Carbide(SIC) is an excellent corrosion and abrasion resistance material.
It is suitable for strong acid and base circumstance .Today the silicon carbide is
widely used in abrasives, refractories, ceramics, and various high-performanceapplications.
Silicon Carbide Features
High bending strength
High corrosion and wear resistance
Low density
High hardness
High thermal conductivity
Low coefficient of linear expansion
Excellent thermal shock resistance
low thermal expansion
Silicon Carbide Applications
Ceramic roller
Ceramic ball
Ceramic foam filter
Ceramic plunger
Ceramic piston
Ceramic foam board
Ceramic bushing
Ceramic parts
| Silicon Carbide Specification | ||
| ITEM | UNITY | DATA |
| Color | —— | Black |
| Density | g/cm3 | 3.2 |
| Hardness | HRA | 90-94 |
| Bending Strength | MPa | 400 |
| Fracture Toughness | MPa/m | 4 |
Thermal Expansion | x10-6/°C | 3.7 |
Thermal Shock | °C | 400 |

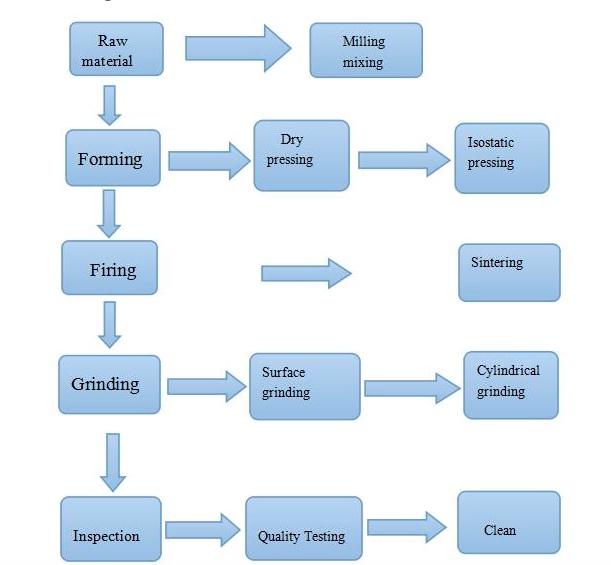

Process Step For Ceramic Products
Polishing Service
Our product can be polished(single and double polish) by the advanced machine which imported
from abroad. Ceramic substrate surface roughness can reach to 1nm without porous after being polished.
It is perfectly suitable for the device application of small spec, high precision , wiring density and good stability.
