5 ~ 100 CBM LPG Skid Tank , Q345R Carbon Steel Liquefied Petroleum Gas Tank
5~100cbm LPG Skid Tank Q345R Carbon Steel LPG Storage Tank LPG Tank for Sale
LPG Tanks Technical Specifications
| Parameter | ||
| Tank | Tank name | LPG storage tank |
| Overall dimensions | 13024*3244*3830 mm | |
| Inner diameter | 3200mm | |
| Vessel type | on the ground | |
| Designing pressure | 1.91 Mpa | |
| Working pressure | 1.61 Mpa | |
| Designing temperature | -19~50 | |
| Filling medium | Liquid petroleum/propane gas | |
| Corrosion margin | 1.00 mm | |
| Curb weight | 49400kg | |
| Full capacity | 100m³ | |
| Heat treatment | Bulk | |
| Filling factor | 520 Kg/ m³ | |
| Tanker & pressure parts material | Q345R | |
| Hydraulic test pressure | 2.22 Mpa | |
| Gas tight test pressure | 1.91 Mpa | |
| Produce standard | ASME standard and GB150 standard | |
| Optional accessories | safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
| Liquid indicator | Model | UHZ-518C14 |
| Version | Magnetic | |
| Nominal pressure | 2.5 Mpa | |
| Scope of testing | 50~2500 mm | |
| precision | 2.5 | |
| Safety Valve | Model | A42F-2.5-80 |
| Version | Built-in | |
| Nominal pressure | 2.5 Mpa | |
| Nominal radius | DN80 | |
| Opening pressure | 1.68-1.76 Mpa | |
| Re-seating pressure | ≥0.8 Mpa opening pressure | |
| Handling System | Feed pipe | DN80 |
| Drain pipe | DN80 | |
| Admission port | DN50 | |
| Sewage outfall port | DN80 | |
| Vent nozzle port | DN80 |

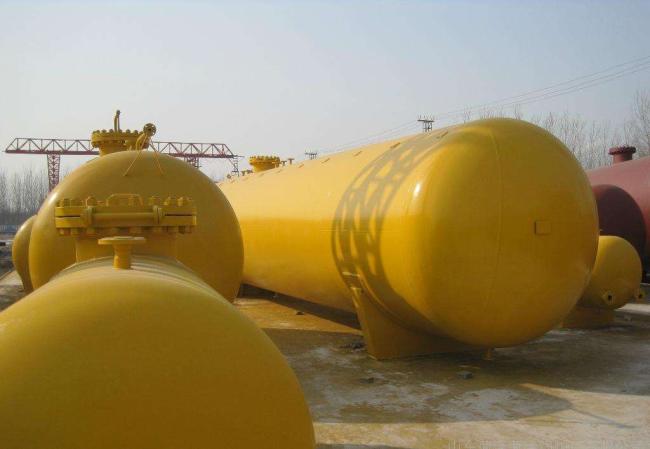

Describe For LPG Storage Tank:
Warranty and after-sale service
Liquefied petroleum gas(LPG)storage tank with compressed gas or liquefied gas storage tanks.
Sitong promises the top quality of every set of machine and best after-sales service as followings:
(A) The boiler body guarantee is two years , for accessories three years
(B) During the guarantee period , if the main body defective or broken without wrong operating ,
Sitong must replace the parts for free or prepare the spare-parts for free.
(C) Sitong should provide boiler technical service and operation guidance for whole life long.
(D) Regarding to the installation and training , the buyer should take all thecorrelative charges
(accommodation and food , round -trip tickets)

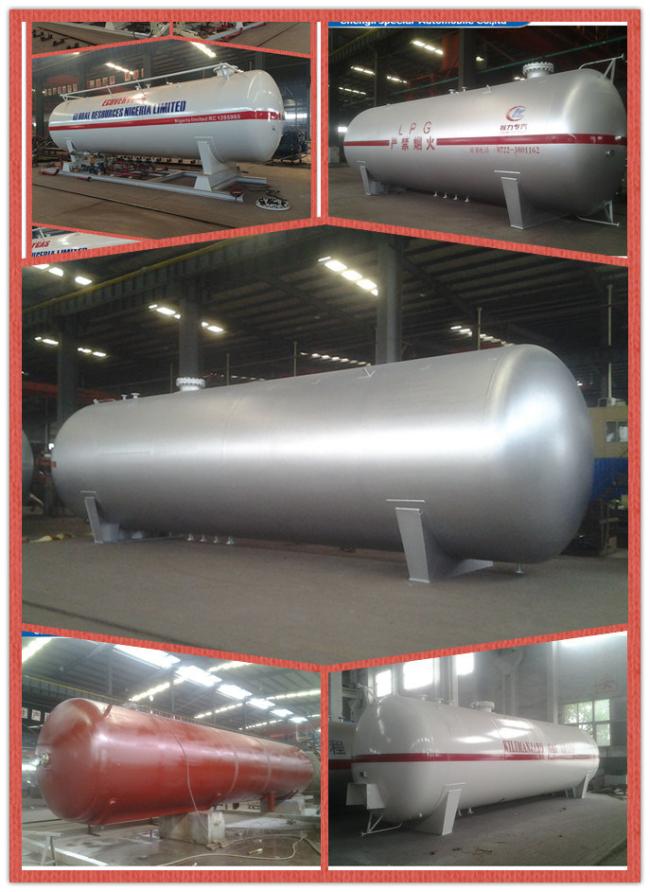

LPG Tank Produce Progress Details

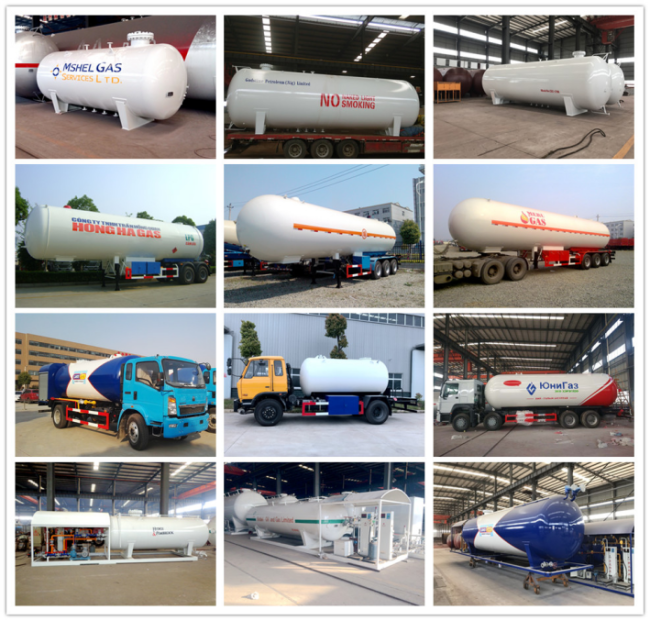

LPG Skid Tank Relevant Products
