20000L LPG Gas Storage Tank 20m3 Filling Station 10 Ton With Double Nozzle Dispenser
20000 Liters LPG Gas Filling Tanker Skid Tank Station 10tons with Filling Scale or Dispenser
The horizontal storage tank is a special equipment for storing liquefied petroleum gas (LPG) with saturated vapor pressure lower than 1.77 Mpa at 50℃ and the safety storage capacity of 2T-100T. The tank is designed in accordance with the requirements of Safety Technology Supervision Regulations for Pressure Vessel and Steel Pressure Vessel (GB150).
Technical parameters for lpg tank skid
| Item No. | Parameters |
| Tare Weight (kg) | 5050 kg |
| Filling Capacity (kg) | 10000 kg |
| Thickness of Shell (mm) | 12 |
| Thickness of Endplate (mm) | 12 |
| tank cylinder diameter (mm) | 2100 |
|
External Dimensions (mm) (length×width×height) |
6154*2124*2714 |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas |
| Design Pressure | 1.77MPa ( 256.65 Psi) |
| Corrosion Allowance | 1 mm |
| Medium Density | 550 kg/ cbm |
Accessory list for lpg tank skid
| Item | Model Number | Quantity |
| LPG Tanker | 20cbm/ 20liters | 1 piece |
| Electronic cylinder Filling machine | BCS-150 | 1 unit |
| Filling Pump | YQB15-5 | 1 Piece |
| Motor | 5.5KW | 1 Piece |
| Dispenser | LPG Dispenser RT-LPG112B | 1 Piece |
| Pipes | / | 1 sets |
| Cut-off Valve | J41N-40 DN50 | 8 Pieces |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Ball floating level gauge | UZFAL-2.5RF2640-0.50 | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Flange | 2.5MPaDN15 | 14 Pieces |

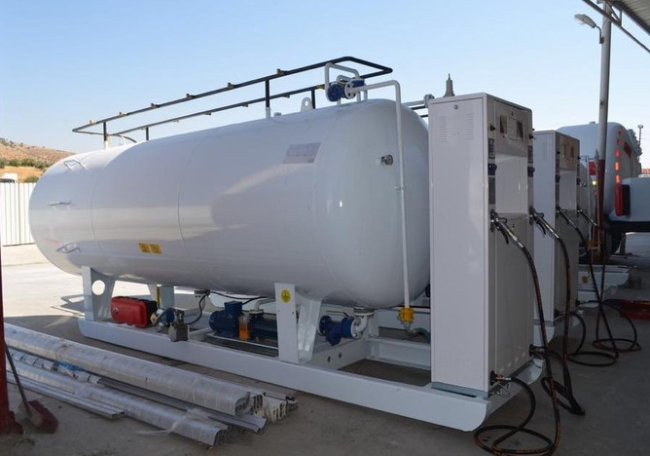

Detailed pics for lpg tank skid
RFQ
1, How to purchase the LPG gas tank,tank truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.
2, How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Bossgoo Group has conducted field certification for our factory.Finally,You can entrust third party individuals or organizations to inspect our products before delivery.
we also have ASME and CCS certisfacation for exporting LPG tanks and ISO container.
3, How to visit your factory?
After you arriving at China, you can fly to Wuhan airport. Wuhan airport is located in Wuhan City, Hubei Province. Our driver will meet you at Wuhan airport and take you to our city by car.
