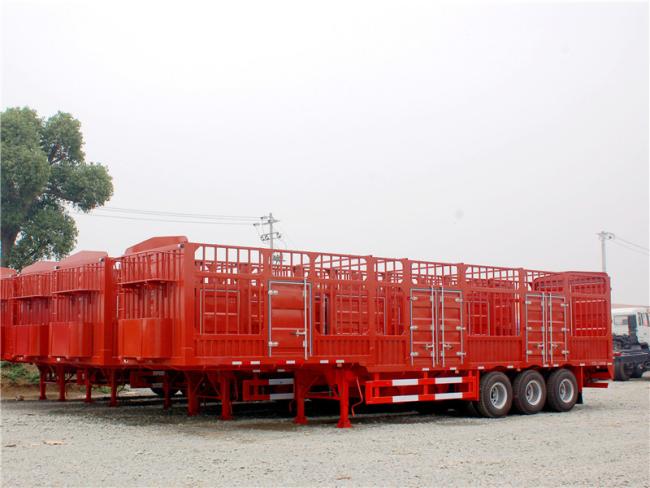

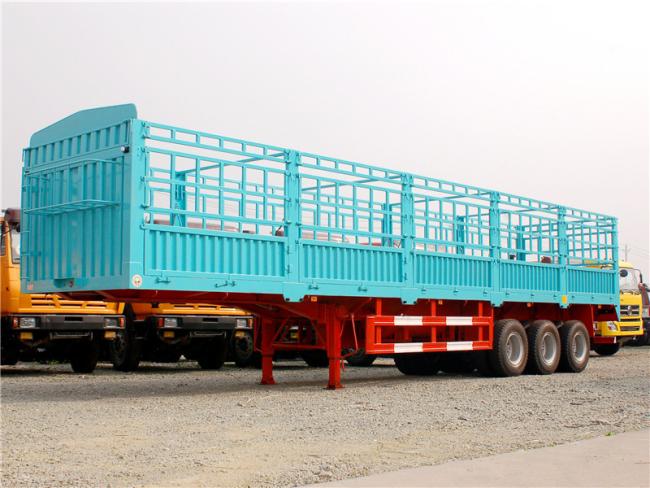

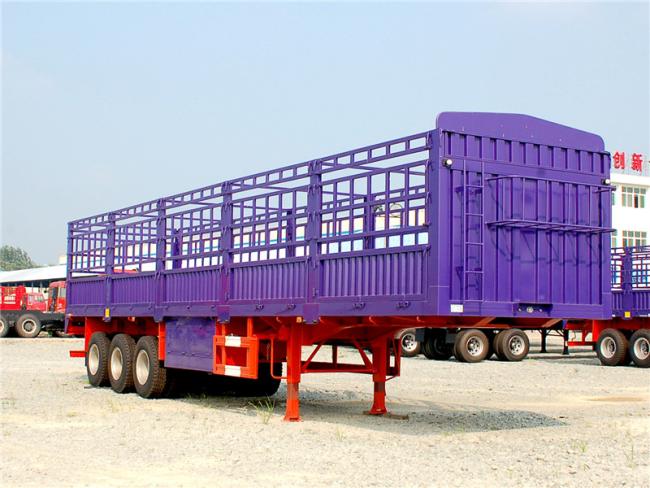

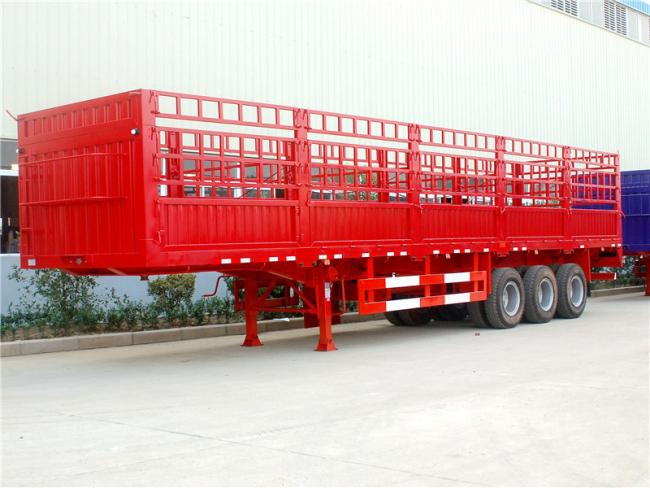

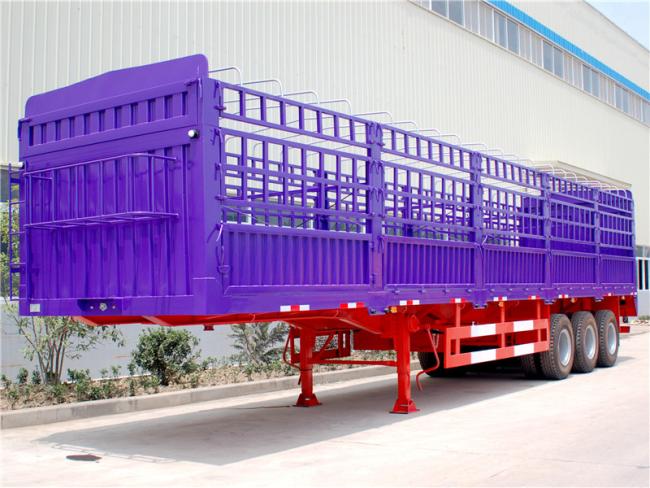

40T 45T 40 Ft Semi Trailer , 3 Axle Container Semi Trailer For Warehouse / Storehouse
Price:
15000-19800USD/set
MOQ:
1
Delivery Time:
25-30 days after receiving the deposit
Product Description
The specification of 40ft container loading trailer 3 axle storehouse semi trailer for sale. Factory sale 3 axle storehouse trailer Warehouse Semi-Trailer with Gooseneck, 3 axle 40ft container semi trailer 45tons 50tons warehouse semi trailer for sale
DIMENSIONS
| Product Information | |||||
| Product | Store House fence semi trailer | ||||
| Brand Name | CSC Brand | ||||
| Announcement (batch) | 229 | ||||
| Place of Origin | Hubei province, China | ||||
| Color | Any color will be available | ||||
| Manufacturer | Xiagong Chusheng special vehicle manufacturing Co., Ltd | ||||
| Specifications | |||||
| Parameter | |||||
| Outside Dimensions (L*W*H) | (6000-17000)*2500*1550mm | ||||
| Rated Load | 45000 kg | ||||
| Tare Weight | 7000 kg | ||||
| Wheel Base | 8390+1310+1310 (mm) | ||||
| Twist lock No | 12 | ||||
| Running Gear | |||||
| Tires | specification | 12R22.5-18 | |||
| No. of tires | 8/12/16 | ||||
| Spare tire carriers | 1 or 2 | ||||
|
Axles
|
Brand | FUWA (BPW optional) | |||
| No. of axles: | 2/3/4 | ||||
| Axle-load | 13000kg | ||||
| Wheel rim | 7.50-20 rim or 8.00 | ||||
| Suspension | rigid suspension,10 pcs leaf-spring | ||||
| Brakes | brand | TKL brand | |||
| Brake chamber | double air chamber | ||||
| System | Dual line braking system /ABS | ||||
| Under Frame | |||||
| Departure Angle | 16 | ||||
| Front/Rear Overhang | 1890mm | ||||
| Main Beam | material | I beam ,Q345B, automatic submerged arc welded | |||
| specification | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm | ||||
| Cross Beam material | Q235B | ||||
| Side beam | Channel steel | ||||
| Plate form | Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm) | ||||
| King Pin | 50# or 90# | ||||
| Landing gear | 28Ton | ||||
| Accessory | One tooling box with a set of standard trailer tool | ||||
| Electrical | |||||
| Voltage | 24V | ||||
| Receptacle | 7 ways (7 wire harness) | ||||
| Lights | Front corner marker lamp :red ;reflector lamp :white | ||||
| Side marker :orange | |||||
| Rear lamp :red; rear reflector :white; turn single lamp :orange | |||||
| Painting ,marking and side guard can according to the customer’s requirement | |||||
