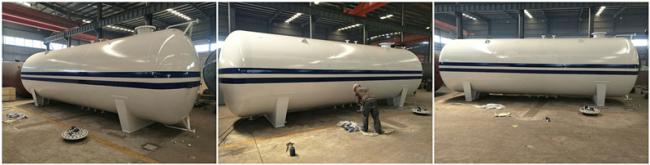

25 Tons LPG Storage Tanks 50 cbm 50000 Liters Propane Gas Tank For Storage
Price:
Price negotiable
MOQ:
1 Unit
Delivery Time:
15-30 work days
Product Description
LPG Tanker 25tons LPG Gas Tank 50cbm Propane Gas Tank 50, 000liters LPG Tank
Part 2. LPG Tank Technical Parameters:
| Specification Of 50CBM/25TON LPG Tank | |||
| Volume of Tank | 50CBM 50,000liters | ||
| Filling Weight | 19950kg | ||
| Tank Weight | 10640kg | ||
| Thickness of Shell (mm) | 14mm | ||
| Thickness of Endplate (mm) | 16 mm | ||
| Tank Diameter (mm) | 2700 mm | ||
| External Dimensions (mm) (L x W x H) | 9182x2728x3318mm | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard:Pressure vessels,Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Specification Of 80CBM/40TON LPG Tank | |||
| Volume of Tank | 80CBM / 80,000liters | ||
| Filling Weight | 31920kg | ||
| Tank Weight | 17000kg | ||
| Thickness of Shell (mm) | 16 mm | ||
| Thickness of Endplate (mm) | 18 mm | ||
| Tank Diameter (mm) | 3100 mm | ||
| External Dimensions (mm) (LxWxH) | 11166x3132x3722 mm | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard:Pressure vessels,Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
 |
|||
| Main parts Of LPG Tank | |||
| Item | Specification | Quantity(pc) | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.Skid Parts List will be show in separated page below. | |||
| Volume (cbm) | DN (mm) | Thickness (mm) | Quality(kg) | Overall Dimension(mm) | |||
| Shell | Head | Tank | Filling | ||||
|
Filling Mediumliquid amonia Pressure2.05MPa Corrosion Allowance2mm Medium Density520kg/m2 |
20 | 2100 | 16 | 16 | 6400 | 9880 | 6162x2132x2710 |
| 25 | 2100 | 16 | 16 | 7760 | 12350 | 7762x2132x2710 | |
| 32 | 2400 | 16 | 16 | 8920 | 15808 | 7516x2432x3010 | |
| 50 | 2400 | 16 | 16 | 13100 | 24700 | 11516x2432x3010 | |
| 50 | 2800 | 20 | 20 | 14470 | 24700 | 8620x2840x3420 | |
| 80 | 2800 | 20 | 20 | 20980 | 39520 | 13520x2840x3420 | |
| 80 | 3200 | 22 | 22 | 21710 | 39520 | 10524x3244x3830 | |
| 100 | 2800 | 20 | 20 | 26010 | 49400 | 16740x2840x3420 | |
| 100 | 3200 | 22 | 22 | 26190 | 49400 | 13024x3244x3830 | |
|
Filling MediumDimethylether Pressure 1.15MPa Corrosion Allowance1.5mm Medium Density580kg/m2 |
50 | 2700 | 10 | 12 | 8620 | 27550 | 9174x2724x3310 |
| 65 | 2700 | 10 | 12 | 10480 | 35815 | 11824x2724x3310 | |
| 80 | 2700 | 10 | 12 | 12280 | 44080 | 14454x2724x3310 | |
| 80 | 3200 | 12 | 12 | 13080 | 44080 | 10504x3224x3810 | |
| 100 | 3200 | 12 | 12 | 15560 | 55100 | 13004x3224x3810 | |
| 120 | 3400 | 12 | 14 | 17940 | 66120 | 13808x3424x4010 | |
| Material of tank | Q345R/Q370R | ||||||
| Standard | GB150 TSG R0004-2009 | ||||||
| Safety valve of selection fitting | Safety valve, column magnetic level meter, pressure gauge, thermometer, cut-offvalve | ||||||
