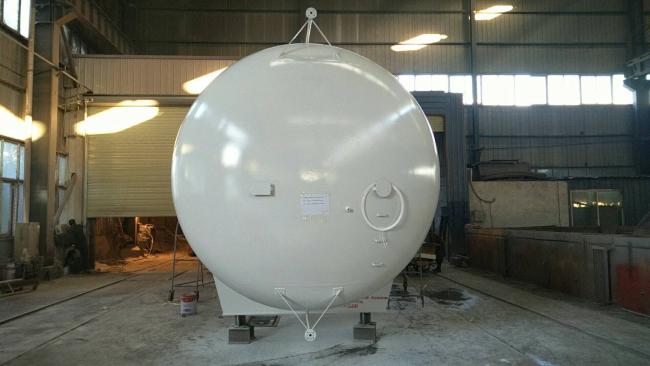

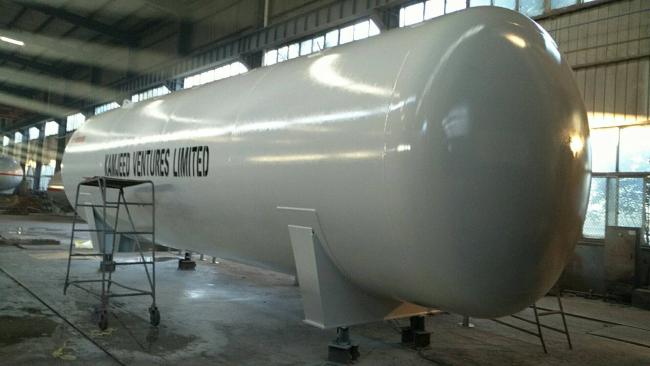

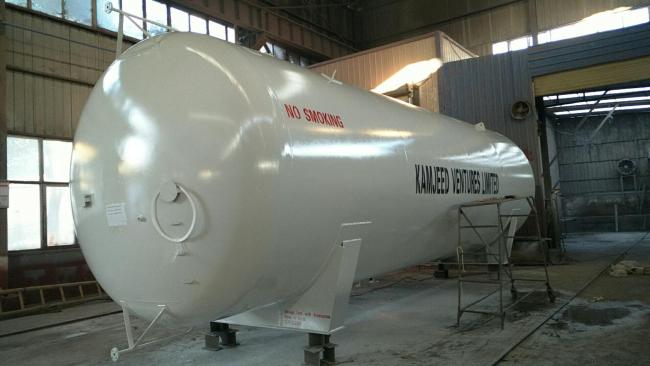

ASME Pressure Vessel LPG Storage Tanks Q345R 40m3 20 Ton Color Customized
ASME Pressure Vessel LPG Storage Tank 40m3 LPG Tank 20Ton LPG Gas Tank
Part 2. LPG Tank Technical Parameters:
|
|
LPG STORAGE TANK SPECIFICATION | ||||||
|
Capacity (CBM) |
Diameter DN |
Shell thickness (mm) |
Head thickness (mm) |
Kerb weight (kg) |
Loading Weight (kg) |
Overall dimension(mm) | |
| 5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
| 8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
| 10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
| 12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
| 15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
| 20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
| 25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
| 32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
| 50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
| 50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
| 80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
| 80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
| 100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
| 100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
| 120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
| Design pressure | 1.77MPa | ||||||
| Corrosion allowance( mm) | 1mm | ||||||
| Medium density (kg/m3) | 420kg/m3 | ||||||
| Material of tank and main pressure parts | Q345R | ||||||
| Carried standard |
Pressure vessels,supervision regulation on safety technology for stationary pressure vessels |
||||||
| Safety valve of selection fitting |
Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve |
||||||
Remark:
1 The safety valve is designed under the condition that the tank is placed under spray device whose flow is larger than 10L/m.min
2 The location dimension of pipe orifice can be setted by the user's actual place .
3 We can change reversible level meter to magnetic float ball type according to the user's requirement.
4 The data list is only for reference ,take the drawing as accuracy.
