40m3 LPG Filling Stations , ASME Pressure Vessel LPG Gas Storage Tank
Price:
Negotiable
MOQ:
1 Unit
Delivery Time:
15-30 work days
Product Description
ASME Pressure Vessel LPG Storage Tank 40m3 LPG Tank 20Ton LPG Gas Tank
LPG Tank Technical Parameters:
| Parameter of 50cbm 25Tons LPG Storage Tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 50M3 | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 9912*2628*3218mm | Tank Net Weight | 10910kg | |||
| Tank Diameter | 2600mm | Loading Capacity | 19950kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 500~590kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20℃~50℃ | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Designed Life time | 15 years | |||||
| Extra 1800 USD/SET for Accessories like follows (If you need) | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-100 | Safety Valve DN80 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40℃~60℃ | |||

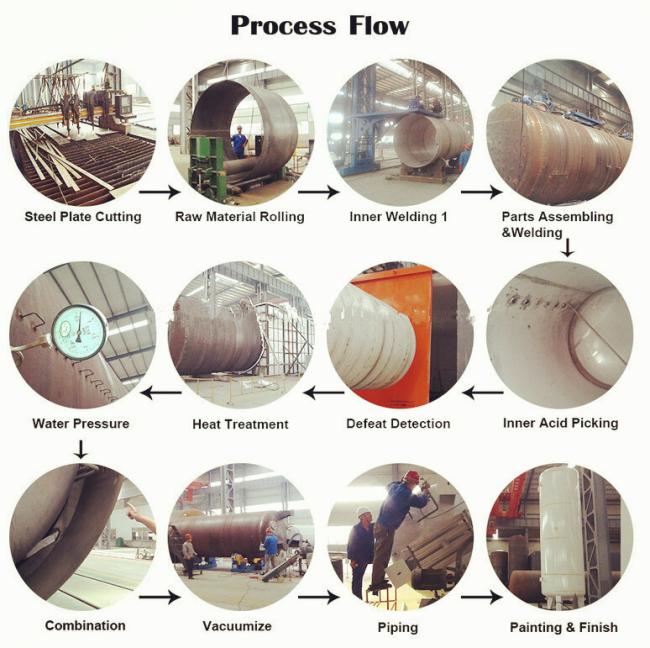

LPG Tank Progress Flow:
