Sinotruk HOWO Concrete Mixer Truck 290hp 336hp 371hp 12 Wheeler 14M3 cement mixer truck
HOWO 8X4 12M3 Concrete Mixer Truck Self Loading With Hydraulic Pump, Sinotruk HOWO 8X4 290hp 336hp 371hp 12 wheeler Cement Mixer Truck 14M3 Concrete Mixer Truck
Concrete Mixer Truck , is also called cement truck, concrete mixing truck, cement mix truck, concrete mixing transport truck, mainly used in transporting mixed concrete used in construction with mixing drum.
Product Notes:
1. This truck adopt plow shape mixing angle, perfect carbon steel, rugged wear;
2. Feed,discharge fast speed, stir well;
3. Main component adopt imported Italy equipment or Chinese brand, high quality
4. Low price
Concrete Mixer Truck Technical Parameters:
| Specifications for HOWO Concrete Mixer Truck 10 cbm | |||
| Cabin | Driving Model: 6x4 Left Hand Drive or Right Hand Drive | ||
| HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. | |||
| Condition: brand new | |||
| Engine | Model: SINOTRUK WD615.47 | ||
| Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling. | |||
| Emission Standard: Euro II | |||
| Displacement: 9.726L | |||
| Transmission | HW19710 manual gearbox, 10F & 2R | ||
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |||
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance | ||
| Front Axle | HF9, 1x9000 KGS | ||
| Steering with doubleT-cross section beam | |||
| Rear Axle | HC16, 2x16000 KGS | ||
| Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. | |||
| Ratio: 4.8 | |||
| Brake | Service brake: dual circuit compressed air brake | ||
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |||
| Auxiliary brake: engine exhaust brake | |||
| Electrics | Operating voltage: 24 V, negative grounded | ||
| Starter: 24 V, 5.4 Kw | |||
| Alternator: 3-phase, 28 V, 1500 W | |||
| Batteries: 2 x 12 V, 165 Ah | |||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |||
| Tires | 315/80R22.5 or 12R22.5, tubeless tires with one spare tire. | ||
| Optional: 12.00R20, radial tires | |||
| Fuel Tank | 400 L | ||
| Tank Body | 10 CBM, with Italy brand motor, speed reductor and hydraulic system | ||
| Overall Dimension | 9040x2496x3850 mm | ||

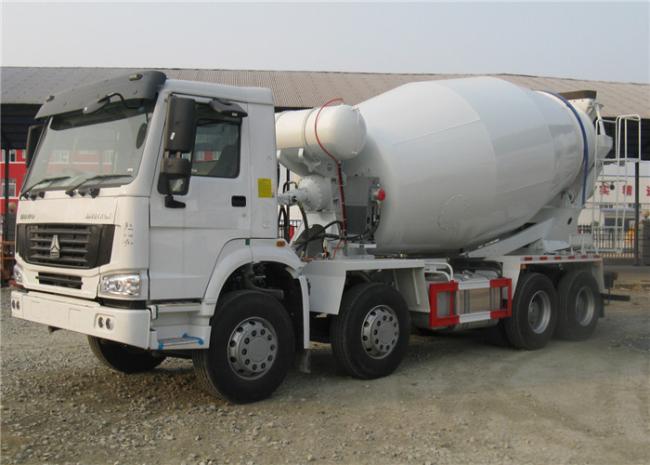

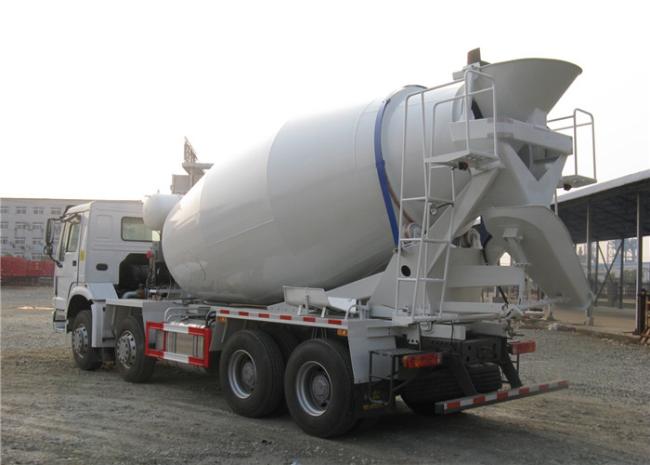

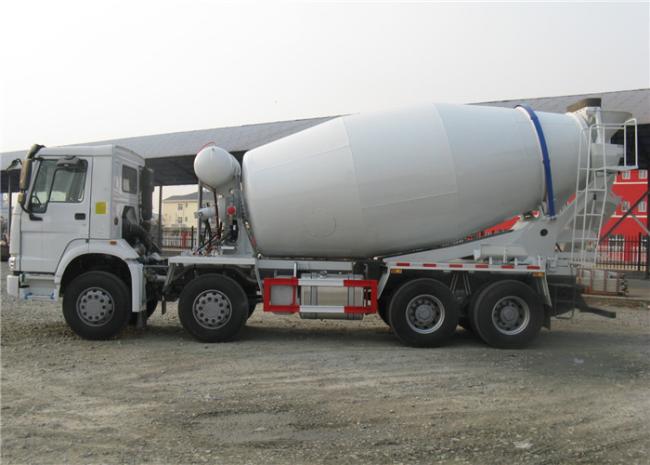

The detailed Pictures for Sinotruk HOWO 8X4 290hp 336hp 371hp 12 wheeler Cement Mixer Truck 14M3 Concrete Mixer Truck:
