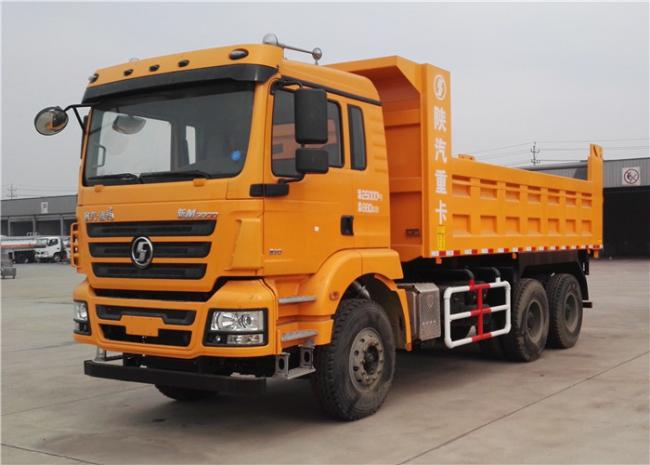

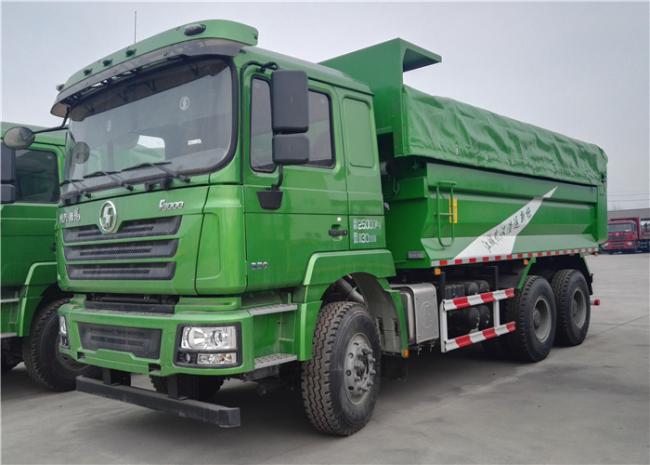

SHACMAN Dump Truck Trailer Heavy Duty F3000 6x4 Tipper Truck 10 Wheeler 25 Ton
Price:
Could be negotiated
MOQ:
1 units
Delivery Time:
35 - 40 days after receiving the deposit
Product Description
Heavy Duty F3000 6x4 Tipper Truck 10 Wheels Dump Truck 25 ton SHACMAN dump truck
1.Good price from factory
2.High quality
3.Quick delivery
4.Spare parts for sale too
SHACMAN DUMP TRUCK-SX3254JS384 (6x4,290HP)
Dump truck, also called tipper truck, which mainly use for transporting cargo,sand,or garbage.
Currently the dump truck are most off road dump truck, another kind is articulated dump truck.
Dump truck design 4*2.4*4.6*2.6*4.6*6.8*4.8*6.8*8. road dump truck, mine dump truck.
Our company produce the dump truck with the loading capacity from 3 tons ~ 40 tons.
Dimension(Lx W xH)(unloaded)(mm) |
8000×2490×3450 |
||
Approaching angle/Departure angle(°) |
28/20 |
||
Overhang(front/rear) (mm) |
1525/2055 |
||
Wheel base (mm) |
1800+1975+1400 |
||
Max speed(km/h) |
82 |
||
Curb weight(kg) |
12100 |
||
Cargo dimension(Lx W xH)(mm) |
5200×2300×1300,middle lift |
||
Engine |
Model |
WD615.50 (optional) |
|
Fuel type |
Diesel |
||
Power, max(kw/rpm) |
218/1900 |
||
Emission |
EURO 2 |
||
Fuel tanker capacity (L) |
380 |
||
Transmission |
Model |
9JSD135,9forward&2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||
Steering system |
Model |
ZF8098 German technology |
|
Front axle |
7.5ton |
||
Rear axle |
13 ton×2 |
||
Tyre |
11.00-20 |
||
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
||
Starter |
7.5Kw/24V |
||
Cab |
Delong F2000cab(Single beds),left drive,all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds,eclectic window, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
||
