80000 Liters Large LPG Storage Tanks 80 CBM 40 Tons LPG Liquid Gas Tank
Price:
Price negotiable
MOQ:
1 Unit
Delivery Time:
15-30 work days
Product Description
80000Liters LPG Storage Tank 80CBM LPG Bulk Tank 40Tons LPG Liquid Gas Tank
| Item | Unit | Parameter | ||||
| Product Name | Liquefied Gas Storage Tank | |||||
| Brand Name | Chusheng | |||||
| Model | CLG3200-120 | |||||
| Overall dimensions | mm | TBD | ||||
| Tank Dimension | DN3200*18*13800(inner dia*thickness*length) | |||||
| Fact cubage | m3 | 120 | ||||
| Fact loading weight | T | 60 | ||||
| Tank weight | 22.8 | |||||
| Working pressure | Mpa | ≤1.6 | ||||
| Testing hydraulic pressure | 2.12 | |||||
| Testing pressure for gas density | 1.77 | |||||
| Test pressure | 1.69 | |||||
| Air tight test pressure | 1.69 | |||||
| Safety valve popping pressure | 1.68 | |||||
| Working temperature | ºC | ≤50 | ||||
| Other | Tank material: 16MnR,; pressure relief valve model: HG20592-WN, open pressure: 1.68-1.76Mpa; LPG density: 0.42t/m3 . Mark dangerous caution on tank. Pressure pump with connect valve: Import filter valve, inlet cut-off valve, outlet cut-off valve, export check valve | |||||
| color | According to customer's requirement | |||||
| Nominal Diameter | Connect surface | Name | Pipe dimension | extension elongation | ||
| 3" | RF | Liquid inlet | 150 | |||
| 3" | RF | Liquid outlet | 150 | |||
| 3" | RF | gas phase outlet | 150 | |||
| 2" | RF | Air vent | 150 | |||
| 3" | RF | Drain | 150 | |||
| 4" | RF | Level gauge | ||||
| M27*2 | thread | Thermometer | 40 | |||
| M20*1.5 | thread | Pressure gauge | 40 | |||
| 18" | FM | Manhole | 220 | |||
| 4" | RF | Safty valve | 150 | |||

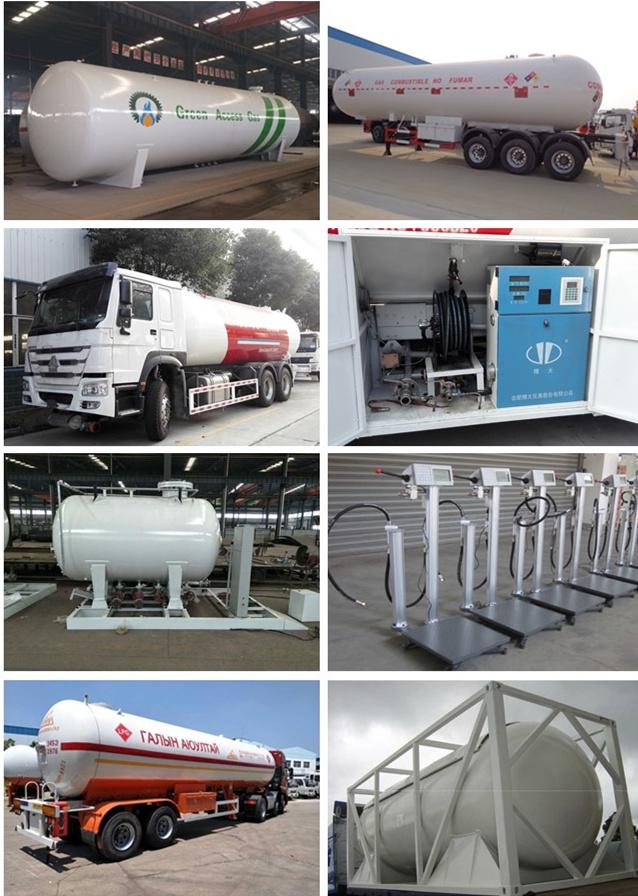

Detailed pics from different angle
