Professional Self Mixing Concrete Truck , 6X4 10m3 Ready Mix Cement Trucks
SHACMAN SINOTRUK 6X4 10m3 12M3 15M3 Concrete Mixer Truck With Hydraulic Pump
The concrete mixer truck is also called concrete truck mixer, concrete mixer truck, ready mix concrete trucks, cement mixer truck,concrete agitator, mobile concrete truck mixer,etc.

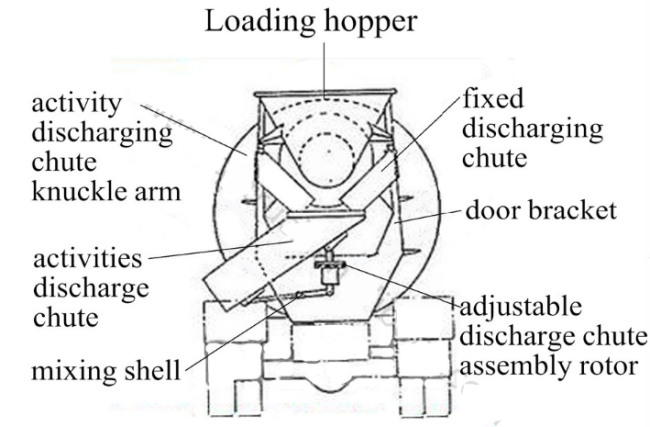

The concrete mixer truck is mainly used in concrete mixing station, construction field and other place. It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system, feed hopper, outlet hopper.
As a manufacturer of concrete mixer truck, we have 3m3 to 14m3 concrete mixer truck. The chasis is decided by the customer.SHACMAN SINOTRUK 6X4 10m3 12M3 15M3 Concrete Mixer Truck With Hydraulic Pump.
.
HW76 cabin, single sleeper, all-steel forward control, 70° hydraulically tillable to the front, 2-arm windshield wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo ratio/cassette recorder, safety belts, adjustable steering wheel, air horn, airconditioner, with 4-point support fully floating suspension and shock absorbers.
Concrete Mixer Truck Technical Parameters:
| Specifications for HOWO Concrete Mixer Truck 10 cbm | |||
| Cabin | Driving Model: 6x4 Left Hand Drive or Right Hand Drive | ||
| HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. | |||
| Condition: brand new | |||
| Engine | Model: SINOTRUK WD615.47 | ||
| Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling. | |||
| Emission Standard: Euro II | |||
| Displacement: 9.726L | |||
| Transmission | HW19710 manual gearbox, 10F & 2R | ||
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |||
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance | ||
| Front Axle | HF9, 1x9000 KGS | ||
| Steering with doubleT-cross section beam | |||
| Rear Axle | HC16, 2x16000 KGS | ||
| Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. | |||
| Ratio: 4.8 | |||
| Brake | Service brake: dual circuit compressed air brake | ||
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |||
| Auxiliary brake: engine exhaust brake | |||
| Electrics | Operating voltage: 24 V, negative grounded | ||
| Starter: 24 V, 5.4 Kw | |||
| Alternator: 3-phase, 28 V, 1500 W | |||
| Batteries: 2 x 12 V, 165 Ah | |||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |||
| Tires | 315/80R22.5 or 12R22.5, tubeless tires with one spare tire. | ||
| Optional: 12.00R20, radial tires | |||
| Fuel Tank | 400 L | ||
| Tank Body | 10 CBM, with Italy brand motor, speed reductor and hydraulic system | ||
| Overall Dimension | 9040x2496x3850 mm | ||
Brand: SINOTRUK HOWO
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Volume:10cbm
Other: 5m3-48m3 or as your demand
Driving type: 4x2 left hand drive / right hand drive
Ohter type: 4x2, 6x4, 8x4 sewage suction truck

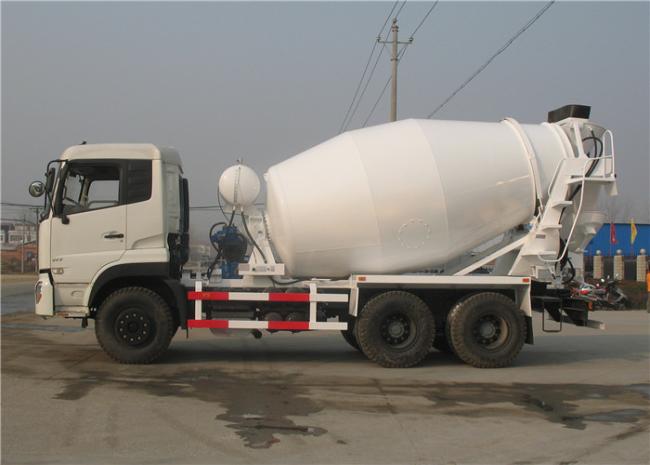

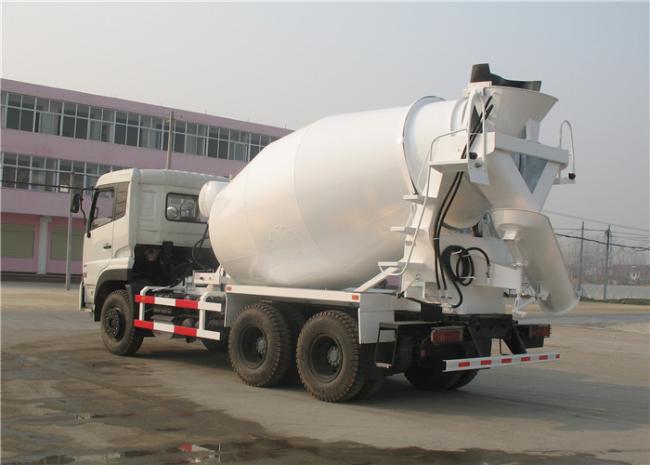

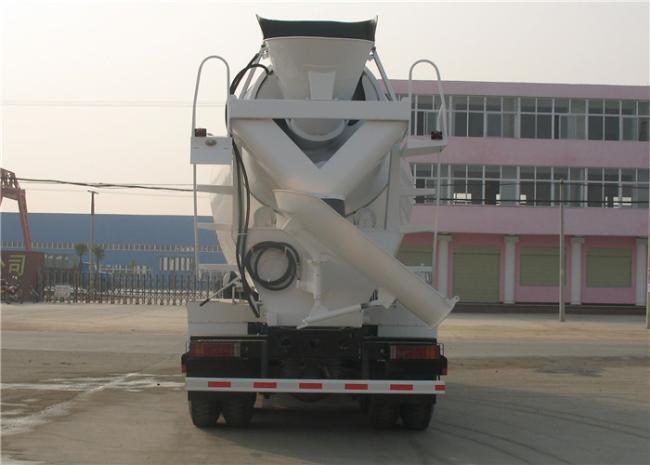

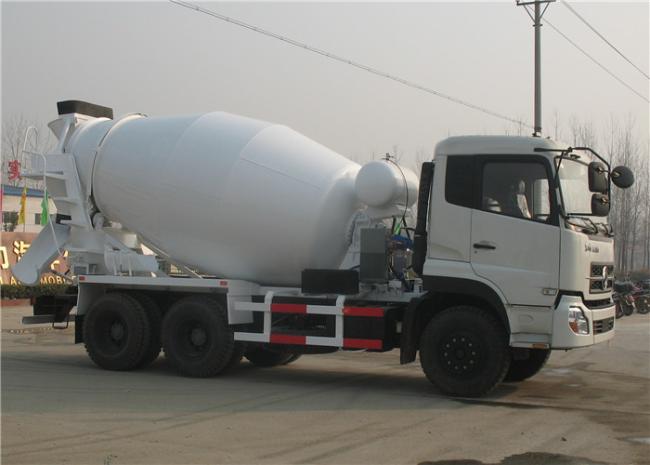

The detailed Pictures for Concrete Mixer Truck, Cement Mixer Truck:
