Professional LPG Storage Tanks 20M3 10 Tons With LPG Filling Scales OEM Accepted
20M3 LPG Gas Filling Station 10Tons LPG Skid Station With LPG Filling Scales
| ITEM | PARAMETER | ITEM | PARAMETER | ||||||||
| Volume | 20M3 10Ton | Thickness of Shell | 12mm | ||||||||
| Tank Material | Carbon Steel Q345R | Thickness of End plate | 12mm | ||||||||
| Overall Size | 6154*2124*2714mm | Tank Net Weight | 5050kg | ||||||||
| Tank Diameter | 2100mm | Loading Capacity | 7980kg | ||||||||
| Design Pressure | 1.77Mpa | Gas Density | 500~590kg/M3 | ||||||||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | ||||||||
| Design Temperature | -20ºC~50ºC | Heat Treatment | Bulk | ||||||||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | ||||||||
| Designed Life time | 15 years | ||||||||||
| Extra SET for Accessories like follows (If you needed) | |||||||||||
| Model | Item | Qty | Junction surface | ||||||||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | ||||||||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | ||||||||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | ||||||||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | |||||||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | ||||||||
| A42F-25-100 | Safety Valve DN80 | 1 | RF | ||||||||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | |||||||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | ||||||||
| model | design pressure | Cylinder size (diameter * tube length * wall thickness mm) | Dimensions (outside diameter * total height / total length mm) | Material | Total net weight(kg) | |
| 1 | 10m/10000L | 1.77MPa | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
| 2 | 15m/15000L | 1.77MPa | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
| 3 | 25m/25000L | 1.77MPa | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
| 4 | 30m/30000L | 1.77MPa | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
| 5 | 45m/45000L | 1.77MPa | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
| 6 | 50m/50000L | 1.77MPa | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
HIGH QUALITY
CHUSHENG has implemented a strict and complete quality control system, which ensures that each gas cylinder can meet quality requirements of customers, and all cylinders have been strictly inspected before shipment.
LOWER PRICE
CHUSHENG always supply the lower price! We never stop trying to find new ways to reduce the gas cylinder cost, so that we can offer our customers a competitive price. Cooperate with SEFIC, Choose a Trustworthy Partner!
QUICK DELIVERY TIME
We are committed to work hard to ensure that every shipment of the gas cylinders are safe, punctual arrival, we have a lot of partners which always provide the most rapid means of transportation.
GOOD SERVICE
CHUSHENG has different series and models, for different standards in different countries, and we are committed to providing the best service. Cooperate with SEFIC, Choose a Trustworthy Partner!
ORIGINAL Manufacturer
Cooperation with CHUSHENG to achieve the sales relationship from the manufactory to the customer, can improve the production and delivery efficiency of the gas cylinder.
LARGE OUTPUT
CHUSHENG has professional equipments for gas cylinders. We have the capability to produce more than 50, 000pcs of Gas Cylinders per month.
EXPORTING Experience
CHUSHENG has implemented a strict and complete quality control system, which ensures that each gas cylinder can meet quality requirements of customers, and all cylinders have been strictly inspected before shipment.
OEM ACCEPTED
We accept OEM work, CHUSHENG can manufacture gas cylinder handle, gas cylinder cap, gas cylinder valve, gas cylinder Mark and gas cylinder color as your required.

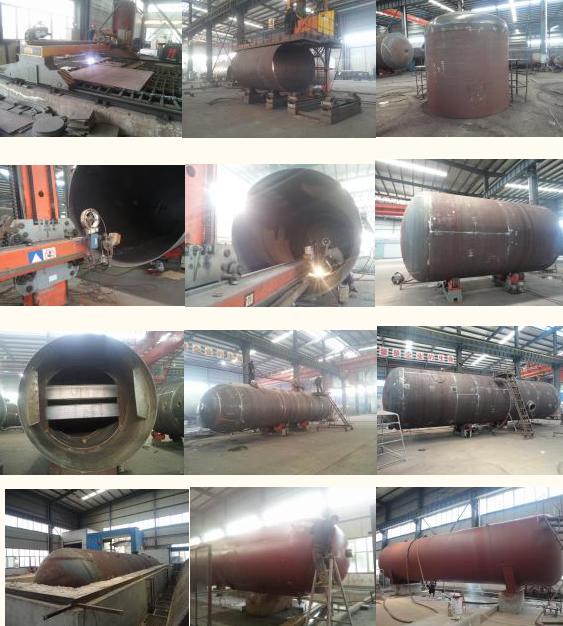

LPG Tank Progress:
We have made the national A2,C2 type of pressure vessel qualification, to obtain export certification and qualification ,we have advanced equipment including automatic submerged arc welding machine, large underwater plasma cutting machine, rolling machine and other forming large tank. Testing equipment including ultrasonic flaw detector, X-ray detectors, magnetic detectors, equipped with heat treatment and testing rooms to make sure quality of products.All products must be get inspection authorization from third party before shipment. Manufacture and design code could be GB150 OR ASME.
