60000 Liters Tanker Truck Trailer Tri Axle Propane LPG Gas Tank Semi Trailer 30 Tons
60000liters Tri-Axle Propane LPG Gas Transport Tank Semi Trailer 30tons for Philippines Market
Features:
1) lpg tank semi trailer capacity
30,000liters, 35,000liters, 40,000liters, 50,000liters, 53,000liters, 56,000liters, 59,520liters.
2) lpg tank semi trailer material
Q345R Q370R SA516
3) lpg tank semi trailers production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
4) Main parts of lpg tank semi trailer
Liquid phase, vapor phase, floating ball level gauge, magnetic level gauge, safety valves, cut-off valves, needle valves, pressure gauge, thermometer, fire extinguisher, 2" or 3" king pin.
5) SONCAP, BV, SGS ASME certificate for Nigeria market
Technical parameter for LPG TANK SEMI TRAILER
| 59.52 CBM LPG Tank Semi Trailer | |
| Volume of Tank (cbm) | 59.52 |
| Tare Weight (kg) | 15000 |
| Capacity (kg) | 25000 |
| Thickness of Shell (mm) | 11.5 |
| Thickness of Endplate (mm) | 11.5 |
| Nominal Diameter (mm) | 2475 |
| Wheel Base(mm) | 7230+1310+1310 |
| External Dimensions (mm) (length×width×height) | 13000*2500*3990 |
| Tank Dimensions(mm) (Diameter×thickness×length) | 2475*11.5*12837 |
| Material of Tank | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas (propane) |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1 |
| Medium Density(kg/ cbm) | 420 |
| Axle | 3*13T BPW |
| Tire | 12R22.5 Tubeless tire ,12 with one spare tire |
| Landing leg | JOST Brand |
| King Pin | JOST Brand |
|
Accessories: Safety valve, Liquid valve 2", Vapor valve 2", Level gauge, Pressure gauge, Thermometer, Emergency Cut-off valve, Tool boxes, Fire extinguishers. |
|

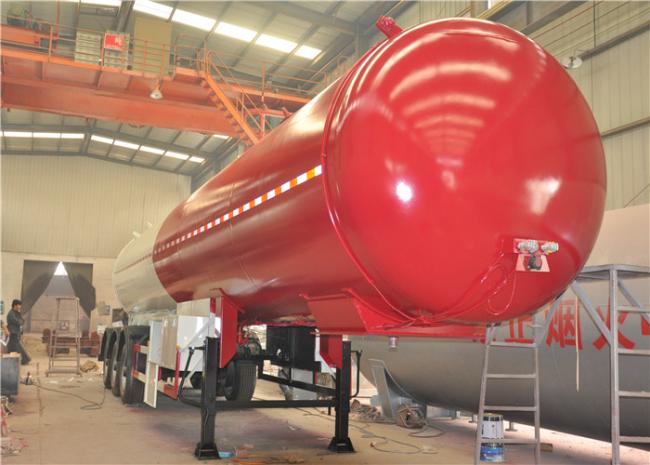

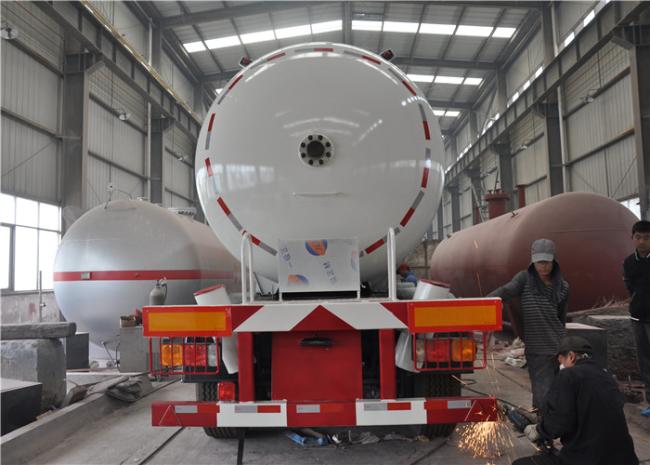

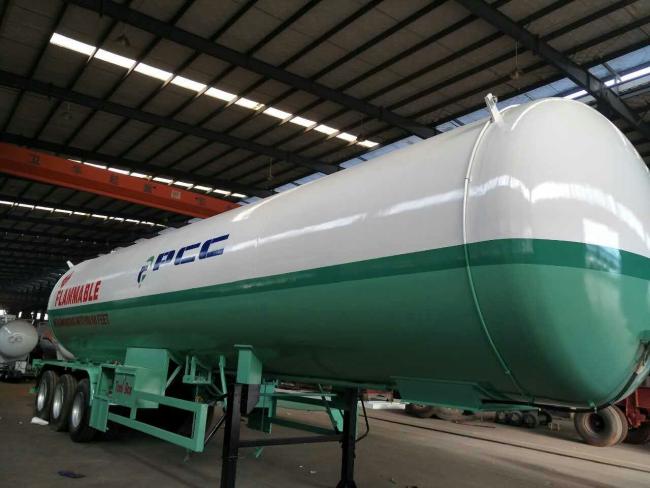

Detailed pics for lpg tank semi trailer

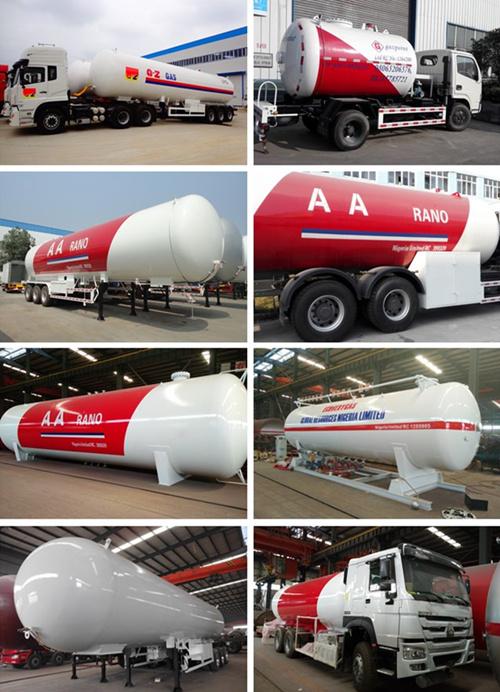

3 axle 36000L 36M3 36cbm LPG tank trailer, LPG gas tanker semi trailer exported to Vietnam.
Other LPG TANK series we export:
