25 Tons LPG Bullet Tanks 50 CBM Color Custom For Gas Cylinder Refilling

Price Negotiable

Price: 18500-35000USD/UNIT

MOQ: 1Unit

Delivery Time: 25-30 days after receiving the deposit

Product Description

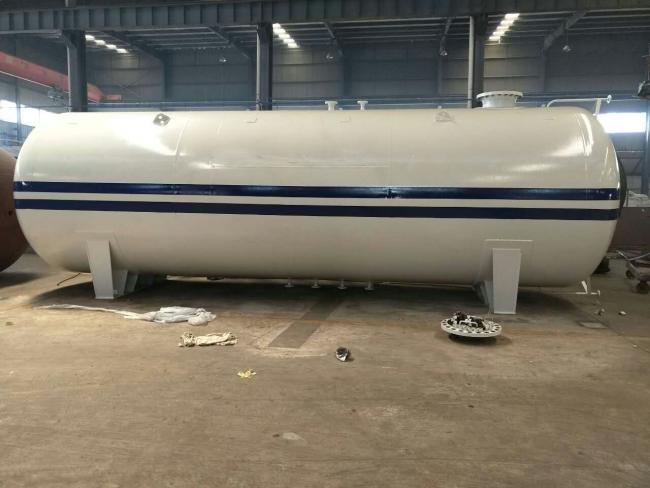

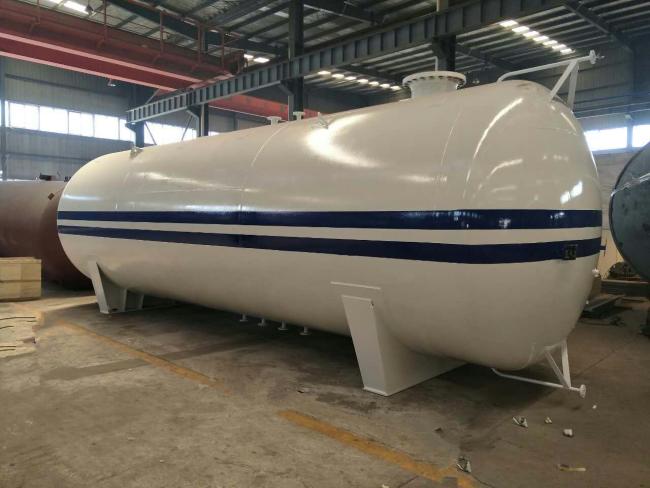

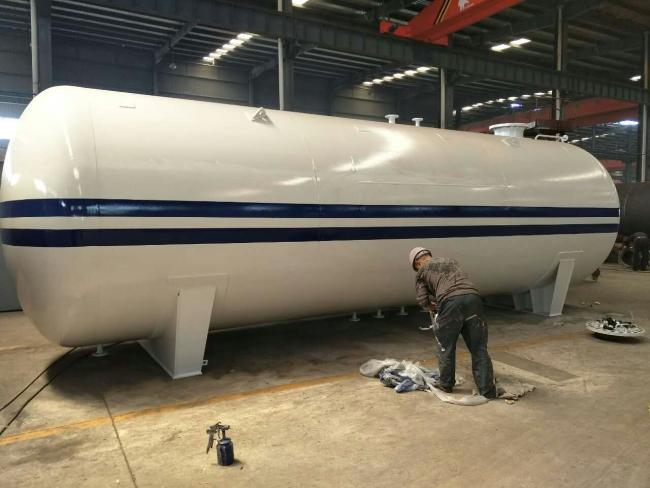

25tons lpg gas bullet tank 50cbm for gas cylinder refilling usage

Technique Parameter for 25tons lpg gas tank

Item No.	Parameters
Volume of Tank (cbm)	50
Tare Weight (kg)	10640 kg
Filling Capacity (kg)	19950 kg
Thickness of Shell (mm)	14
Thickness of Endplate (mm)	16
tank cylinder diameter (mm)	2700
External Dimensions (mm) (length×width×height)	918227283318
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas
Design Pressure	1.77MPa ( 256.65 Psi)
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm

accessory list for 50,000l lpg gas tank

Accessories List
Parts No	Size	Parts Name	Model No.	Quantity	Unit
a	DN50	Cut-off Valve for Drain Outlet	J41N-2.5-50	1	set
b	DN50	Cut-off Valve for Liquid Phase Outlet	J41N-2.5-50	1	set
c1	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
c2	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
d	DN50	Cut-off Valve for Liquid Inlet	J41N-2.5-50	1	set
i	DN50	Cut-off Valve for Air Drain Outlet	J41N-2.5-50	1	set
h	DN80	Cut-off Valve for Safety Valve	J41N-2.5-80	1	set
f1	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
f2	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
e	M33*2	Thermometer	WTQ-280	1	set
g	M20*1.5	Pressure Gauge	Y-100T	1	set
/	/	Magnetic Level Gauge	HG21584-95	1	set
/	DN80	Safety Valve	A42F-25	1	set
	M20×1.5	Needle Valve	J24W-320-DN6	1	set
Total Quantity				14
