Customized 20000L LPG Storage Tanks CSC2018005 10 Tons LPG Gas Refilling Plant
Factory Customized 20, 000L LPG Skid 10tons Tank Station LPG Refilling Gas Plant for Nigeria
1) lpg tank skid capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2) lpg tank skid material
Q345R Q370R SA516 16MnR
3) lpg tank skid production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
4) Main parts of lpg tank skid
pump, motor, compressor, cut-off valve, safety valve, alarm system, lpg dispenser or filling scale, water spraying system or sunshade, magnetic level gauge (rochester gauge), rotor gauge, temperature gauge, pressure gauge, lpg skid control panel, mass flow meter...
Technical parameters for lpg tank skid
| Item No. | Parameters |
| Tare Weight (kg) | 5050 kg |
| Filling Capacity (kg) | 10000 kg |
| Thickness of Shell (mm) | 12 |
| Thickness of Endplate (mm) | 12 |
| tank cylinder diameter (mm) | 2100 |
|
External Dimensions (mm) (length×width×height) |
6154*2124*2714 |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas |
| Design Pressure | 1.77MPa ( 256.65 Psi) |
| Corrosion Allowance | 1 mm |
| Medium Density | 550 kg/ cbm |
Accessory list for lpg tank skid
| Item | Model Number | Quantity |
| LPG Tanker | 20cbm/ 20liters | 1 piece |
| Electronic cylinder Filling machine | BCS-150 | 1 unit |
| Filling Pump | YQB15-5 | 1 Piece |
| Motor | 5.5KW | 1 Piece |
| Dispenser | LPG Dispenser RT-LPG112B | 1 Piece |
| Pipes | / | 1 sets |
| Cut-off Valve | J41N-40 DN50 | 8 Pieces |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Ball floating level gauge | UZFAL-2.5RF2640-0.50 | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Flange | 2.5MPaDN15 | 14 Pieces |

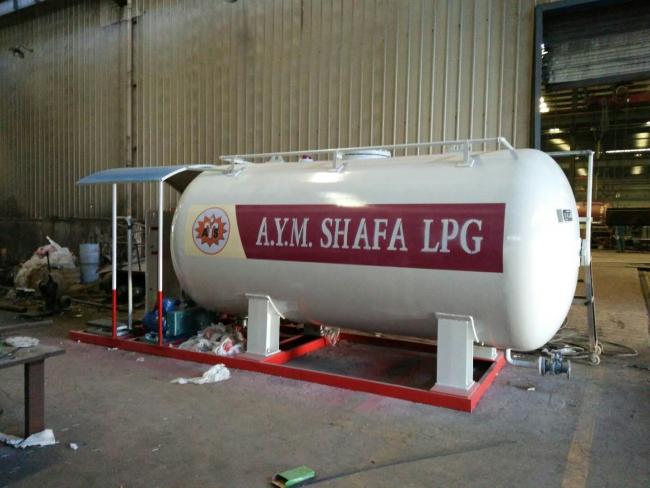

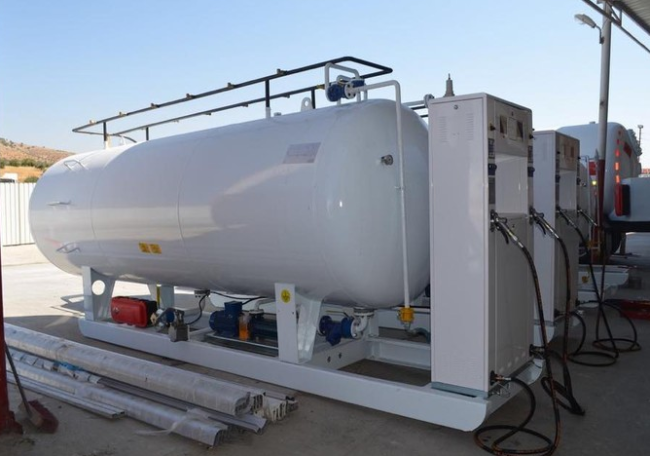

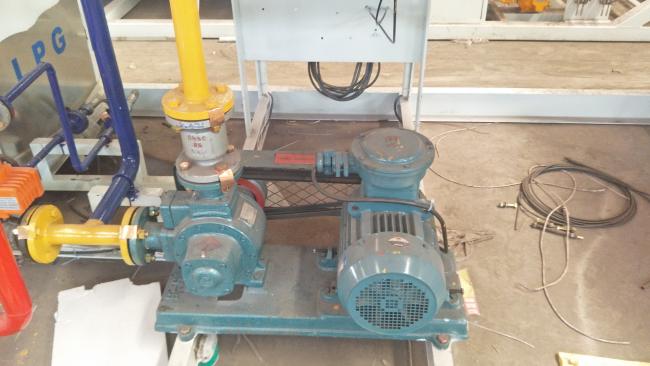

Detailed pics for lpg tank skid
Company information:
1. . is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
