Road Heavy Rescue Tow Trucks 8X4 Diesel Fuel Type / Manual Transmission Type
Price:
Could be negotiated
MOQ:
1 units
Delivery Time:
35-40 work days after receiving the deposit
Product Description
High quality 8X4 diesel fuel type and manual transmission type Road Wrecker towing Truck, Tow Truck
Brand: SINOTRUK HOWO
Other horse power for option: 266hp, 290hp, 336hp, 371hp
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Loading capacity:25tons
Other loading capacity for optional: 5t, 8t, 10t, 12t, 15t, 20t, 25t, 30t
Driving type: 8x* left hand drive / right hand drive
Ohter type: 4x2, 6x4, 8x4 ,light duty, heavy duty
Heavy duty SINOTRUK HOWO 8x4 371hp 40T wrecker truck parameters:
| CHASSIS | |||||
| Cabin | standard cabin, with air conditioner, allowed for 2~3 persons | ||||
| No load(kg) | Curb Weight | 13070 | |||
| Front axle | 7000*2 | ||||
| Rear axle | 18000*2 | ||||
| Full load | Max. Overall Weight | 31000 | |||
| Overall Dimensions(mm) | Length | 11430 | |||
| Width | 2500 | ||||
| Height | 3270 | ||||
| Wheel base(mm) | 1800+4600+1350 | ||||
| Track(mm) | 2022/1830 | ||||
| F/R Suspension(mm) | 1500/2200 | ||||
| A/D Angle(°) | 16/18 | ||||
| Driving Model | 8*4 | ||||
| Tyre | 12R22.5 | ||||
| Max. Speed(km/h) | 102 | ||||
| Max. Grade-ability(%) | 30 | ||||
| Min. Turning Diameter(m) | 22.6 | ||||
| Min. Ground clearance(mm) | 310 | ||||
| Engine | Model | WD615.47 | |||
| Horsepower(HP) | 371 | ||||
| Displacement(mL) | 9726 | ||||
| Transmission | 10 forwards&2 reverses | ||||
| WRECKER EQUIPMENT | |||||
| Max. Towing Weight(kg) | 43000 | ||||
| Lifting System | Max. Lifting Weight(kg) | 25000 | |||
| Max. Lifting Weight under all extension(kg) | 8300 | ||||
| Effective Length of Corbeling Arm(mm) | 3650 | ||||
| Extend-retract of Corbeling Arm(mm) | 1750 | ||||
| Slope Angle of Corbeling Arm(°) | 7 | ||||
| Folding angle under no load(°) | -7~92 | ||||
| Folding angle under load(°) | -7~16 | ||||
| Max. Ground Distance(mm) | 900 | ||||
| Landing Strength(KN) | 80*2 | ||||
| Hydraulic Hose | Tianhe,Guangdong Province | ||||
| Hydraulic Joint | Germany technology and exported Sealing rings | ||||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||
| Hoisting System | Max. Hoisting Weight(kg) | 30000 |
| Max. Hoisting Weight under all extension when Hoisting Angle is 30°(kg) | 7800 | |
| Max. Hoisting Weight underno extension when Hoisting Angle is 30°(kg) | 18000 | |
| Extension Distance of Oil Cylinder(mm) | 6000 | |
| Length of Crane Arm(mm) | 5880 | |
| Section No. Of Crane Arm | 3 | |
| Max. Hoisting Height(mm) | 12300 | |
| Max. Operation Diameter (mm) | 10710 | |
| Max. Hoisting Angle(°) | 0~60 | |
| Rotation angle(°) | 360 | |
| Winch | No. | 2 |
| Curb Traction/Per(KN) | 150 | |
| DN of Steel Rope(mm) | Φ20 | |
| Length of Steel Rope(m) | 40*2 | |
| Min. Line Speed(m/min) | 5 | |
| Front Outrigger Type | “H” type | |
| Rear Outrigger Type | “L” type | |
| Front Outrigger Span(mm) | 6600 | |
| Rear Outrigger Span(mm) | 4080 | |
| Span between front and rearOutriggers | 5550 | |
| Jump-start cables | 12~24 Volts | |
| Electric system | Rear working lamp(stop,tail,turning) | 3 |
| Revolving beacon | 1 | |
| Lamps for license plate | 1 set | |
| Pneumatic hoses | 1 set | |

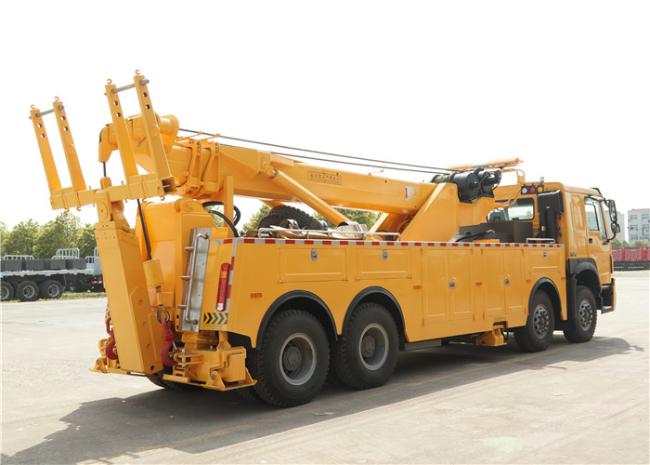

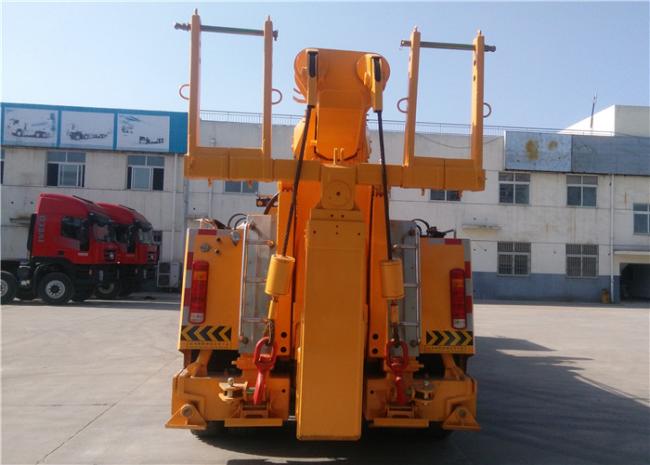

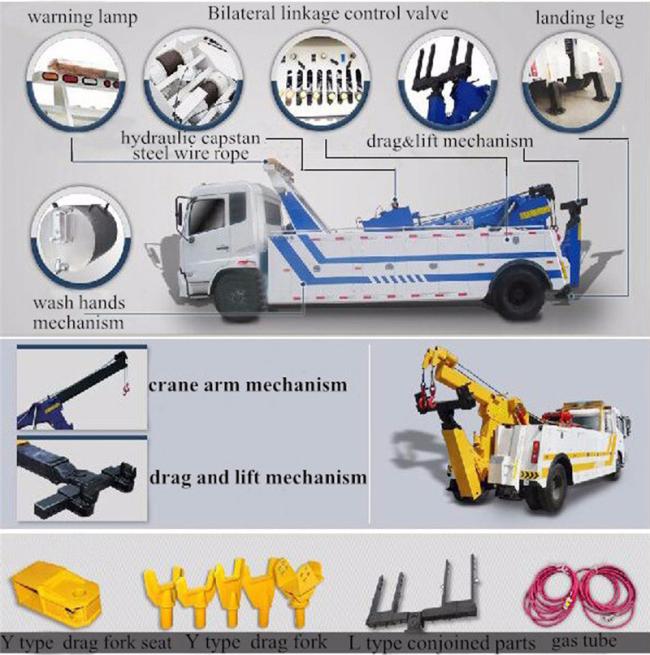

Heavy duty SINOTRUK HOWO 8x4 371hp 50T wrecker tow truck detailed images:

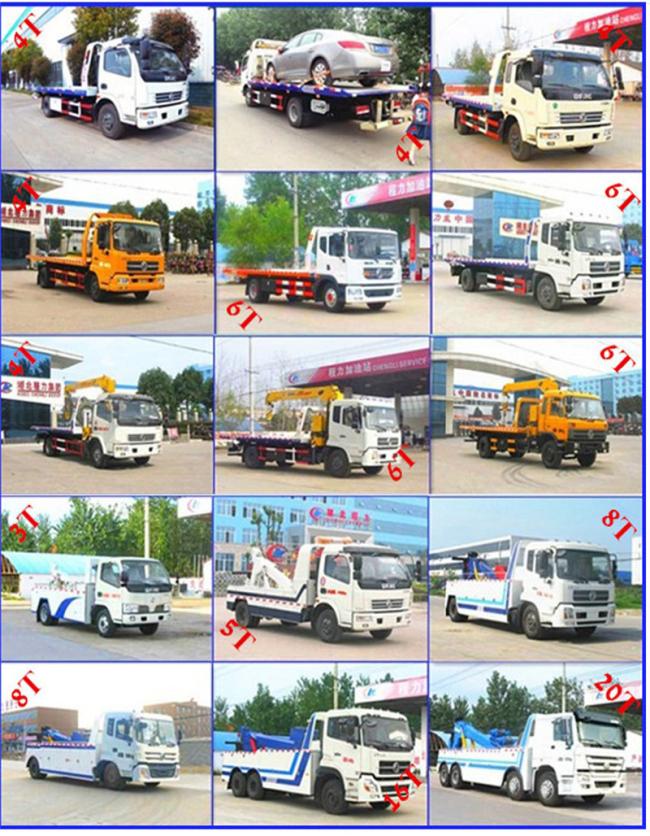

Other kind of wrecker truck:
