The liquid bitumen transport trailer is also called liquid asphalt transportation trailer, bitumen transport semi trailer, black tar truck trailer, asphalt transport truck trailer,etc.The asphalt transport truck trailer is mainly used to transport hot asphalt and keep heating the asphalt .
The black bitumen transport tank trailer is equipped with insulated asphalt tank, trailer axle, trailer landing gear leg, antistatic device, discharge valve, pipelinesystem, 2pcs lockable discharge hosecarrier on both side, spare tire carrier, top access ladder, anti-slip walkway, handrail, manhole,
fire extinguisher, side lamps and reflective stickers,ABS, etc. Usually the asphalt transport tank
trailer is with burner or other heating device to heat the asphalt.
The liquid asphalt tanker trailer capacity we manufacture is from 20000 liters to 62000 liters. We have double axles liquid asphalt semi trailer and tri-axle insulated liquid asphalt tank trailer . Also, the asphalt tank can be single tank or devided into compartments, the inner of the trailer are mounted with baffles.The tank can be Q235 carbon steel, stainless steel , aluminium alloy, plastic according to the loading material.
Top quality 30t bitumen transport semi trailer specifications:
| GENERAL DESCRIPTION | |
| Overall Dimension(mm) | 12000x2500x3850mm |
| GVW./Kerb Wt | 40000Kg/10800Kg. |
| TANK BODY | |
| Tank Shape | Cylindrical |
| Tank Volume | 40000ltrs |
| Tank Material | 5mm Q235 carbon steel |
| Insulated Material | 8mm rock wool |
| Necessary Accessories |
Top access steel ladder, anti-slip walkway and foldable handrail; Spare wheel carriers, anti-static device, 2pcs of fire extinguishers, 2pcs of lockable discharge hose carrier on both sides and reflective tickers etc. |
| RUNNING GEAR | |
| Axles | 3x13ton BPW |
| Landing Legs | FUWA brand,28tons per pair |
| Suspension System | Steel spring suspension |
| King Pin | 2inch or 3.5inch |
| Tyre No.&Spec. | 12 tires,12.00R20 Tubeless tire |
| RUNNING GEAR | |
| Heating Type | Heating pipe |
| MUDGUARDS | |
| Heavy duty mudguard rubber mud-flaps | |
| BUMPERS | |
| Side bumpers mounted between landing gear and first axle | |
| ELECTRIC SYSTEM | |
| 24V lighting system,electrical socket for lighting,rear lamp with parking,direction,fog,reverse, 4 side lights | |

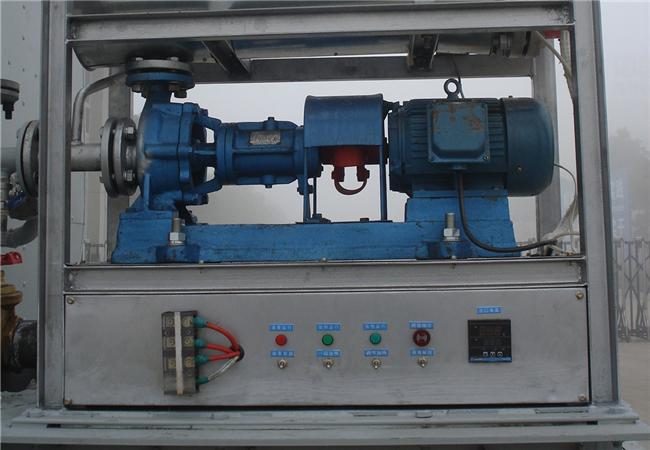

Other detailed pictures for reference:
We, Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd, were established in 2002. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.
We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 2000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.
As a professional manufacturer of liquid bitumen tanker semi trailer, we have oil tank semi trailer, chemical tank semi trailer, dump semi trailer, lpg gas tanker semi trailer, container semi trailer, bulk cement tank semi trailer,etc.
Our services:
1. All our tanker semi trailer truck can be customized according to your requirement.
2.All of our trucks, trailers are enjoying one year quality guarantee.
3. We provide technical and installation support.
4. All your inqueries will be replied within 24hours.
