Press locked steel grating
Material:Q235,ASTM A36
Features:
Press locked steel grating covers the ordinary steel plate of high strength, anti-corrosion, free maintenance etc, and the unique combination of uniform precision, structure of portable style and elegant, natural harmony, elegant features.

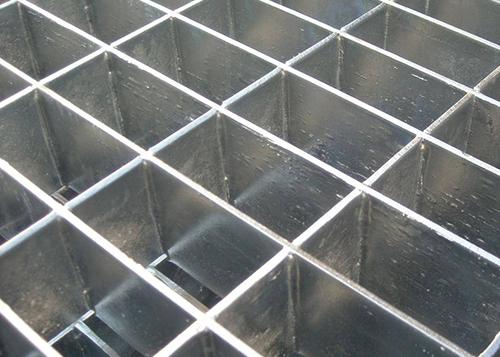

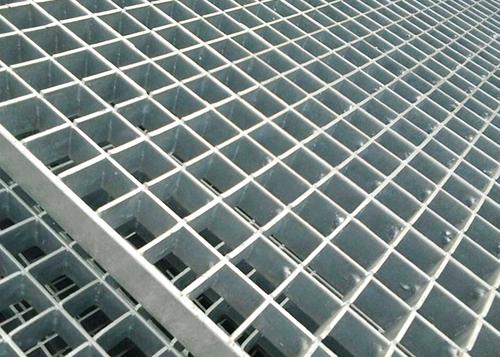

Press locked steel grating is manufactured by notching the load bearing bars and then interlocking with cross bars at very high pressure.
Press locked steel grating is best suitable for material handling industry, industrial
flooring, shelving, pallet racks and for mezzanine floor decking applications.

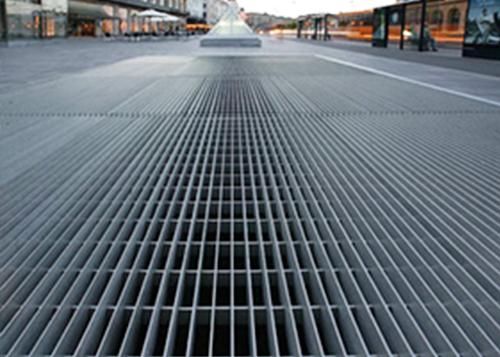

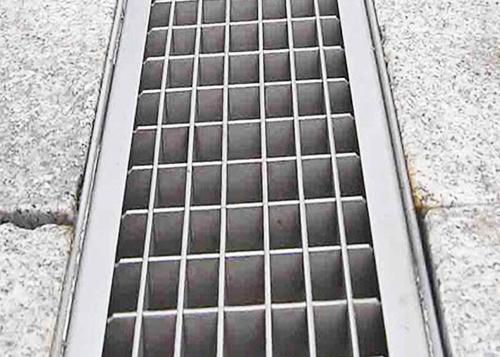

It is also extensively used for various architectural walkways/ light duty trench covers.
| Common specification of Press locked Steel grating | |
| Material Standard |
ASTM A36, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Load bar depth | 25, 30, 32, 35, 38, 40, 45, 50, 60 up to 150 mm |
| Load bar thickness | 3, 4 5, & 6 mm |
| Cross bar depth | 10, 20, 25, 30 & 40 |
| Cross bar thickness | 3, 4 & 5 mm |
| Load bar / cross bar type | plain or serrated |
